Cowl: Service and Repair

Under-cowl Panel Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:
- Windshield wiper arms Service and Repair

- Front fender trim, both sides

- Cowl covers Service and Repair

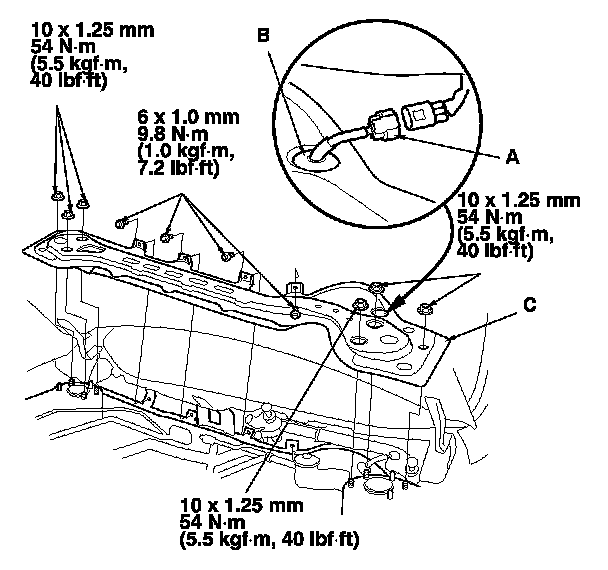

2. Remove the bolts and the nuts, disconnect the connector (A) and remove the grommet (B), then remove the under-cowl panel (C).

3. Install the under-cowl panel in the reverse order of removal.
