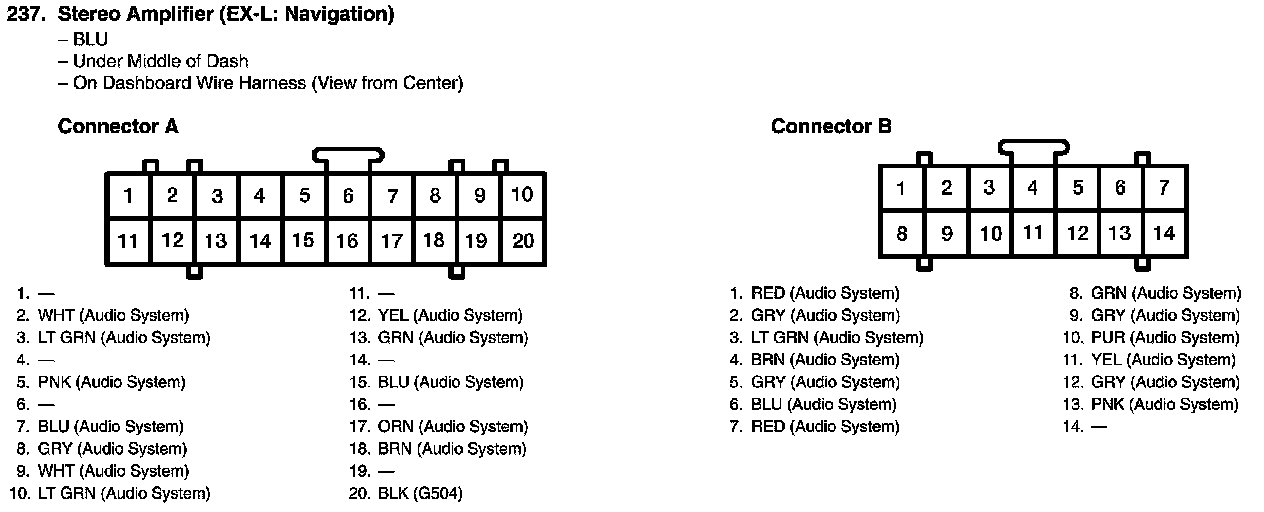

View 237 Stereo Amplifier Connector View (Navigation)
View 237 Stereo Amplifier Connector View (Navigation)
