Air Cleaner Housing: Service and Repair

Air Cleaner Removal/Installation

1. Do the battery terminal disconnection procedure. Procedures

2. Remove the battery.

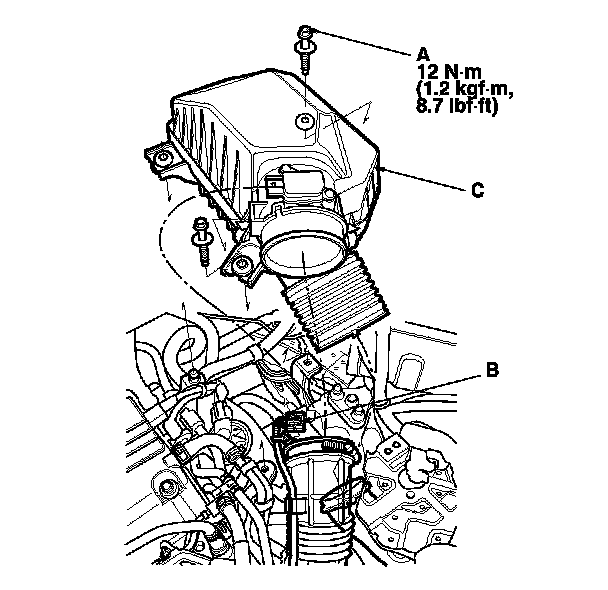

3. Remove the bolts (A).

4. Disconnect the MAF sensor/IAT sensor connector (B).

5. Remove the air cleaner (C).

6. Install the parts in the reverse order of removal.

7. Do the battery terminal reconnection procedure. Procedures
