Turn Signal Lamp: Service and Repair

Side Turn Signal Light Replacement

'09 model

NOTE: Be careful not to damage the fender.

1. Remove the inner fender.

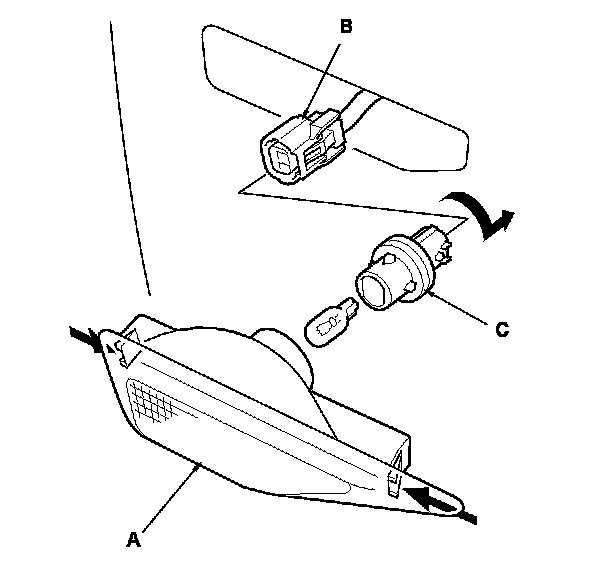

2. Push the retaining spring, and remove the side turn signal light (A).





3. Disconnect the 2P connector (B) from the side turn signal light.

4. Turn the bulb socket (C) 45 ° counterclockwise to remove it from the light.

5. Install the light in the reverse order of removal.
