CRX L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
Reading and Clearing Diagnostic Trouble Codes

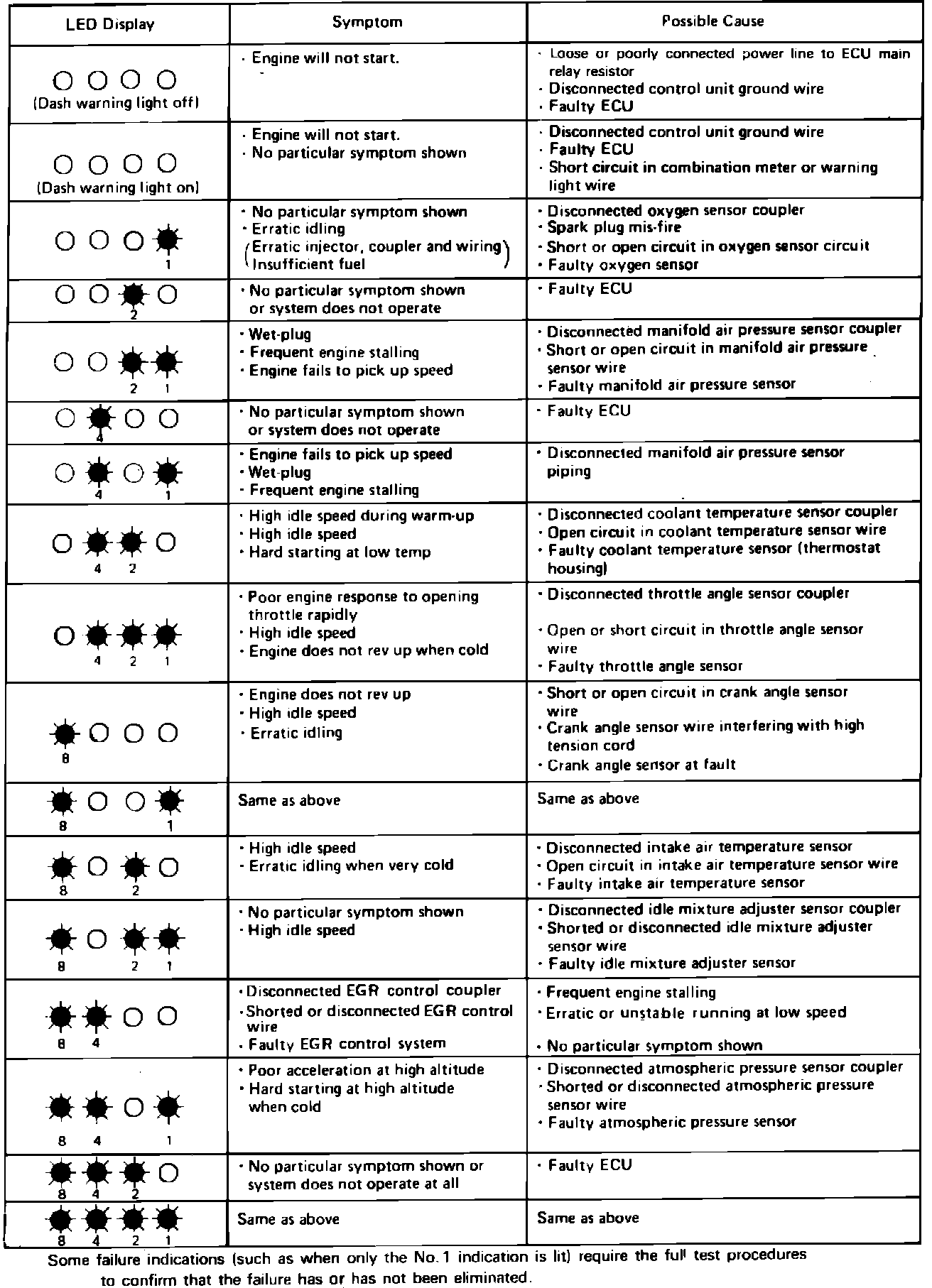

Fig. 46 PGM-FI preliminary self-diagnosis chart:
