Control Box #1 & #2 Component Locations (HF Federal)

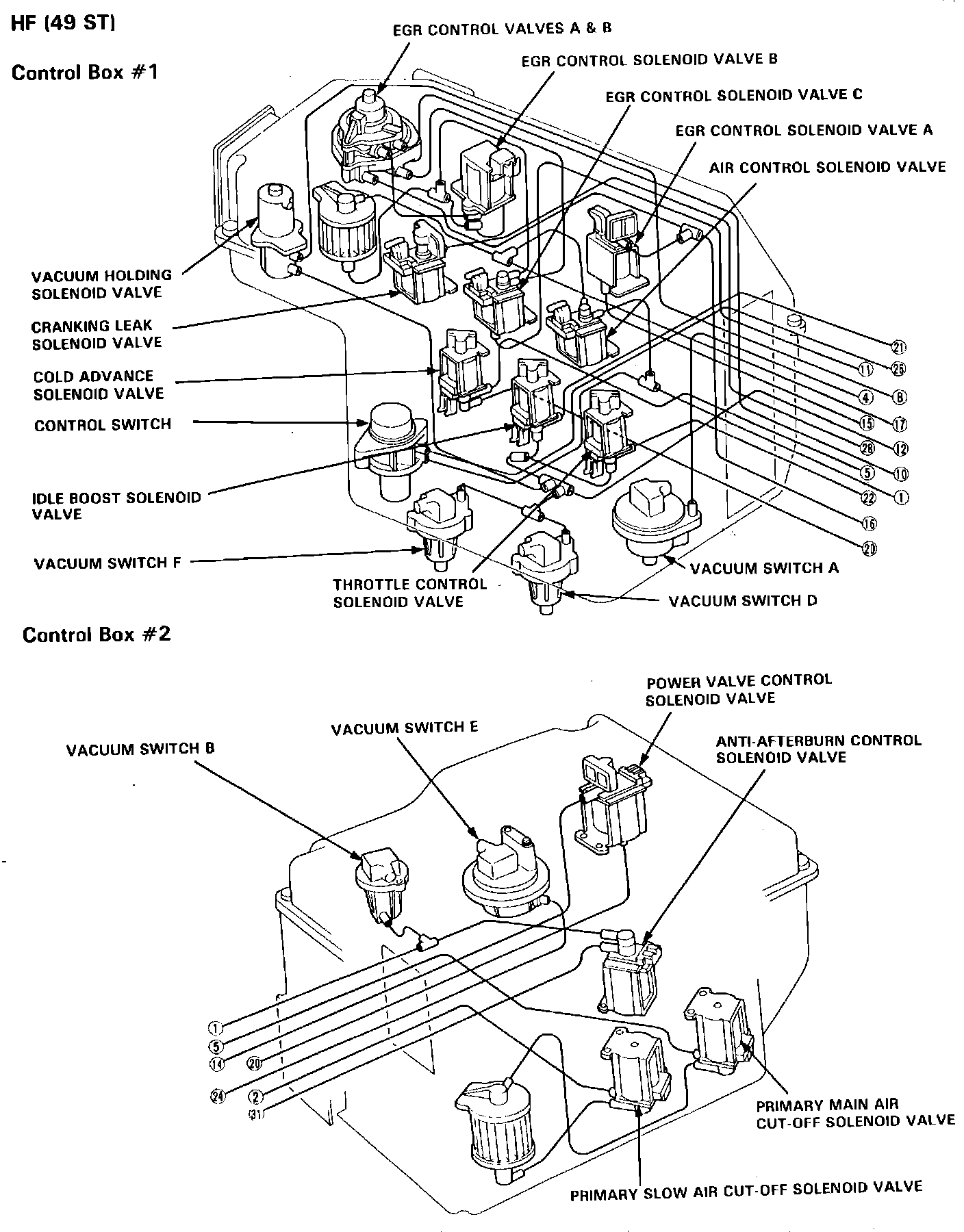

Fig. 391 Control Box #1 & #2 Component Locations (HF FEDERAL):
