Vacuum Routing

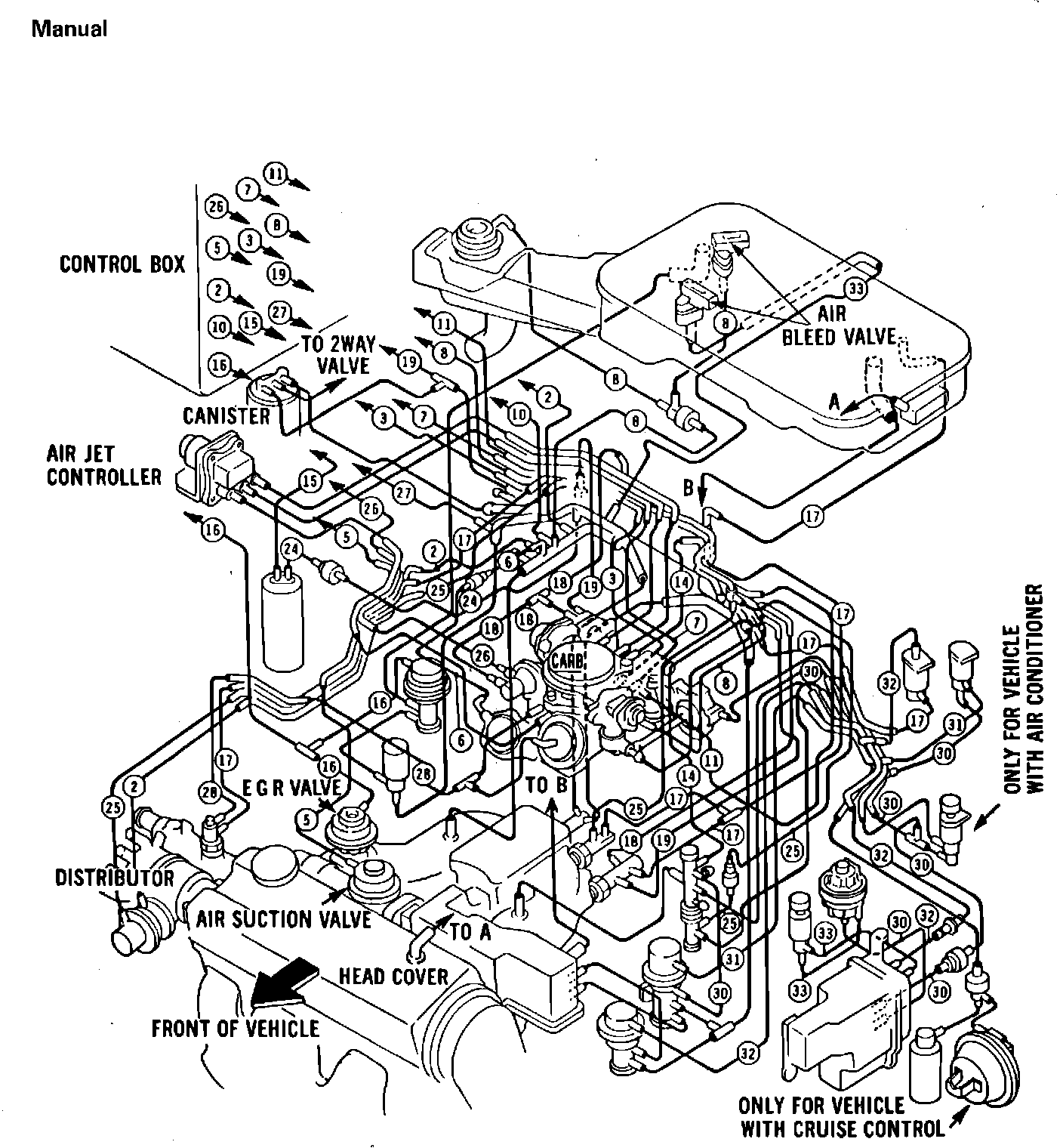

Fig. 60 Vacuum Connections Manual Transmission:

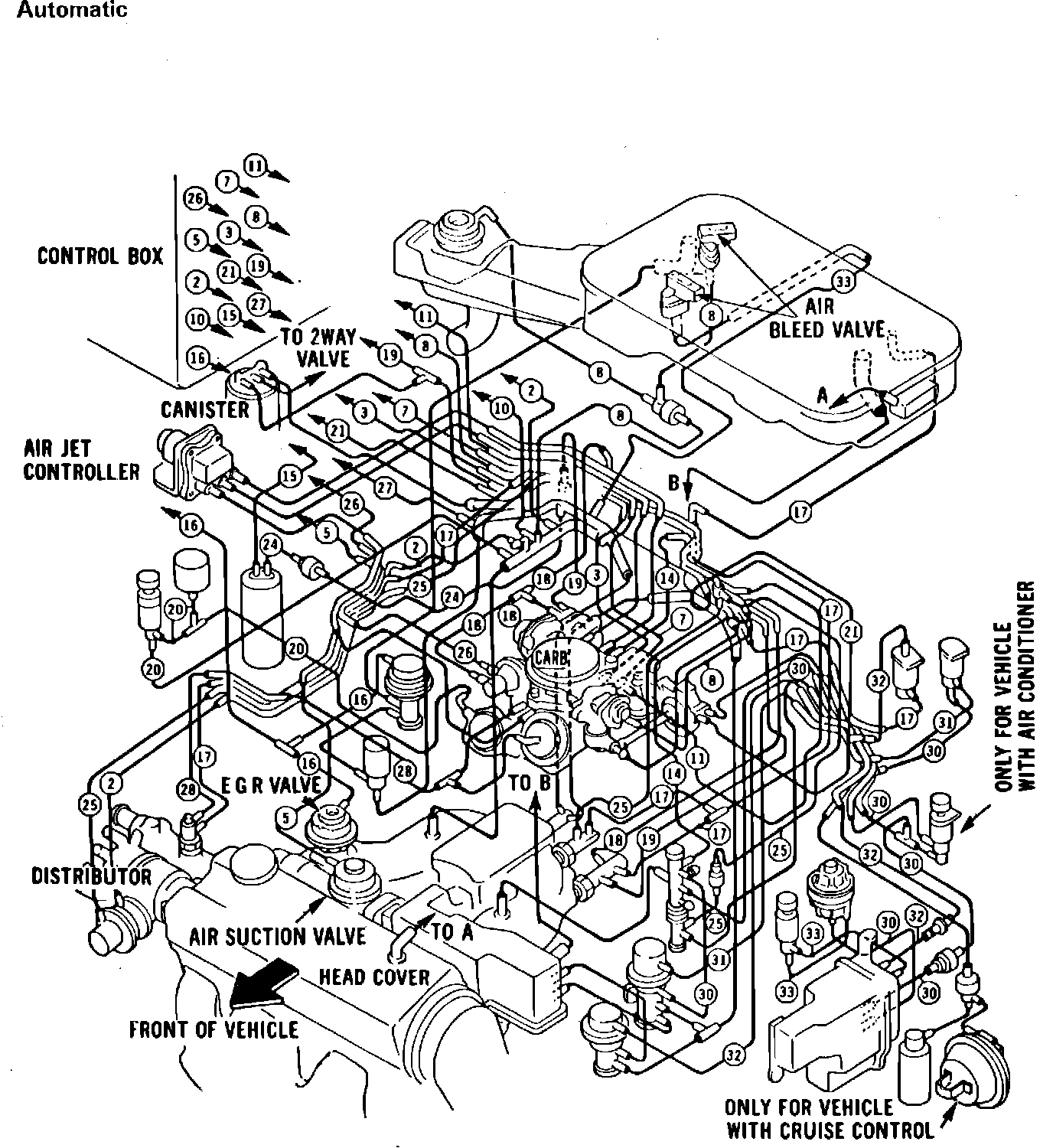

Fig. 62 Vacuum Connections (Automatic Transmission):
