Starter Solenoid: Testing and Inspection

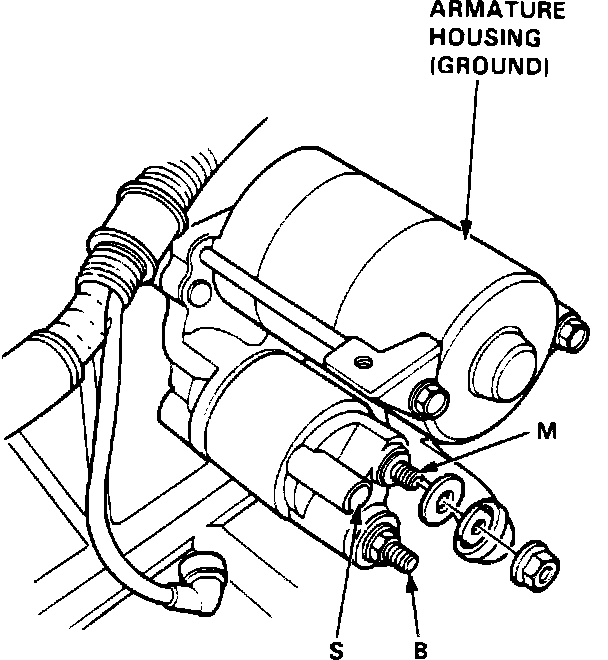

Fig. 6 Starter Motor Terminal Locations. Accord:

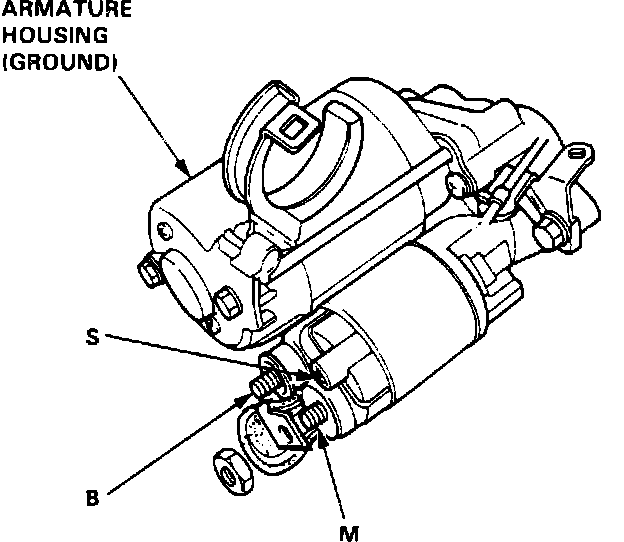

Fig. 7 Starter Motor Terminal Locations. Prelude:

1. Check hold in coil for continuity between S terminal and ground as shown in Fig. 6 on Accord models and Fig. 7 on Prelude models. Continuity should exist.
2. Check pull in coil for continuity between S and M terminals. Continuity should exist.
3. If solenoid does not operate as specified, replace solenoid.
