Wiper Motor Timer: Locations

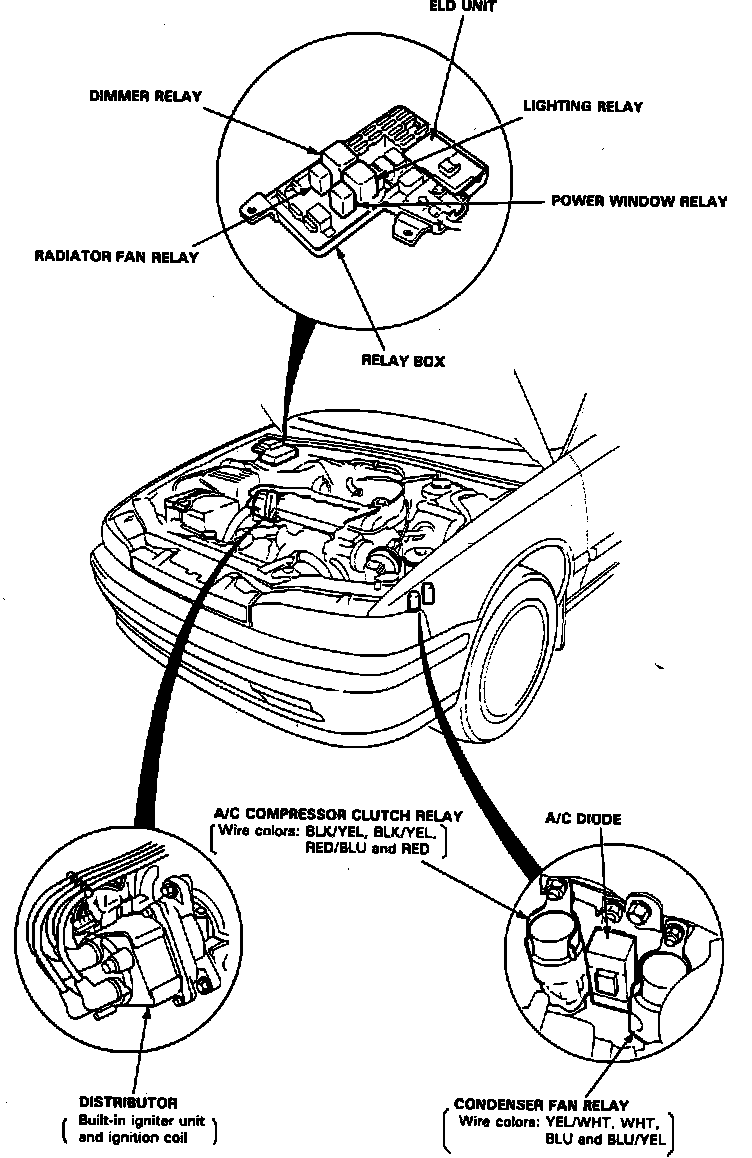

Engine Compartment Components (Part 1 Of 2).:




Engine Compartment Components (Part 1 Of 2).:




RH Side Under Relay Box

Applicable to: 1990 Models
