Pick-Up Sensor Inspection

Pick-up Sensor Inspection

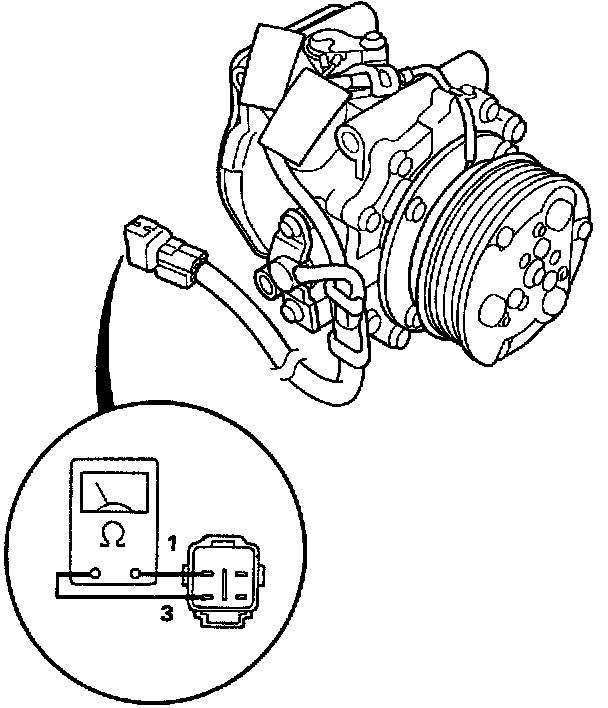

Measure resistance between the 1 and 3 terminals of the compressor connector.

Pick-up Sensor Resistance: 405 ohm (+/- 10%) at 20°C (68°F)

- If no continuity, replace the pick-up sensor.

NOTE: Replace the pick-up sensor and thermal protector as a set.
