A/C Switch & Fan Switch

Fan Switch




1. Disconnect the 6P connector from the fan switch.

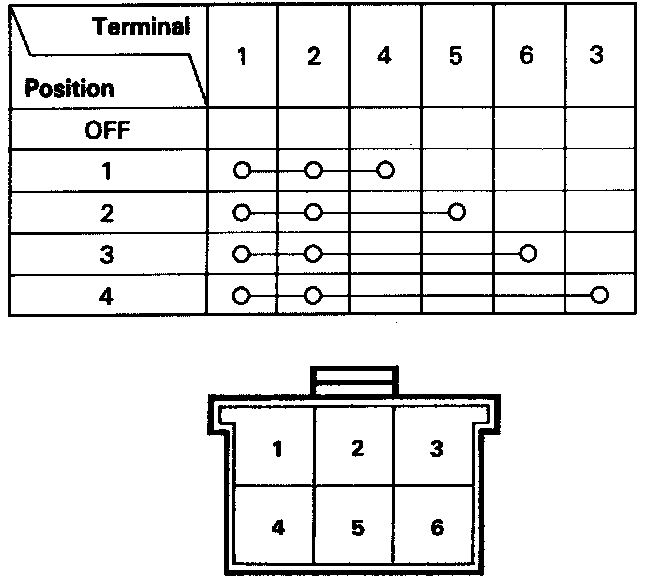

2. Check for continuity between the terminals of the fan switch according to the table.
