Power Locks
>>
Wagon
>>
With Keyless Entry
>>
Ex and Ex-R
Ex and Ex-R

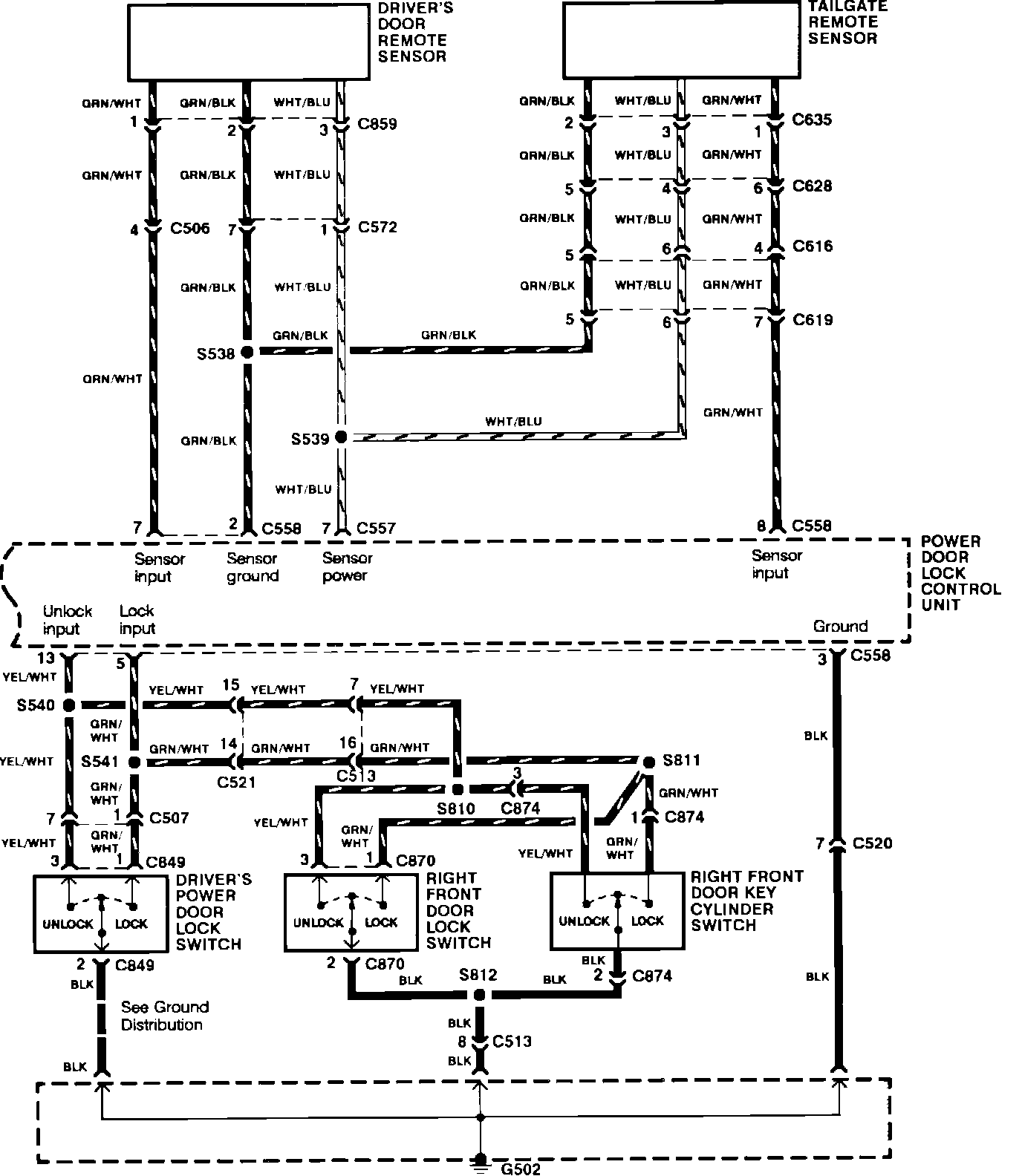

Keyless Entry (EX, And EX-R Wagon):

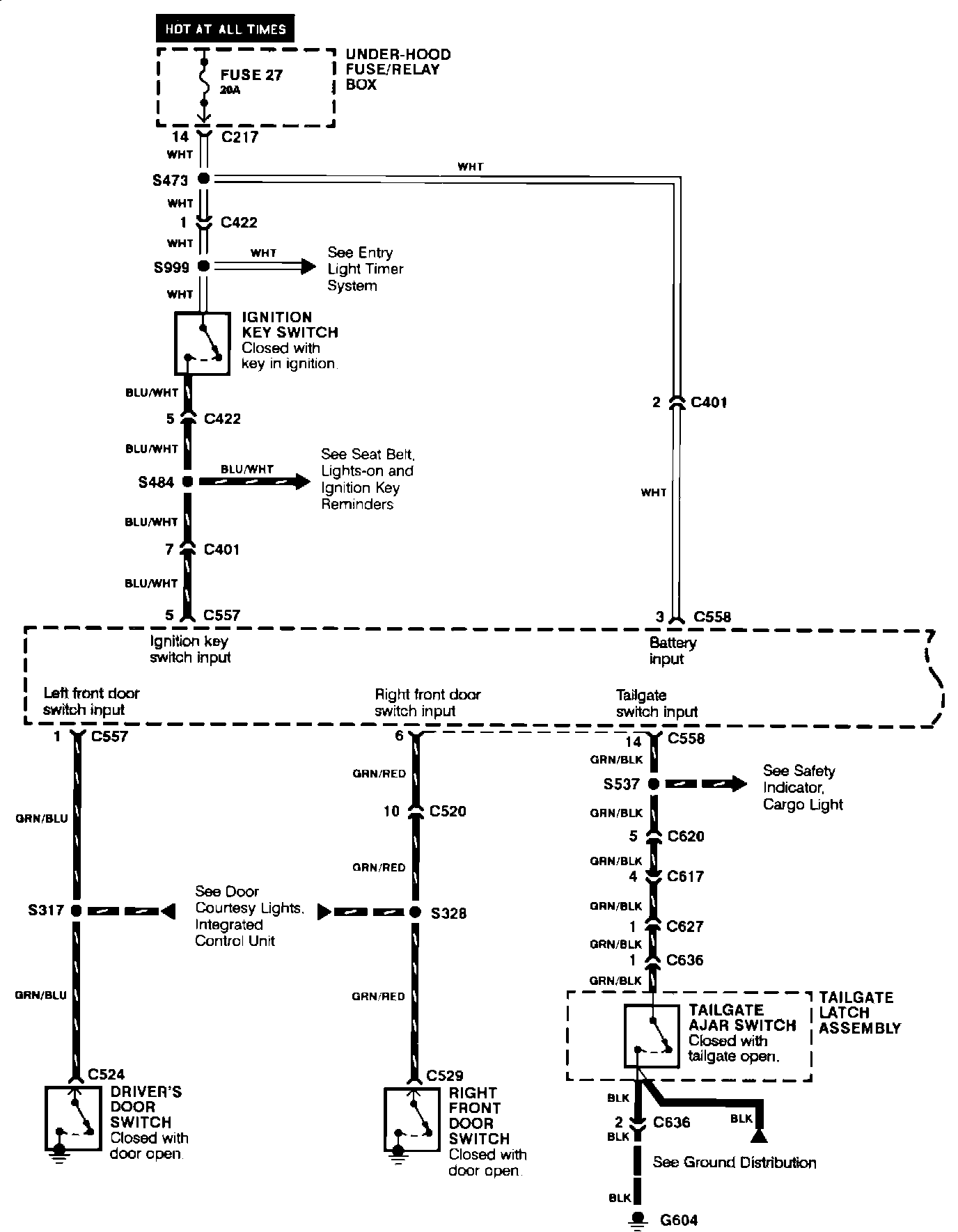

Keyless Entry (EX, And EX-R Wagon):

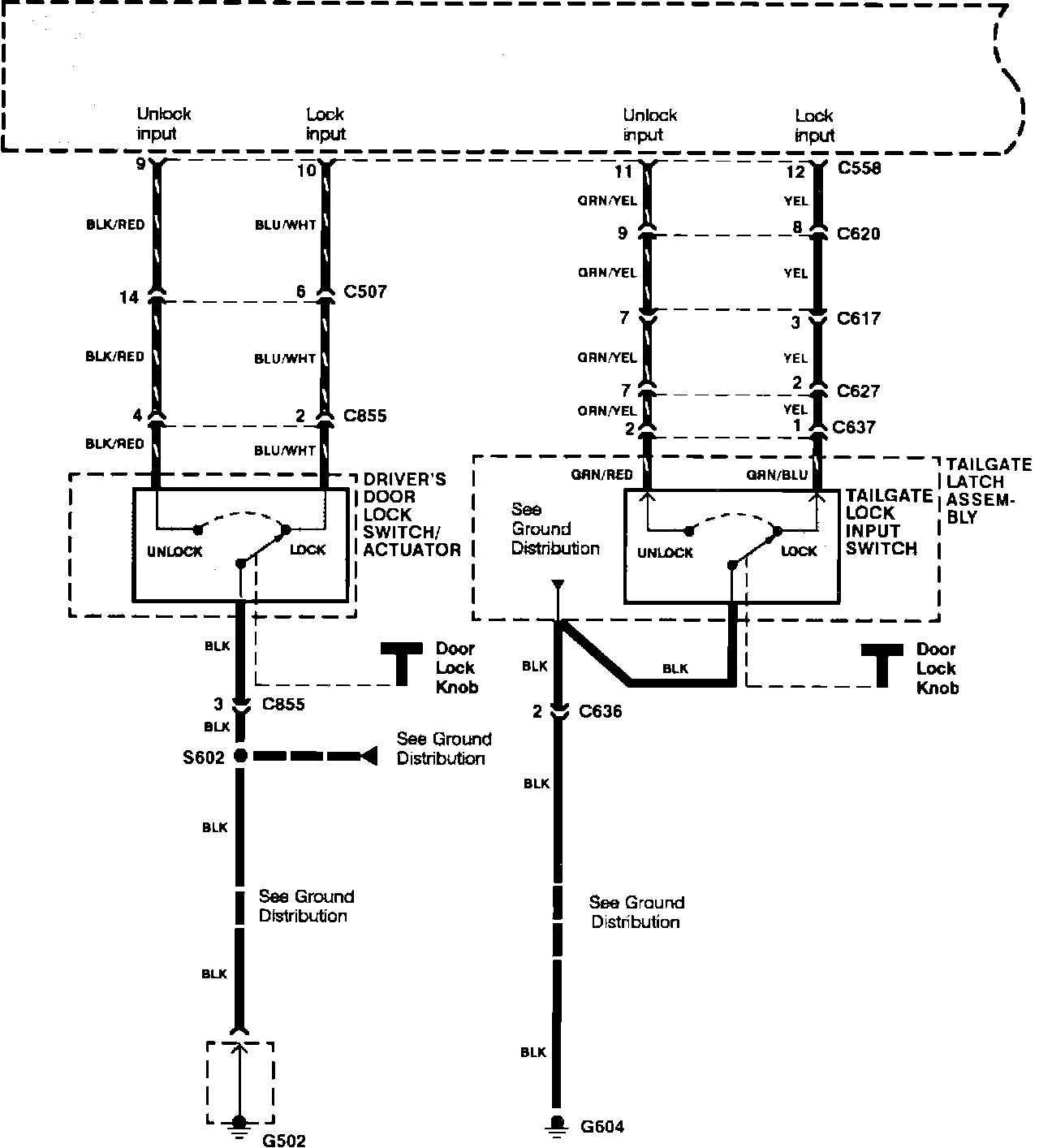

Keyless Entry (EX, And EX-R Wagon):

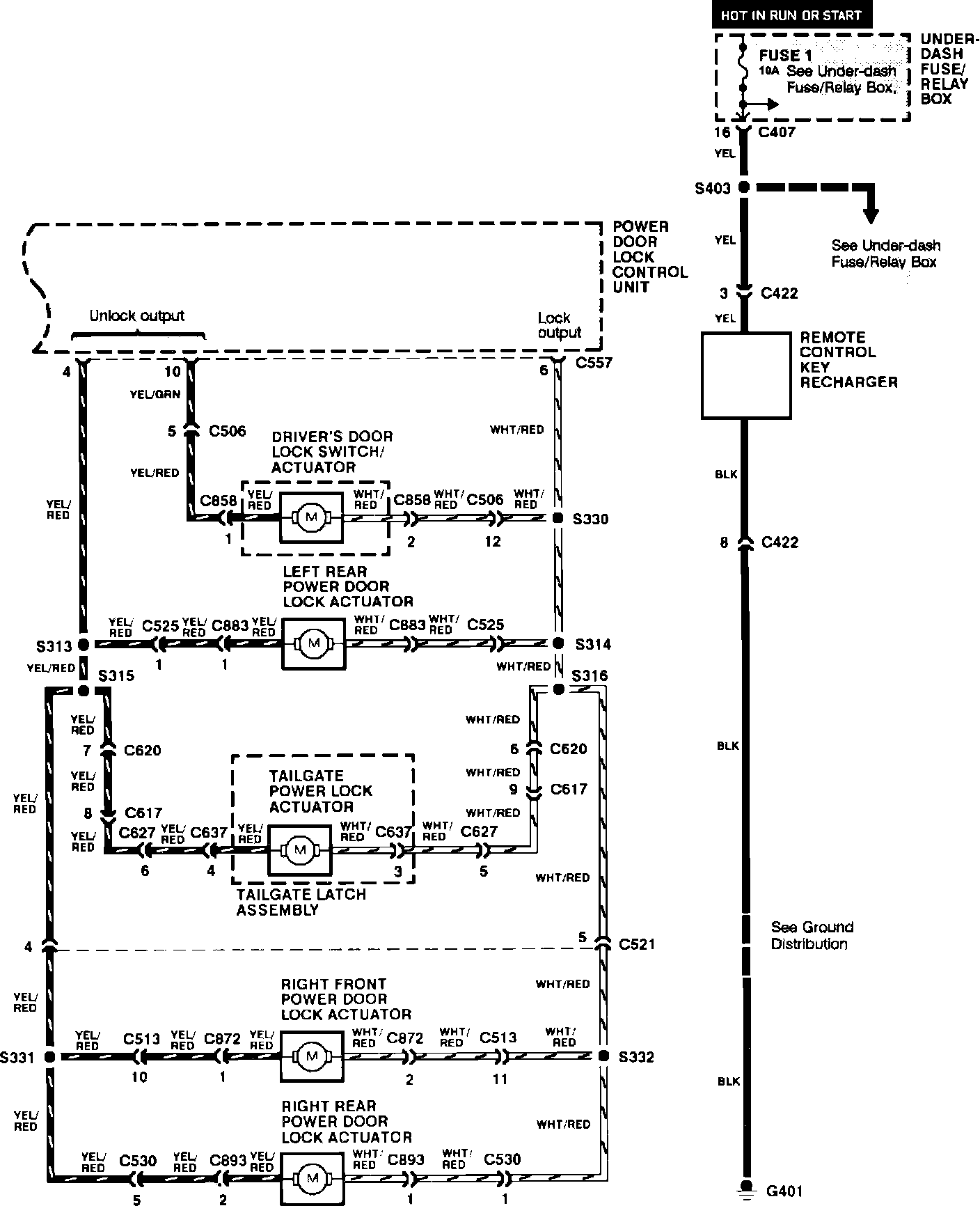

Keyless Entry (EX, And EX-R Wagon):
