Home
>>
Honda
>>
1992
>>
Civic L4-1493cc 1.5L SOHC (VTEC)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Ground Locations
>>
Main Harness
>>
Right Side
>>
Engine Compartment Branch
Engine Compartment Branch

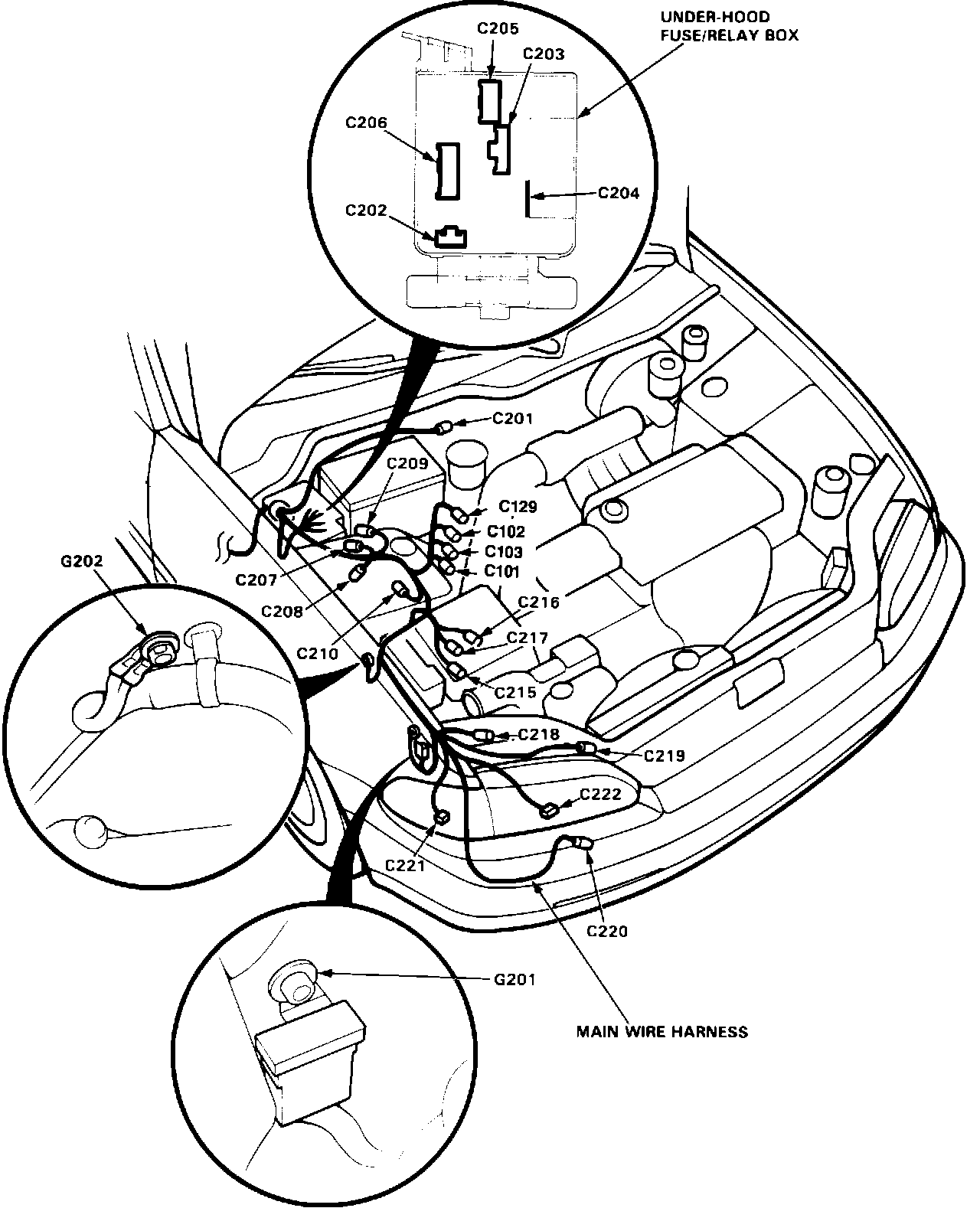

Main Wire Harness (Right Side Of Engine Compartment Branch):
