Piston: Service and Repair

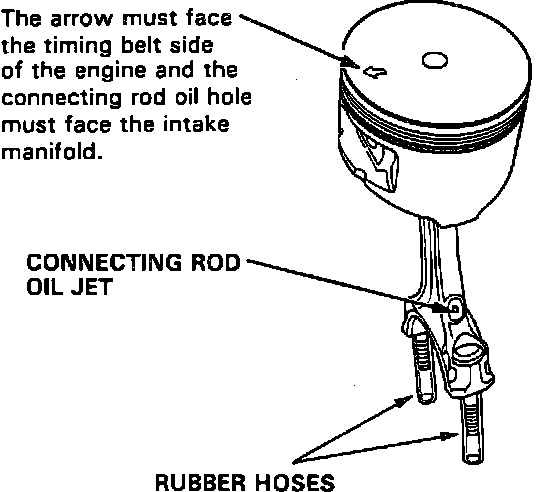

Fig. 41 Piston & Connecting Rod Assembly:




Install piston to rod as shown in Fig. 41.
