Electrical Diagrams

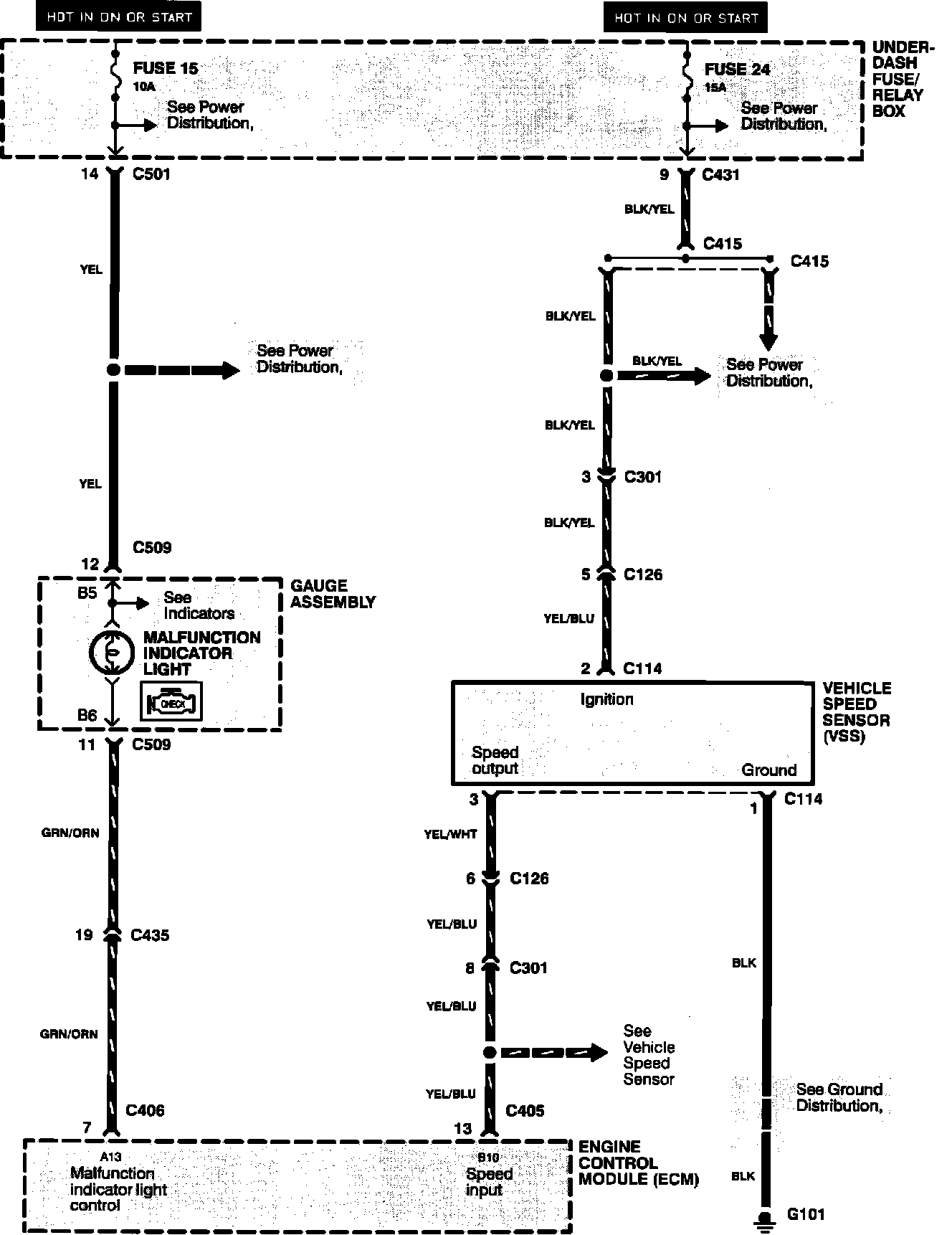

Programmed Fuel Injection System:

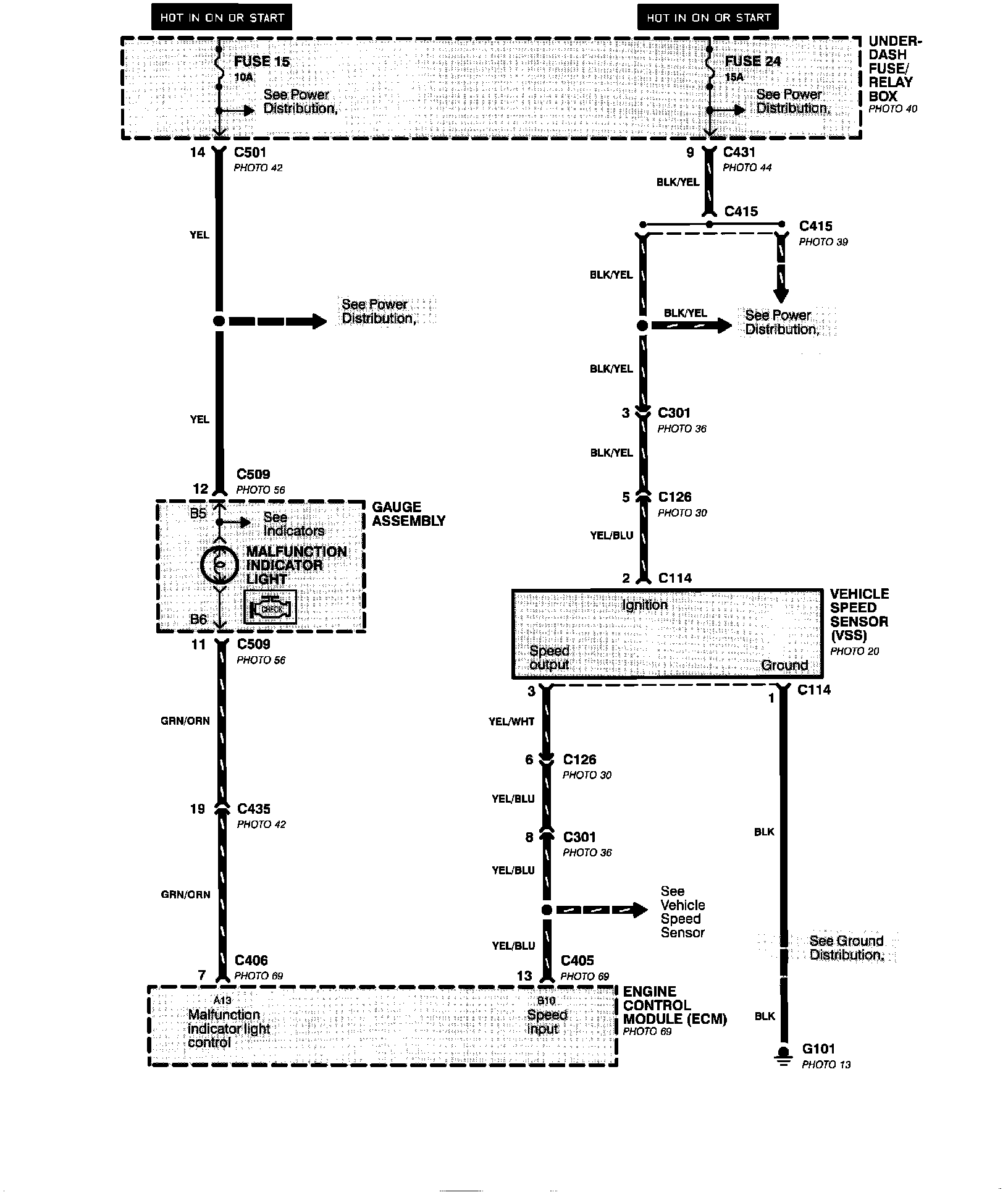

Engine Management (PGM-FI): Malfunction Indicator Light (MIL) And Vehicle Speed Sensor (VSS):
