Prelude L4-2.2L DOHC (VTEC)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Identification
>>
G401 Thru T509
G401 Thru T509

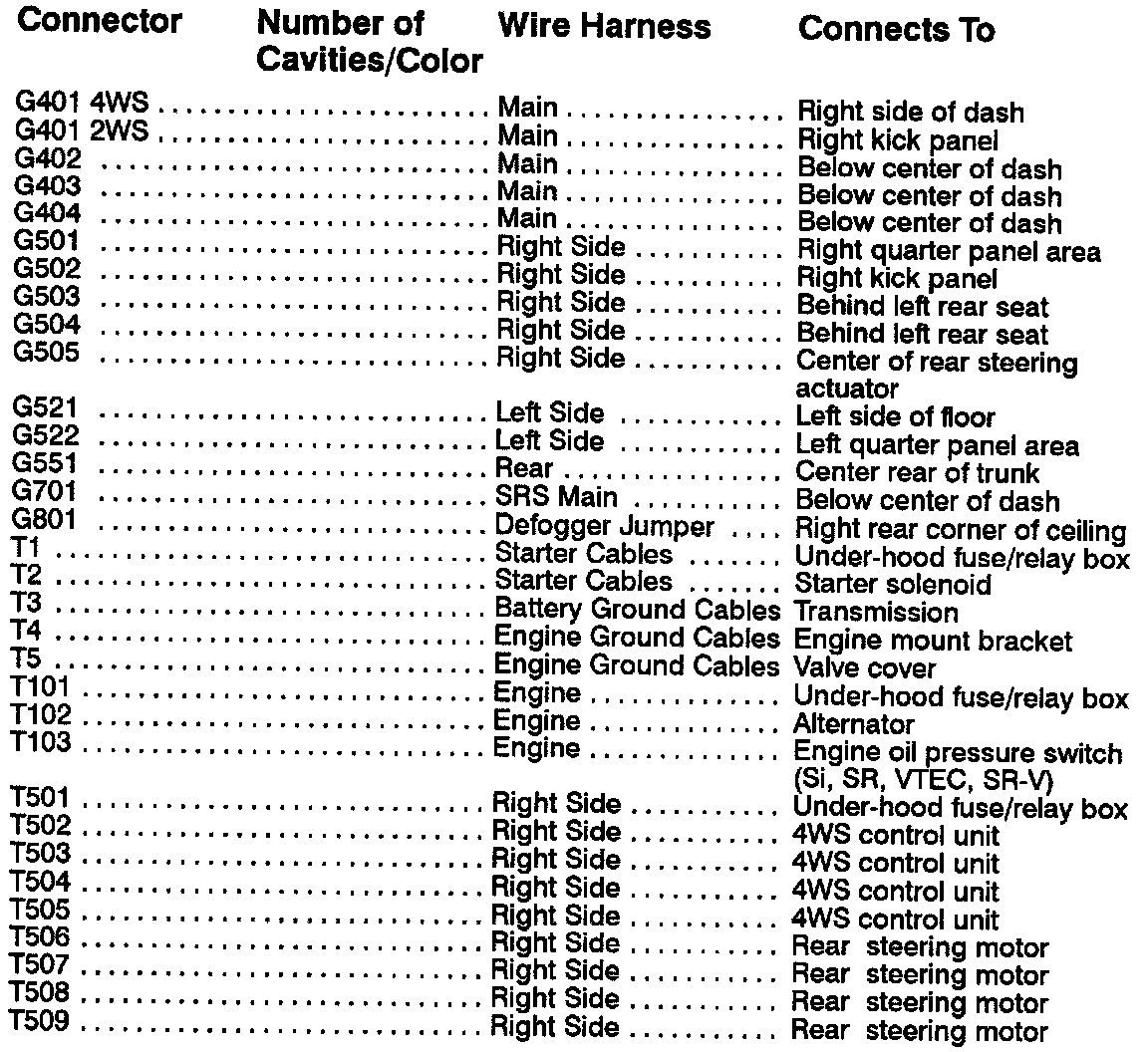

Connector Index:
