Home
>>
Honda
>>
1994
>>
Accord L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
ABS Wire Harness
ABS Wire Harness

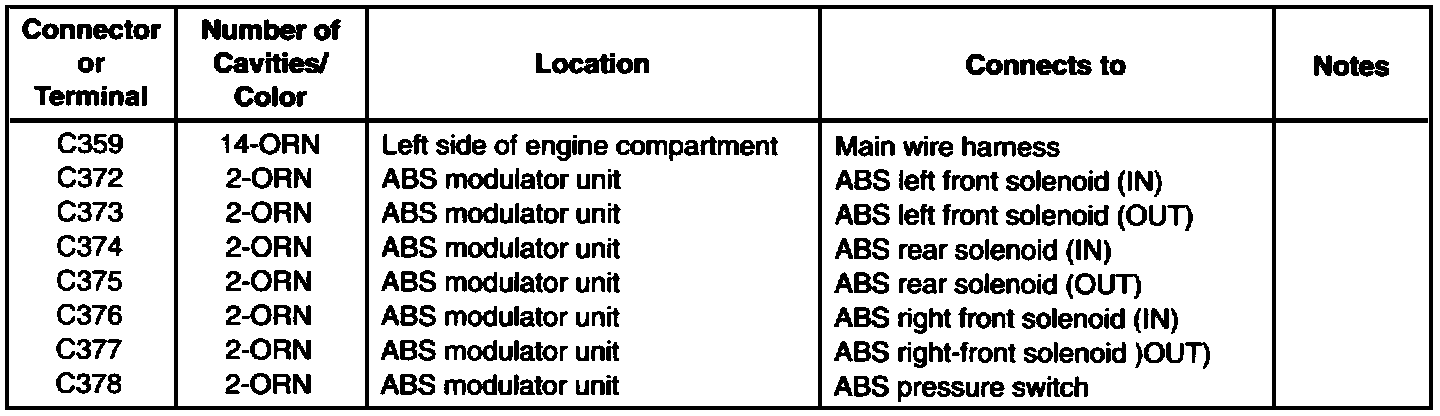

ABS Wire Harness:
Wire Harness Routing:
