Daytime Running Lamp: Locations

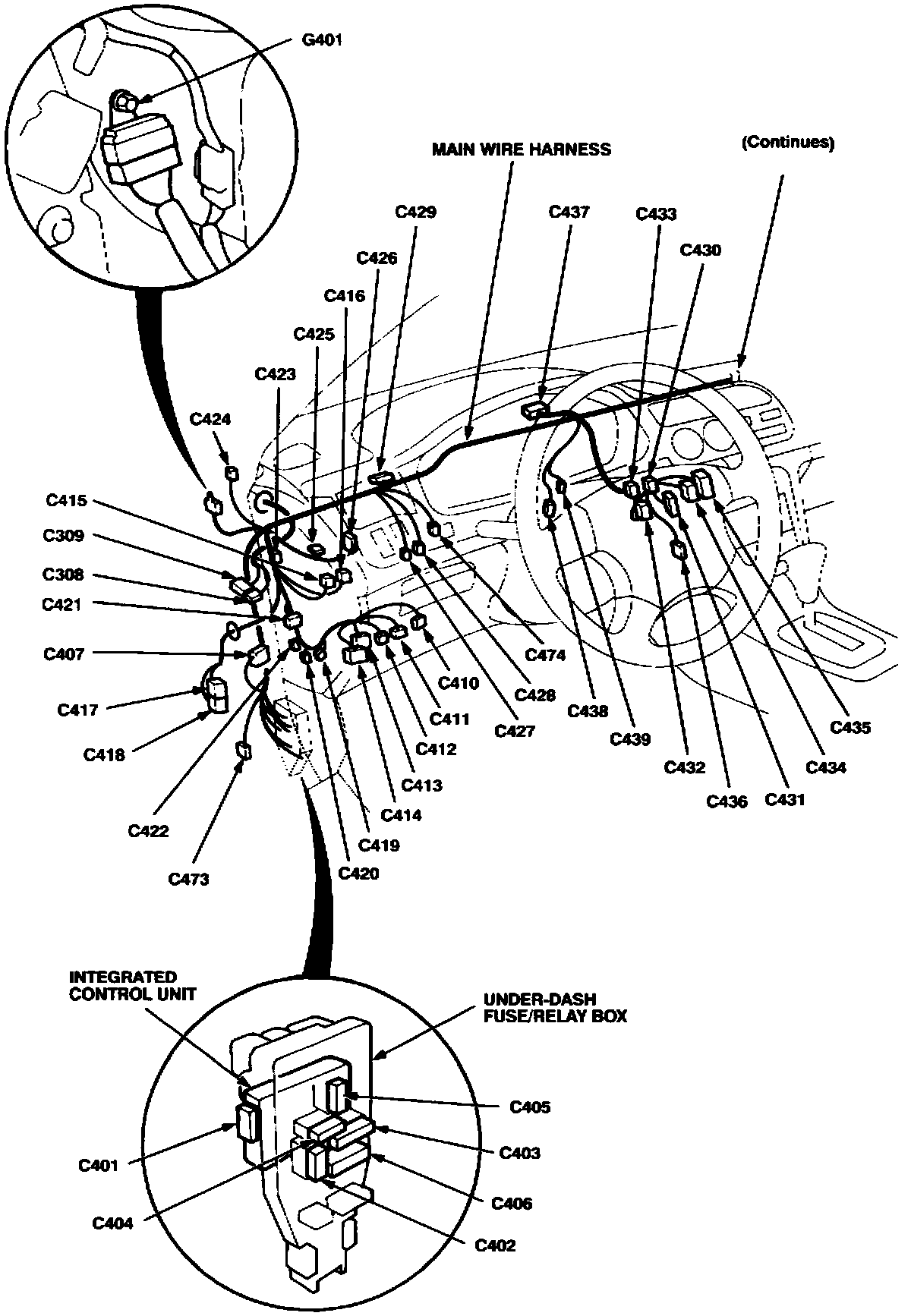

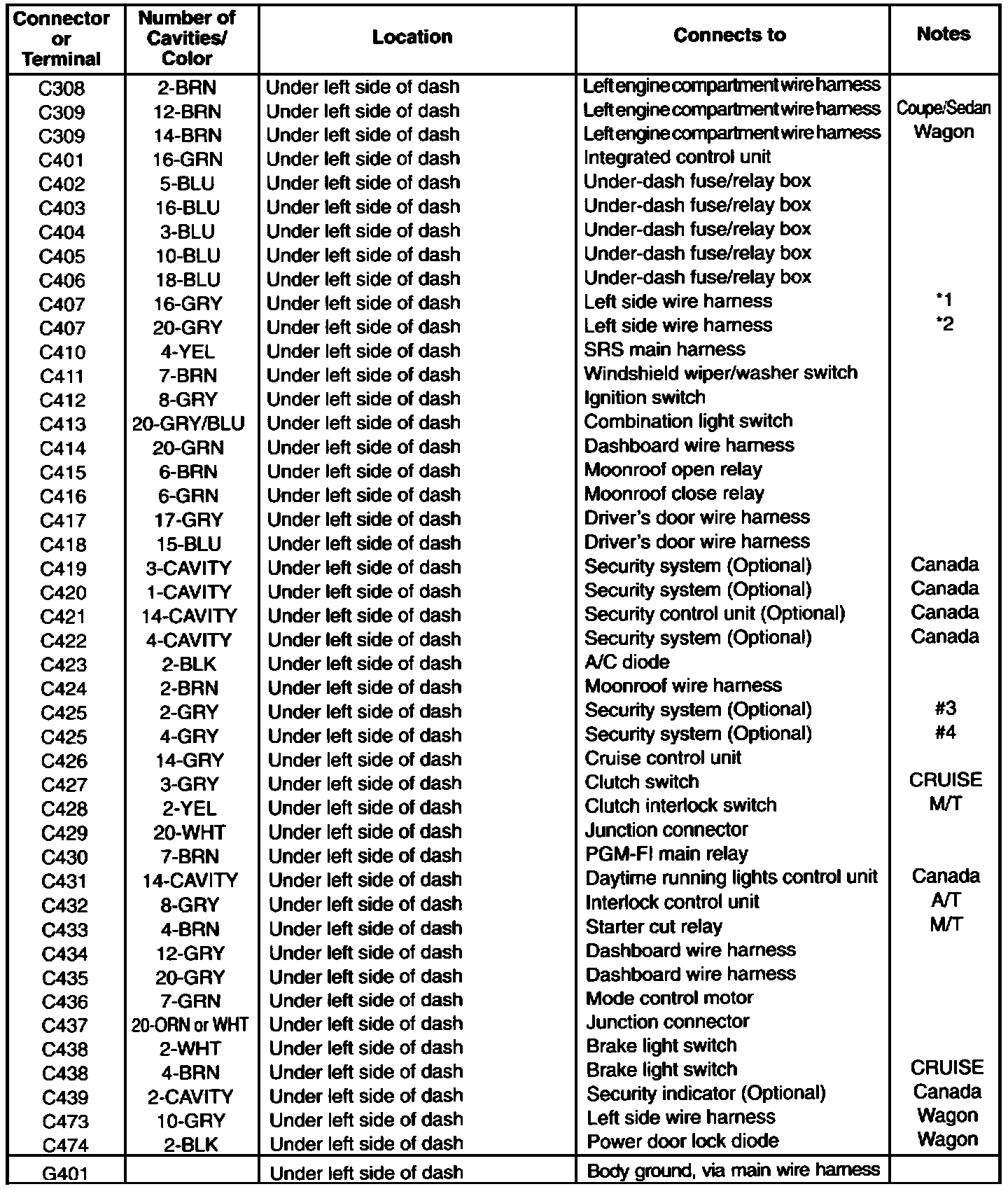

Main Wire Harness (Left Side Of Dash And Floor Branch):



Wire Harness Routing:
