Trailing Arm: Service and Repair

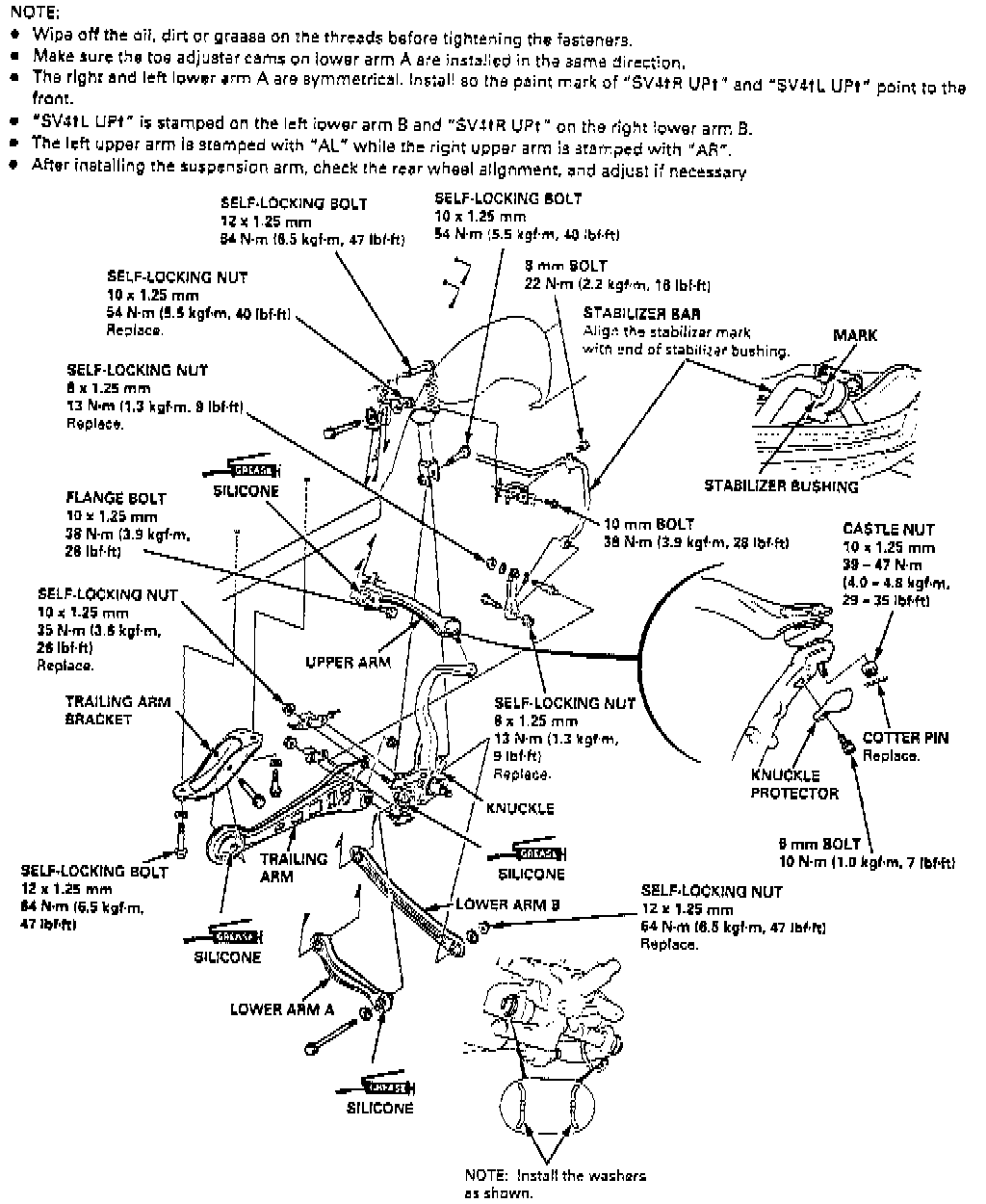

Fig. 9 Exploded View Of Rear Suspension:





Refer to Fig. 9 when replacing trailing arm.
