Home >> Honda >> 1995 >> Accord Sedan L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Brakes and Traction Control >> Hydraulic System >> Brake Fluid Pressure Sensor/Switch >> Locations

Brake Fluid Pressure Sensor/Switch: Locations

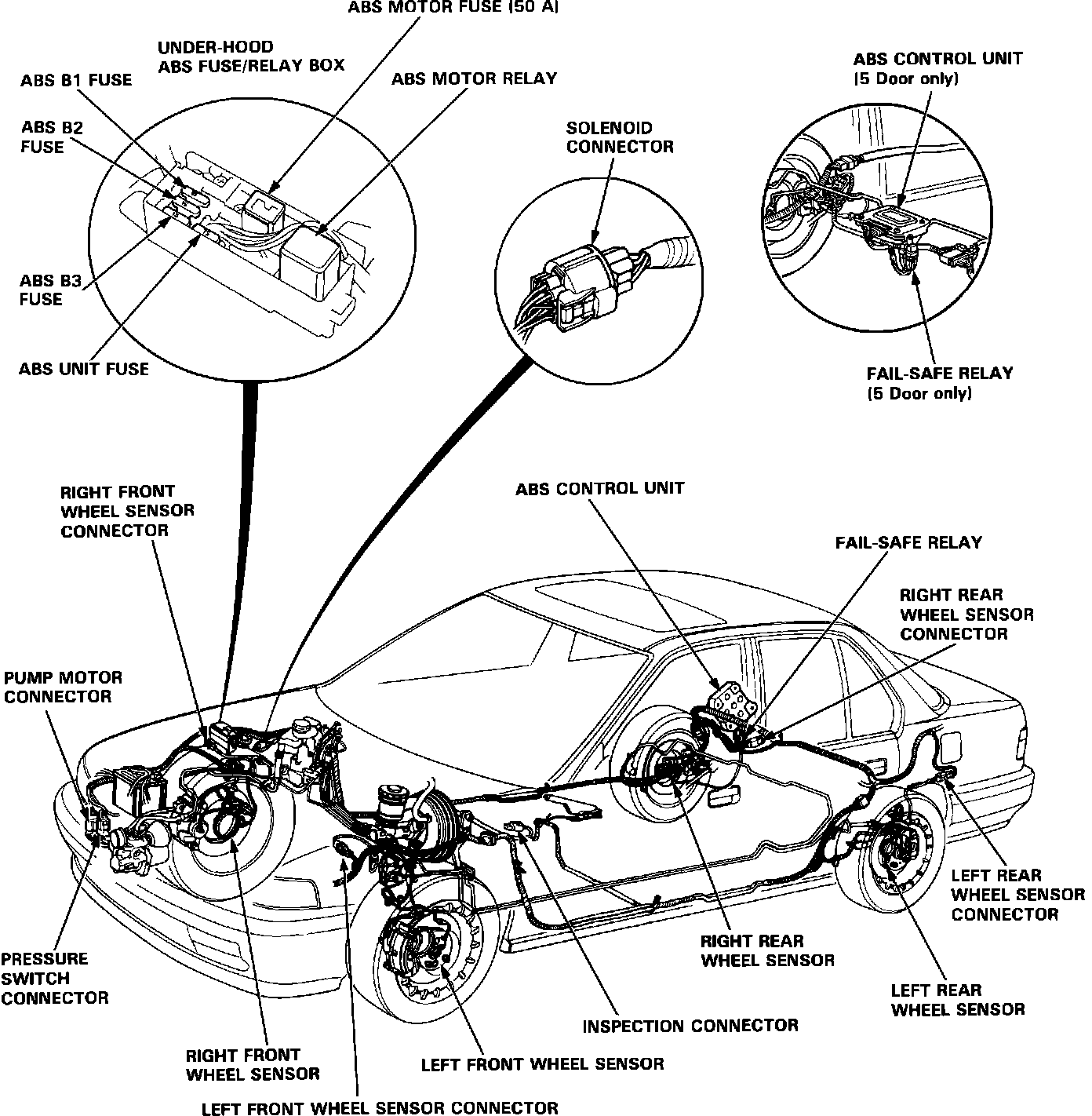

Connector, Control Unit And Relay Locations:
