Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1995
>>
Accord Sedan L4-2.2L SOHC VTEC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

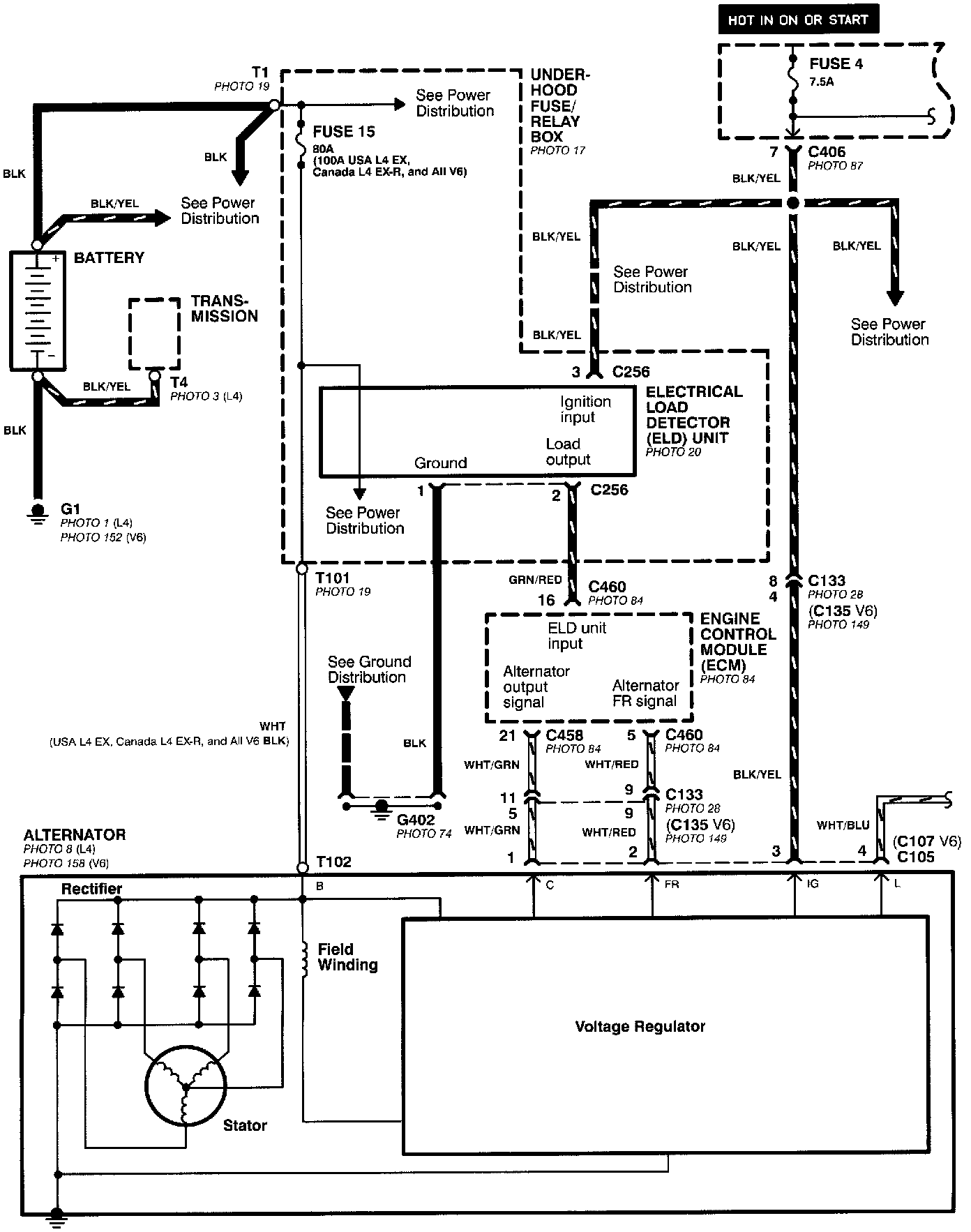

Charging System (part 1 Of 2):

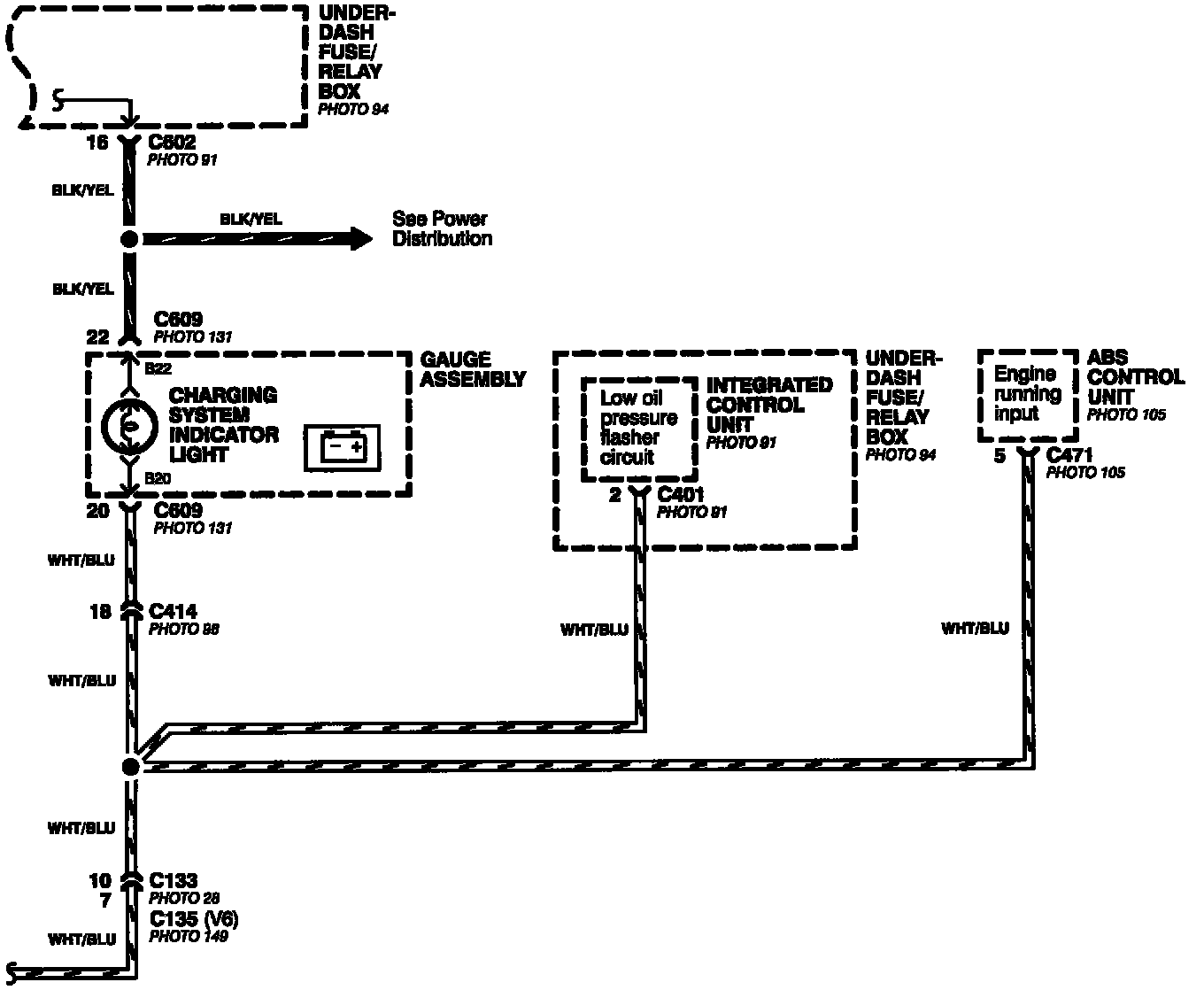

Charging System (part 2 Of 2):
