Home >> Honda >> 1995 >> Del Sol L4-1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Wire Harness

Engine Wire Harness

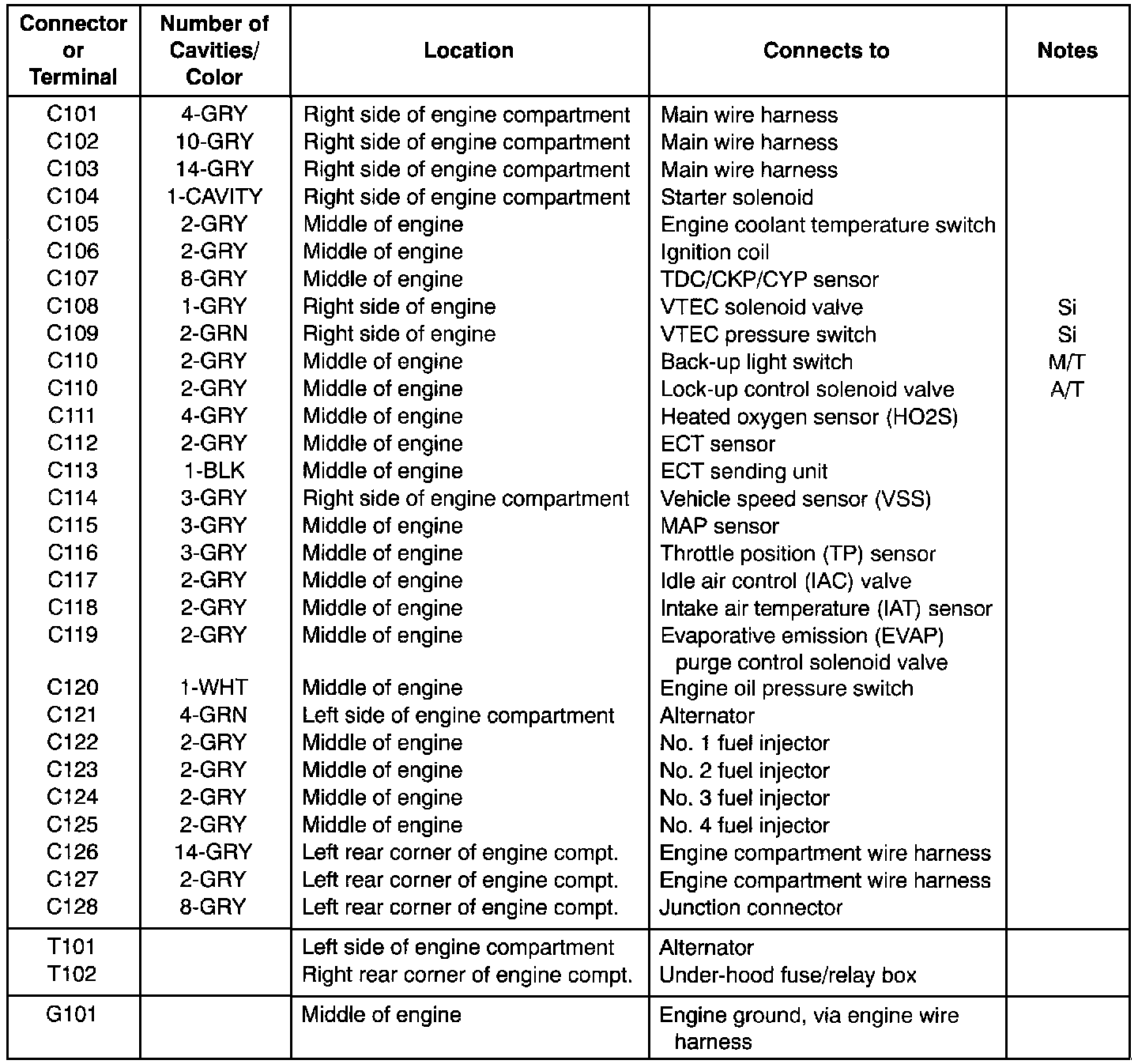

Engine Wire Harness (S, Si):

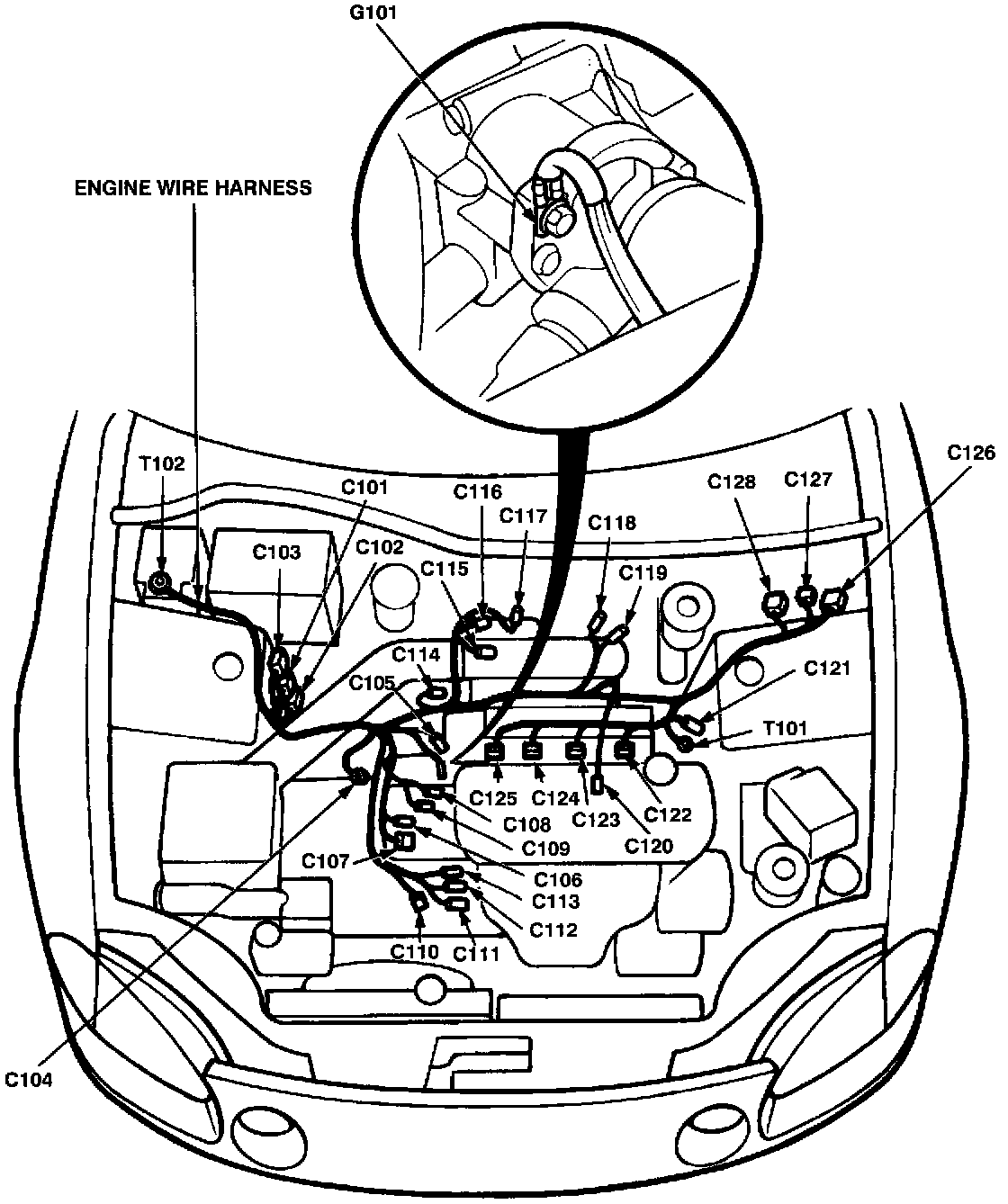

Engine Wire Harness (S, Si):
