Master Switch Replacement

Master Switch Replacement:

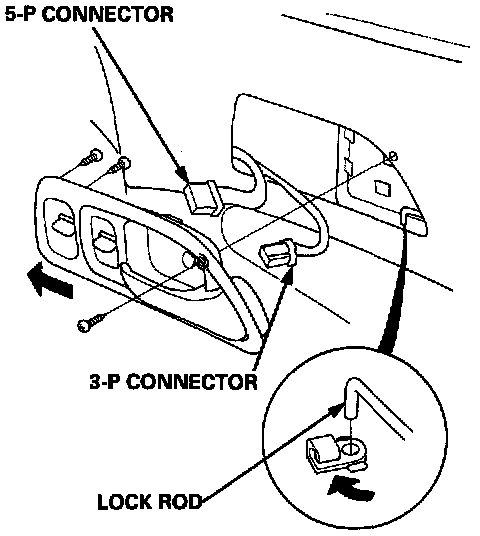

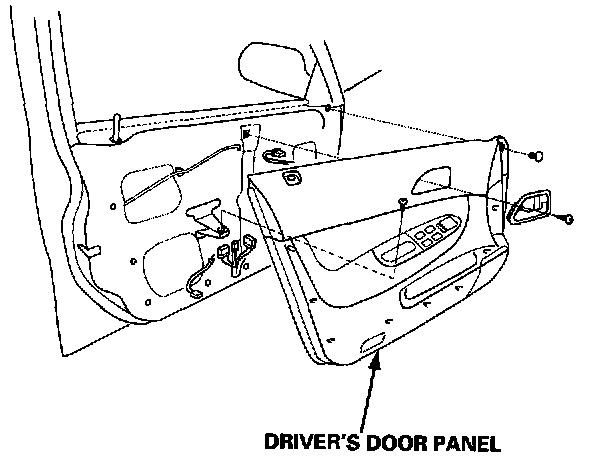

1. Remove the driver's door panel, and disconnect connectors.

Master Switch Replacement:

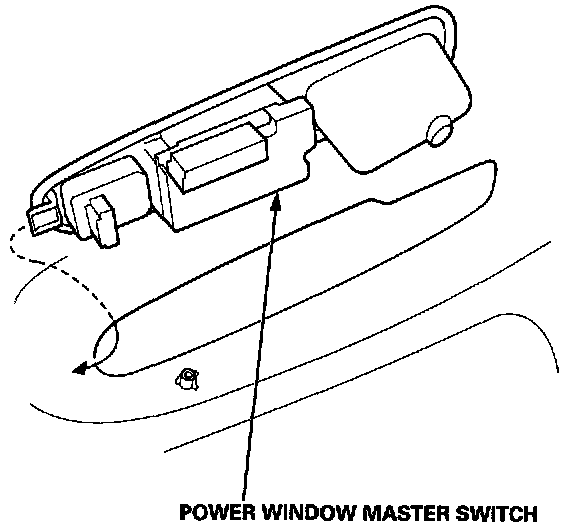

2. Remove the power window master switch from the door panel.

Passenger's Window Switch Replacement:




3. Install in the reverse order of removal.
