Main Switch Test/Replacement

NOTE: Be careful not to damage the switch and the instrument panel.

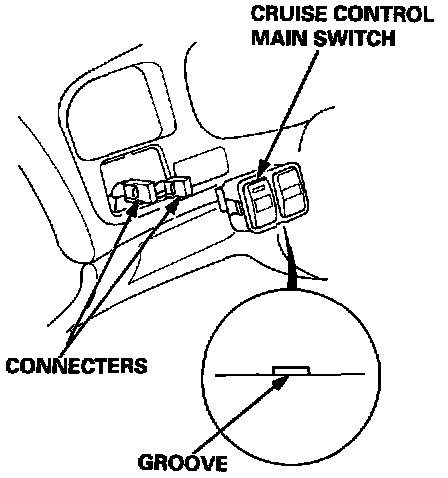

1. Carefully pry the switches out of the instrument panel, and disconnect the connectors.

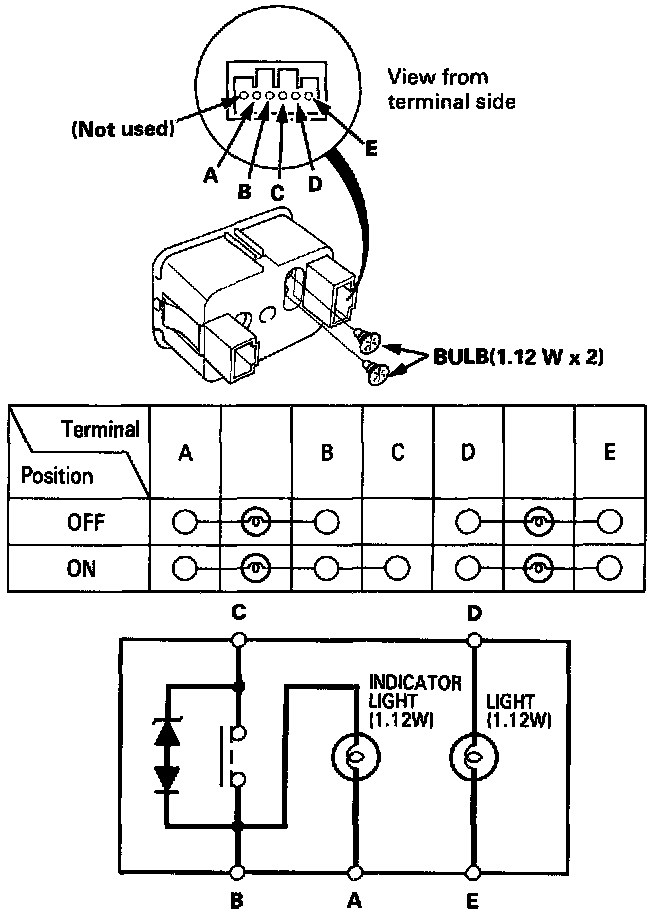

2. Check for continuity between the terminals in each switch position according to the table.
^ If there is no continuity, replace the switch.
