Air Mix Control

Heater Control Panel - Overhaul:

Air Mix Control Cable Replacement

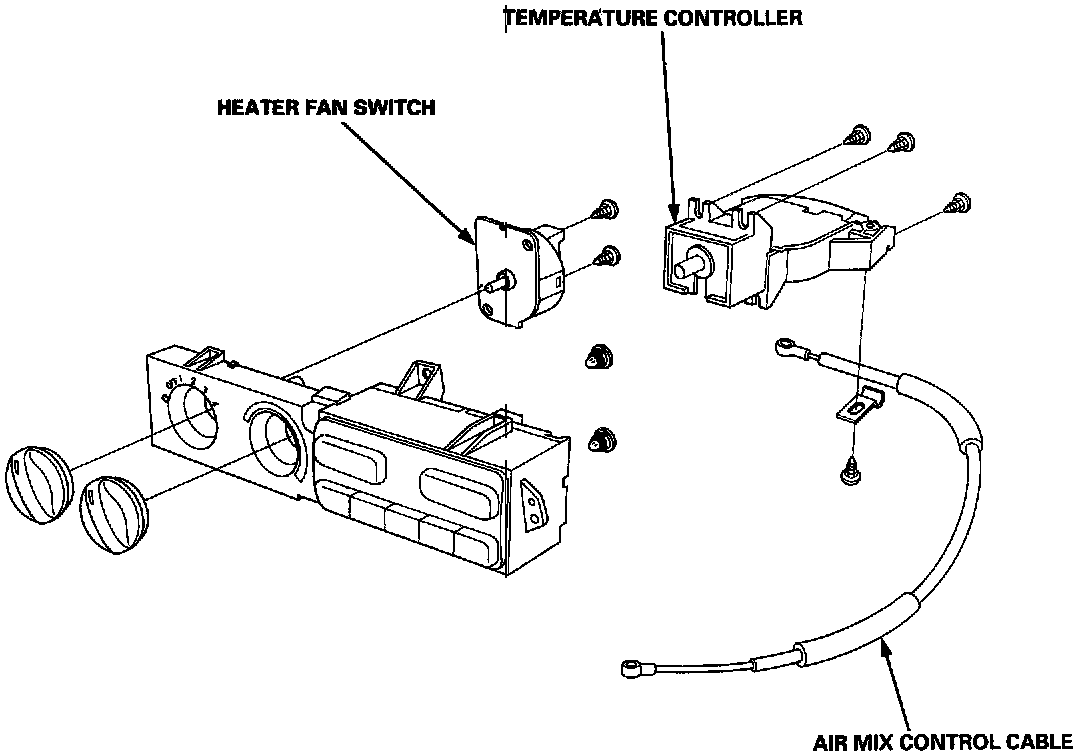

1. Remove the self-tapping screw and clamp.

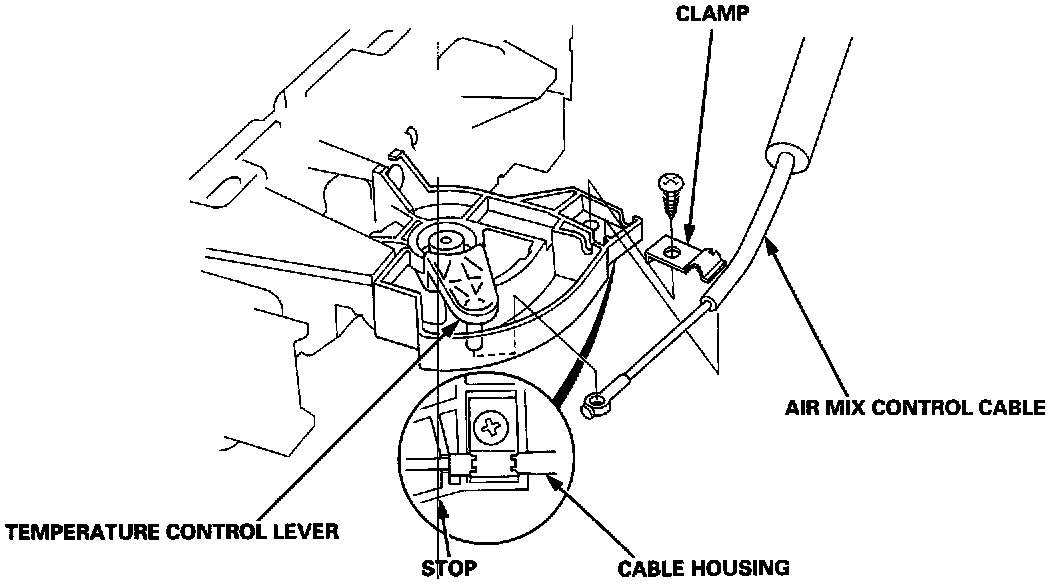

2. Lift the end of the temperature control lever up, then remove the air mix control cable.

Heater Control Panel - Overhaul:

3. Install in the reverse order of removal. Make note of the following items.

^ Be sure the end of the cable housing is against the top before tightening the cable clamp.
^ After assembly, check that the temperature control lever slides smoothly through the full stroke from right to left.
