Speedometer Module: Testing and Inspection

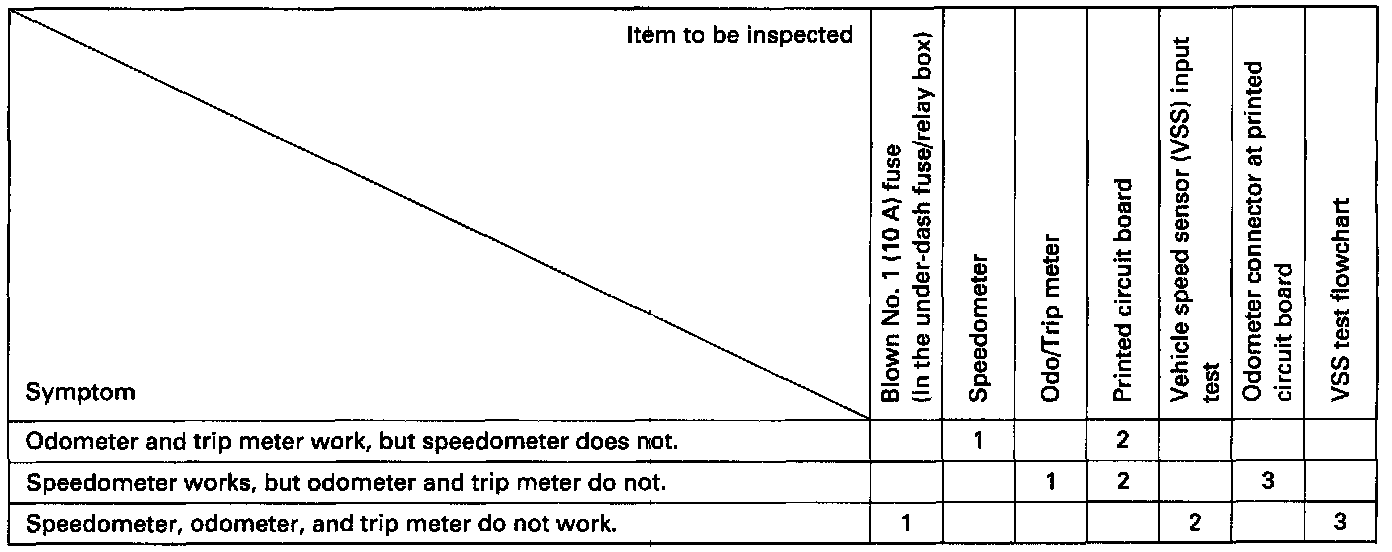

Speedometer/Trip Meter/Odometer - Troubleshooting:





NOTE: The numbers in the table show the troubleshooting sequence.

VSS Input Test (At Harness Side Of 3-P Connector):

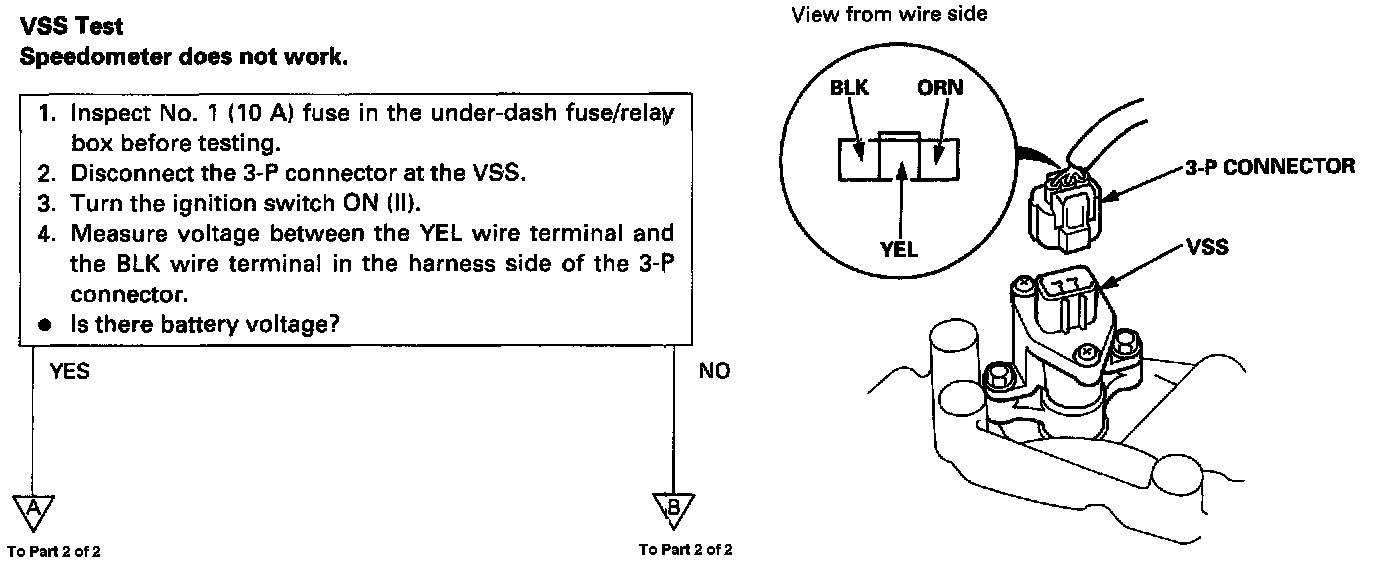

VSS Test:

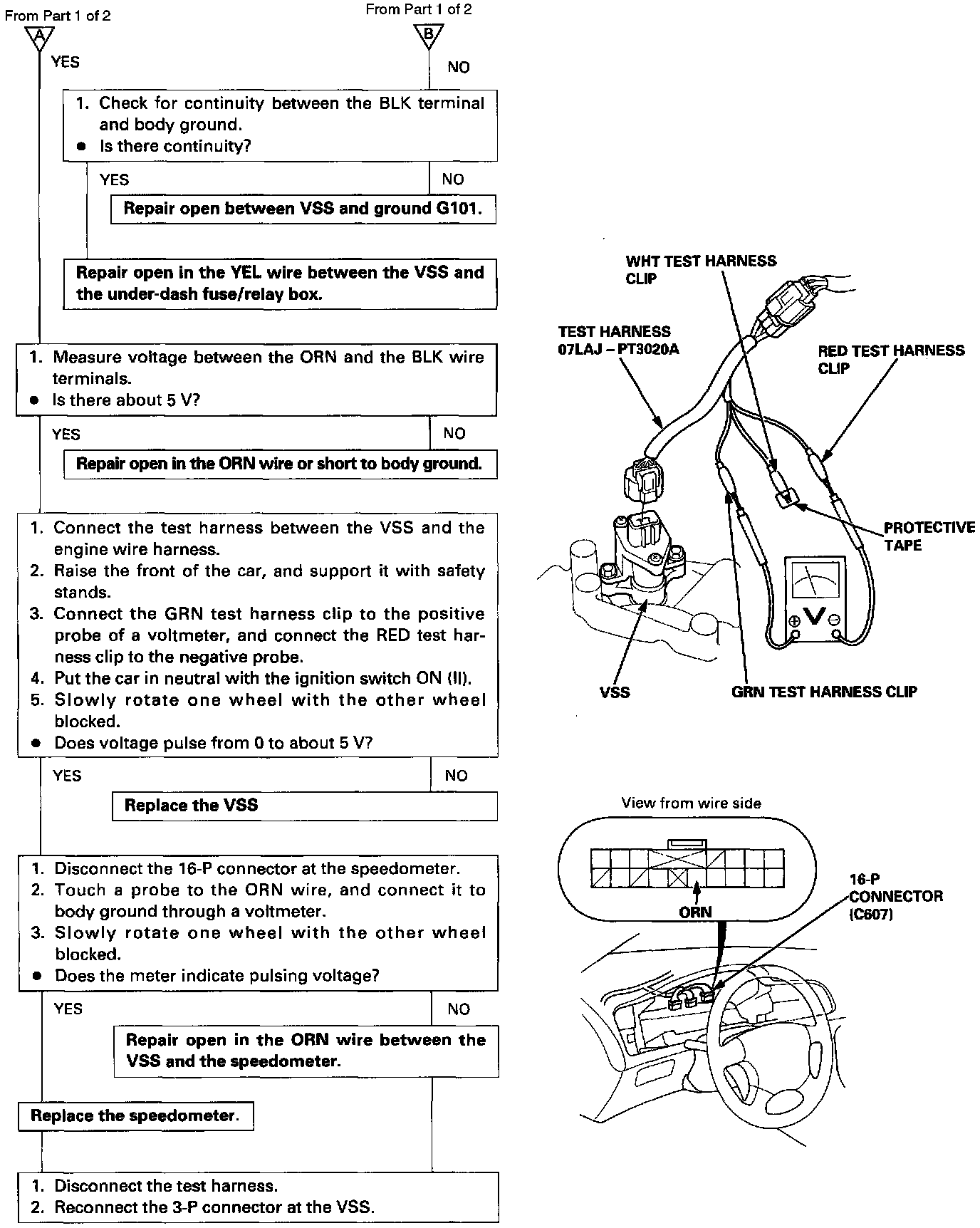

VSS Test:
