Torque Specifications

Intake:













Head Bolt Torque Sequence:





Exhaust Manifold:

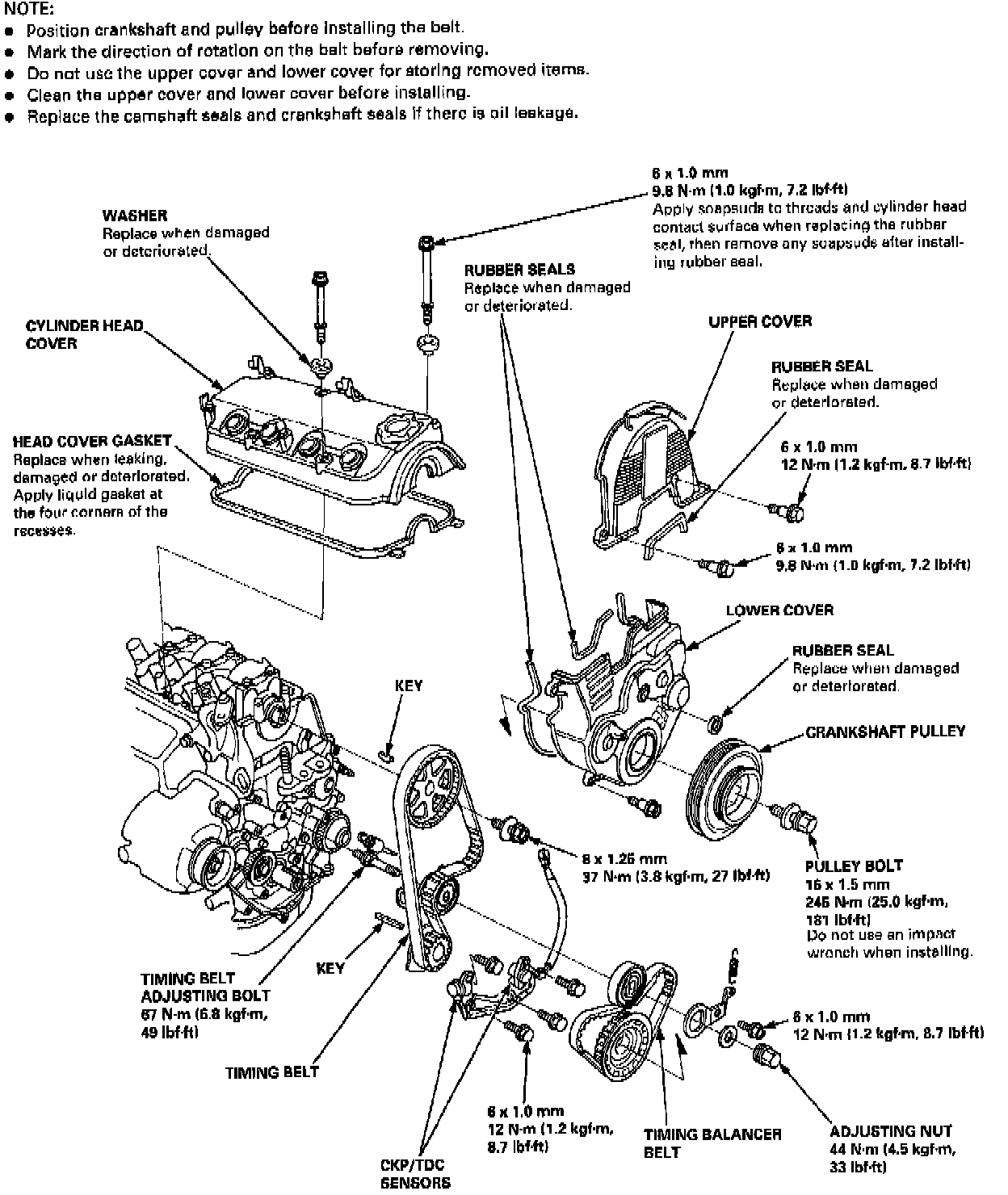

Timing Components:

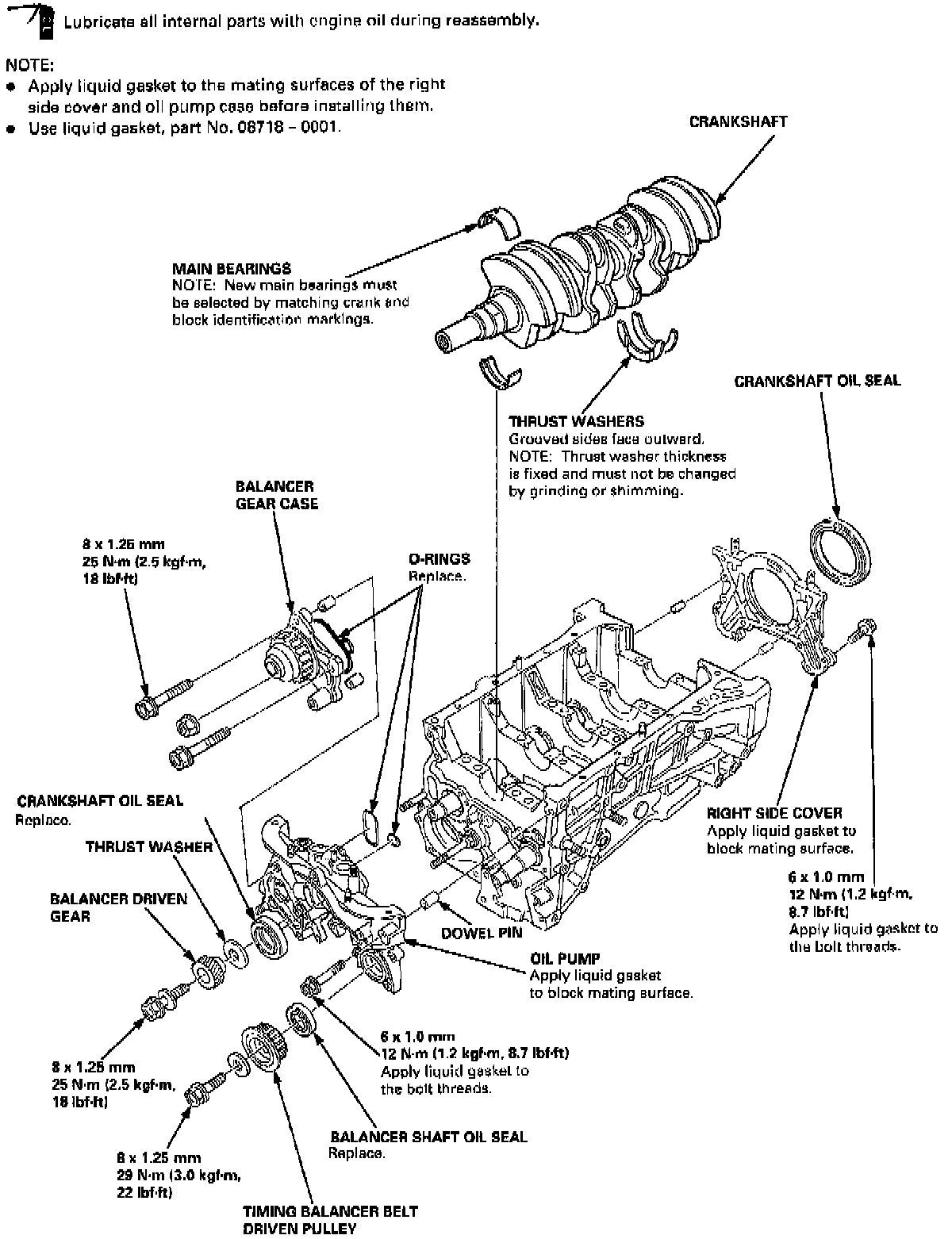

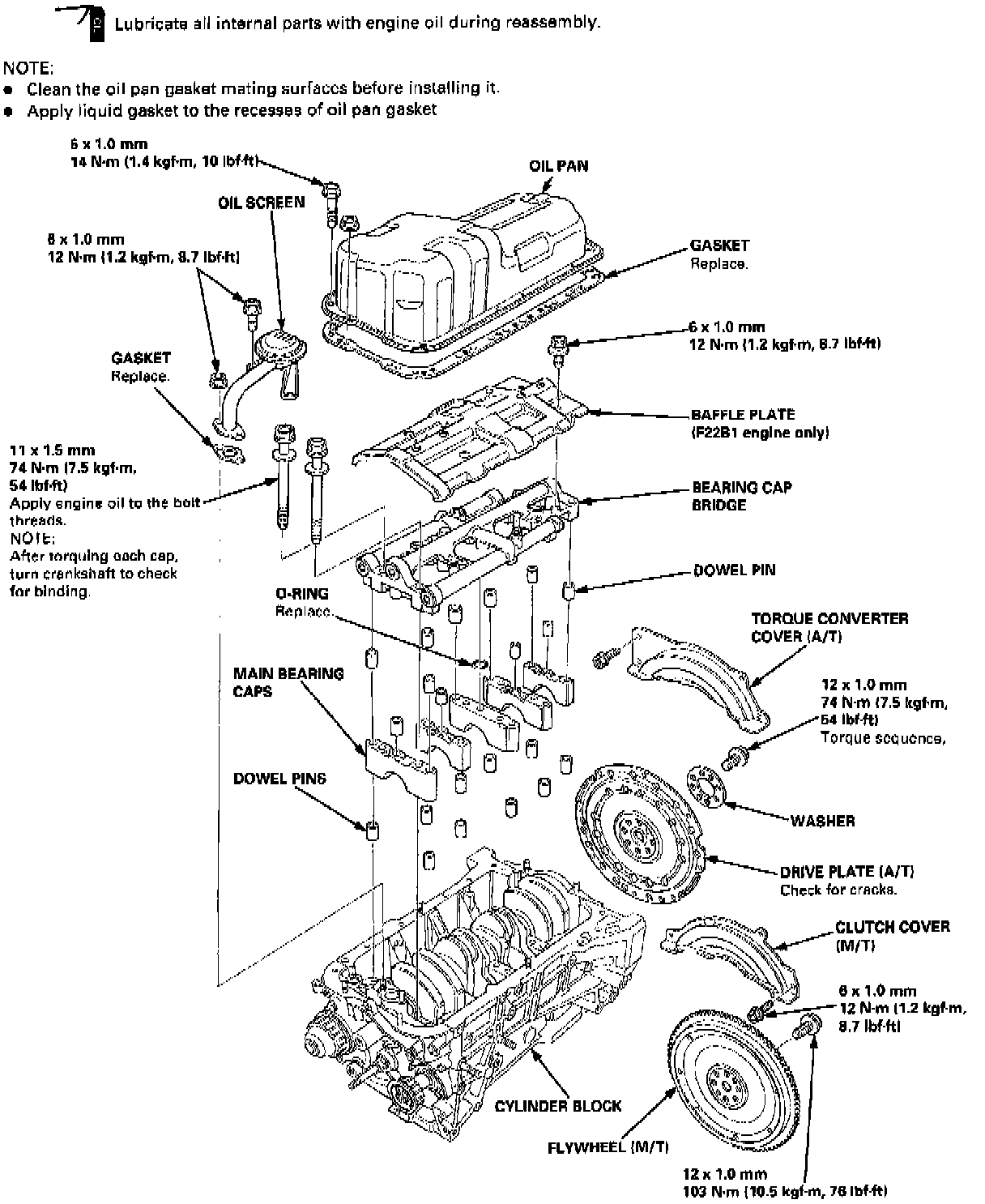

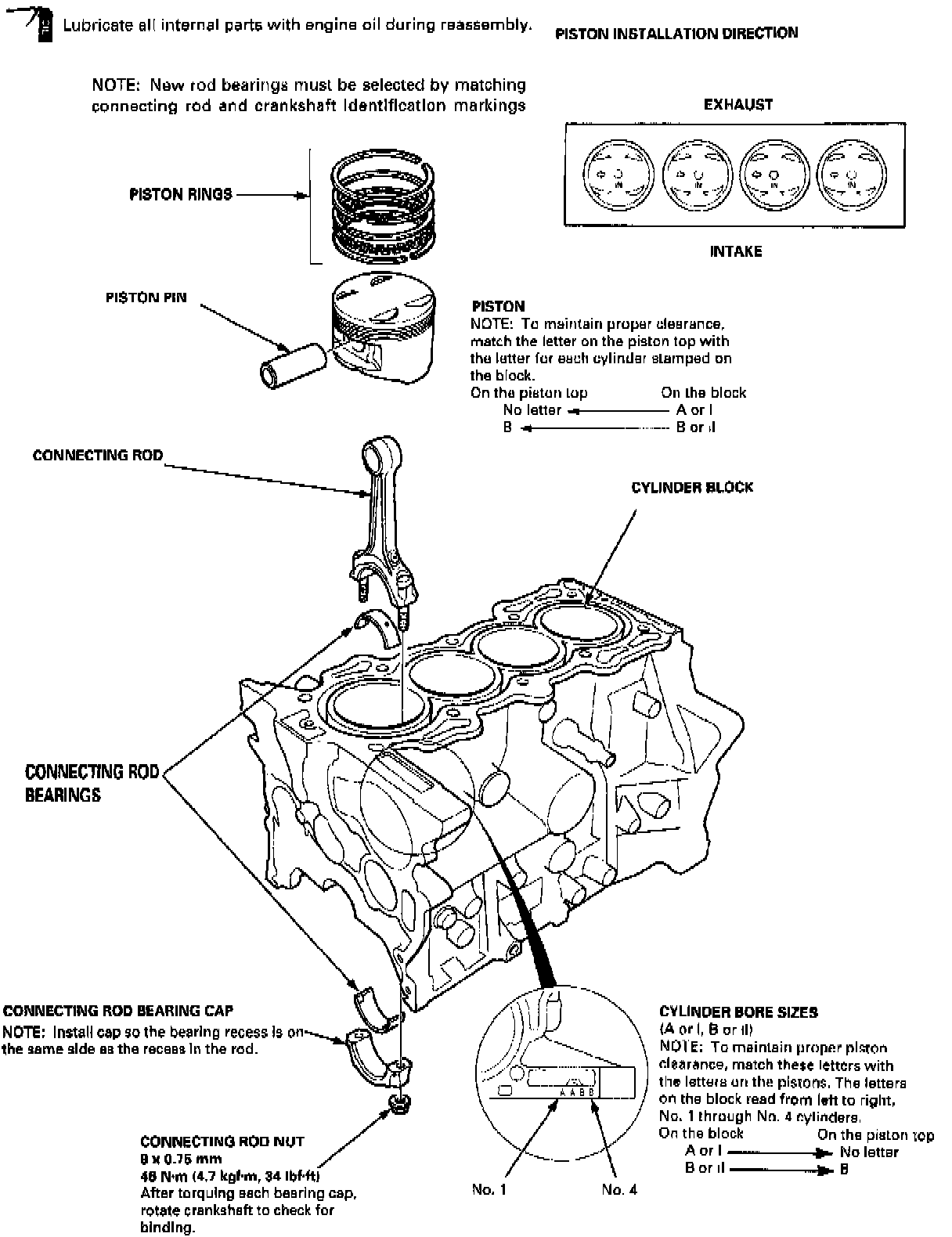

Lower Engine:

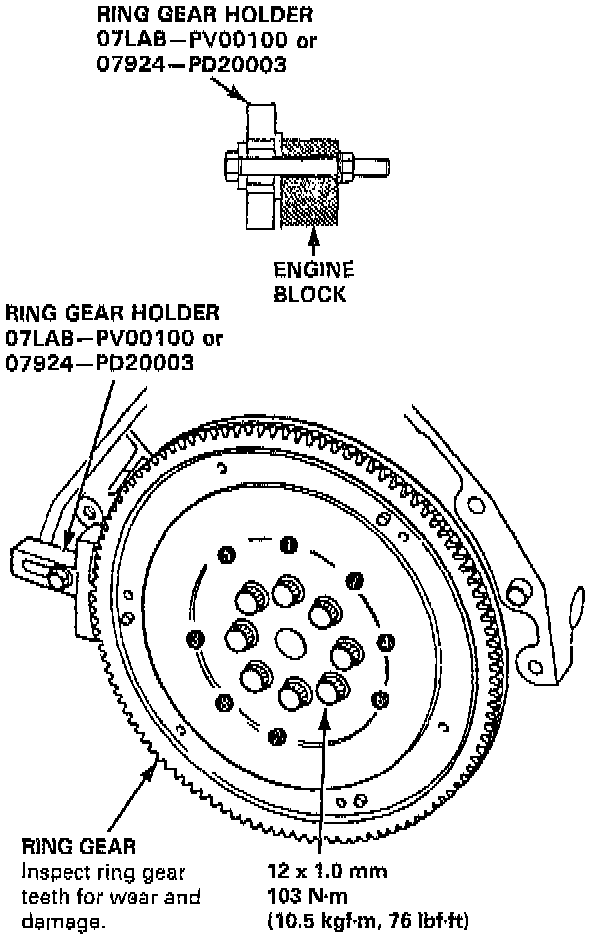

Flywheel (M/T) Torque/Sequence:

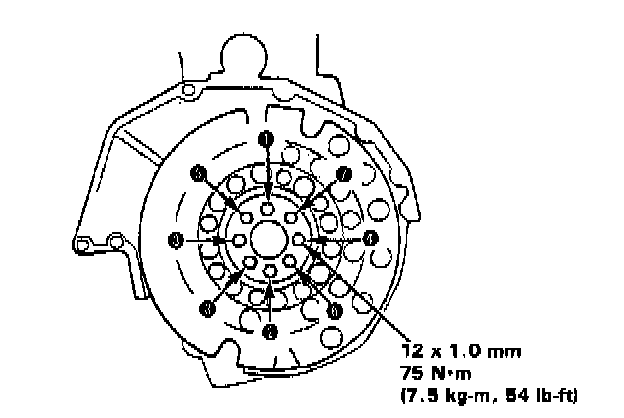

Drive Plate (A/T) Torque/Sequence:
