Home >> Honda >> 1997 >> Accord EX Coupe L4-2156cc 2.2L SOHC (VTEC) MFI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Torque Specifications

Torque Specifications

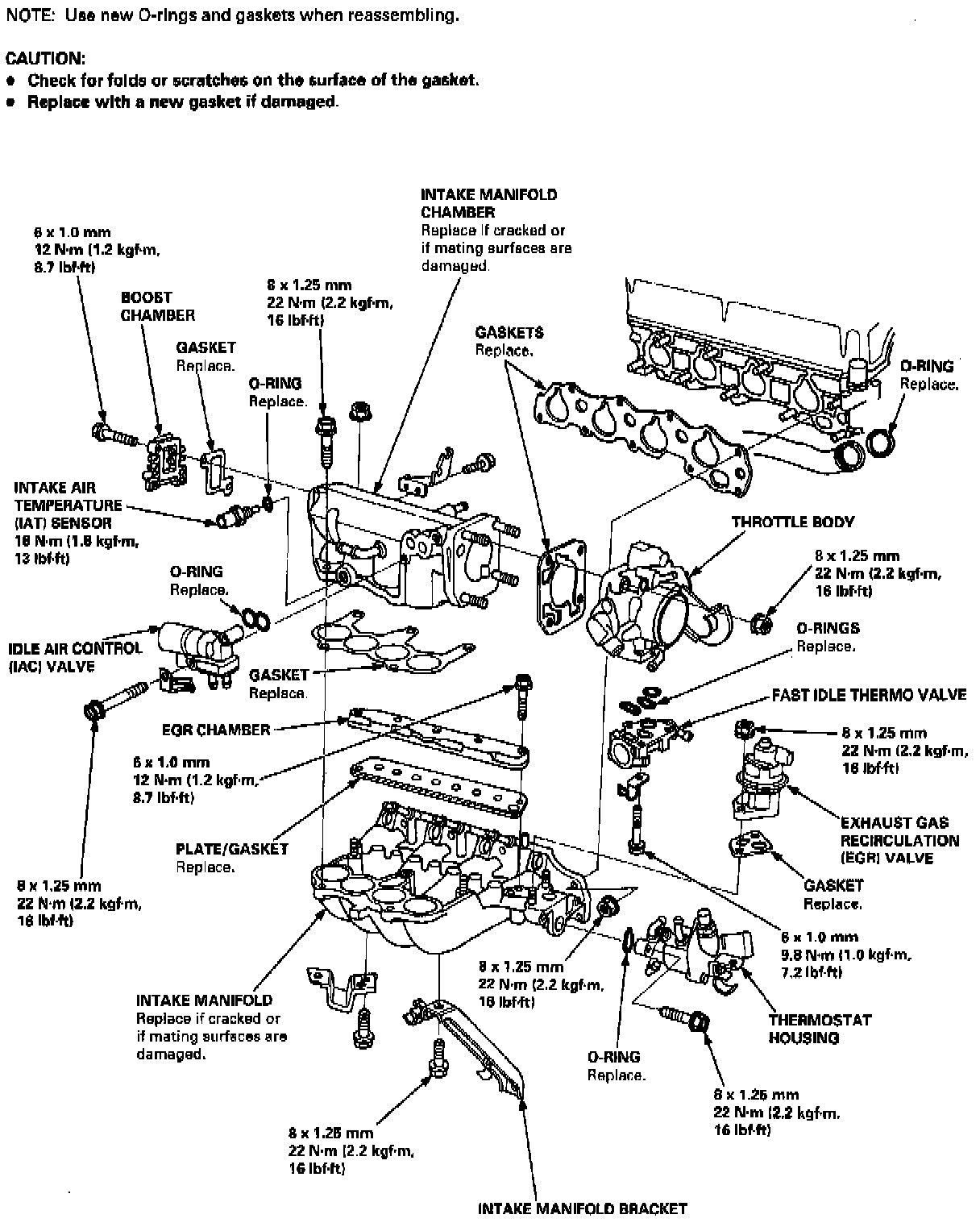

Intake:

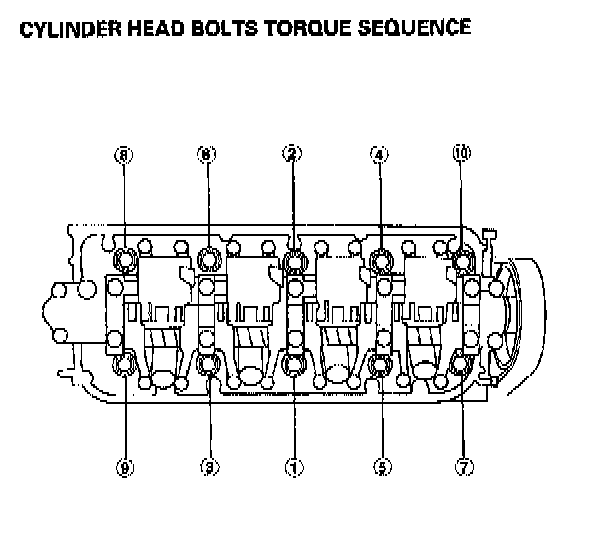

Head Bolt Torque Sequence:

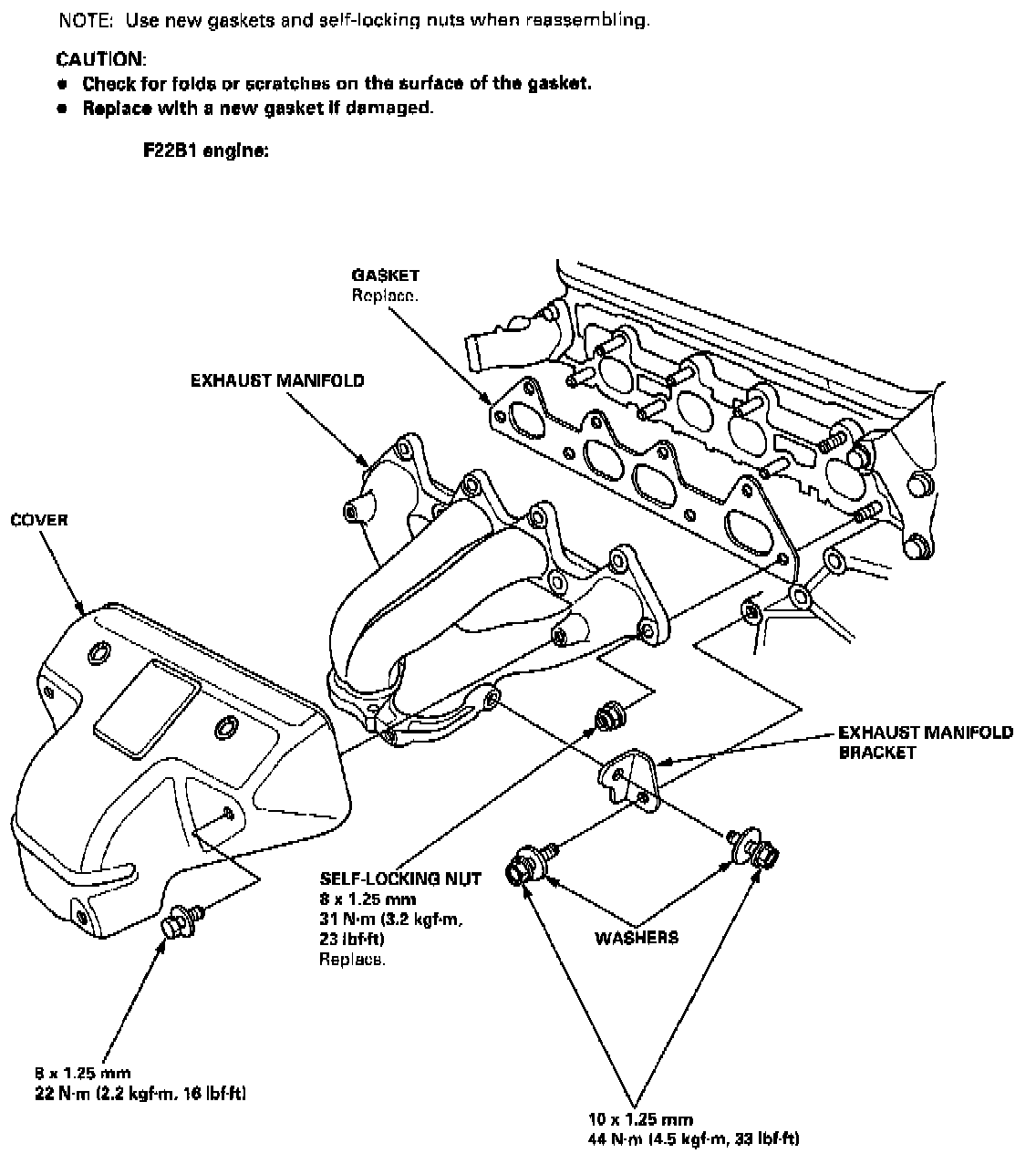

Exhaust Manifold:
