Electronic Brake Control Module: Service and Repair

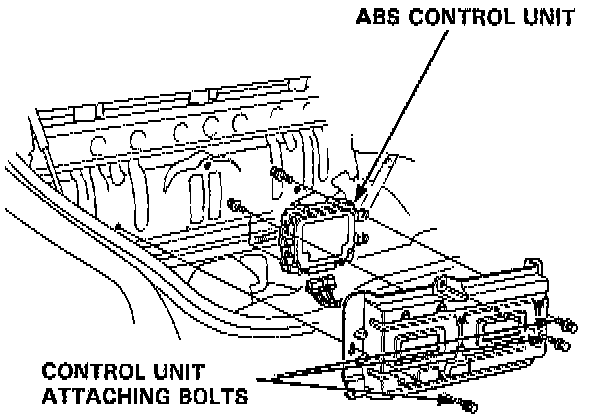

Removing Mounting Bolts And ABS Control Unit:

- Remove the trunk front trim panel.
- Disconnect the control unit connectors.
- Remove the mounting bolts, then remove the ABS.
- Install the ABS control unit in the reverse order of removal.
