Home >> Honda >> 2000 >> Accord LX Coupe V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> 51-75 >> 70

51-75: 70

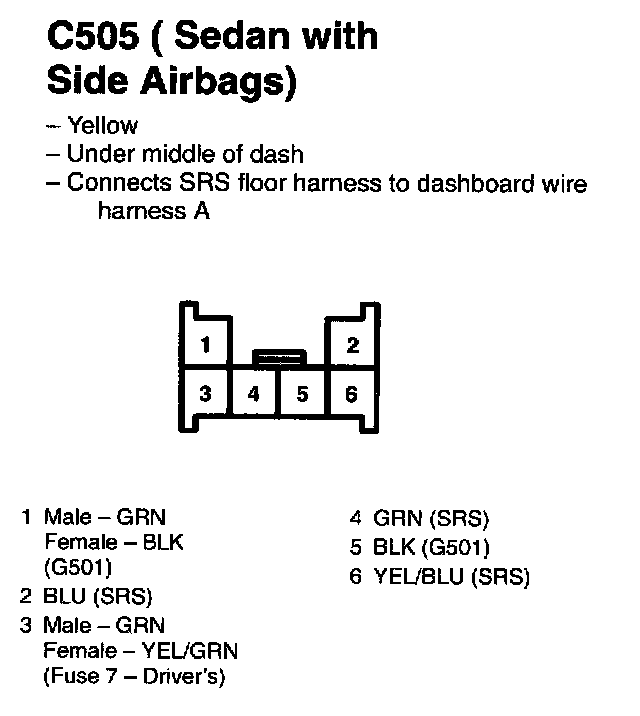

C505 (With Side Airbags):
