Circuit 207
Circuit 207

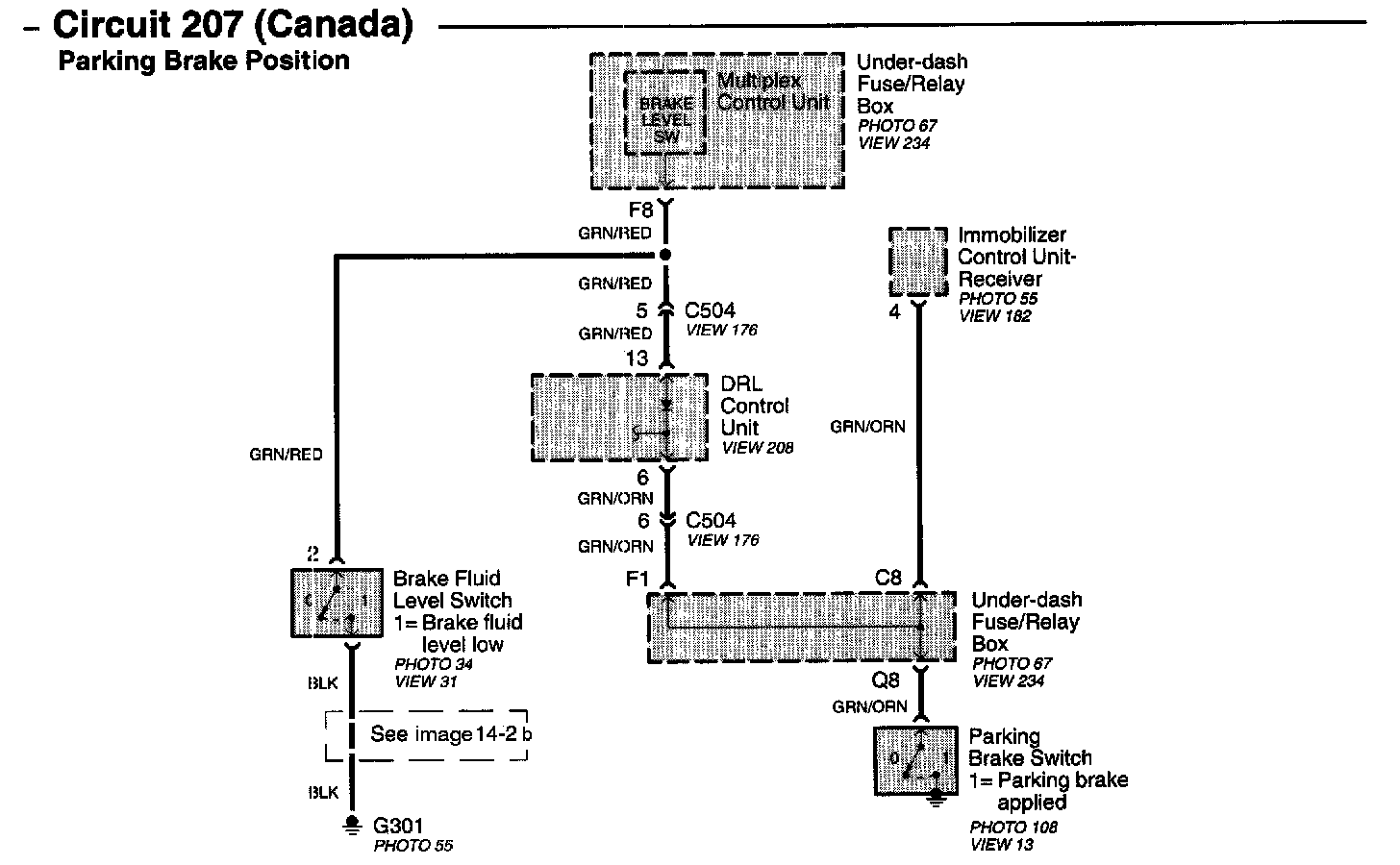

Circuit 207 (Canada) - Parking Brake Position Image 15-5a:

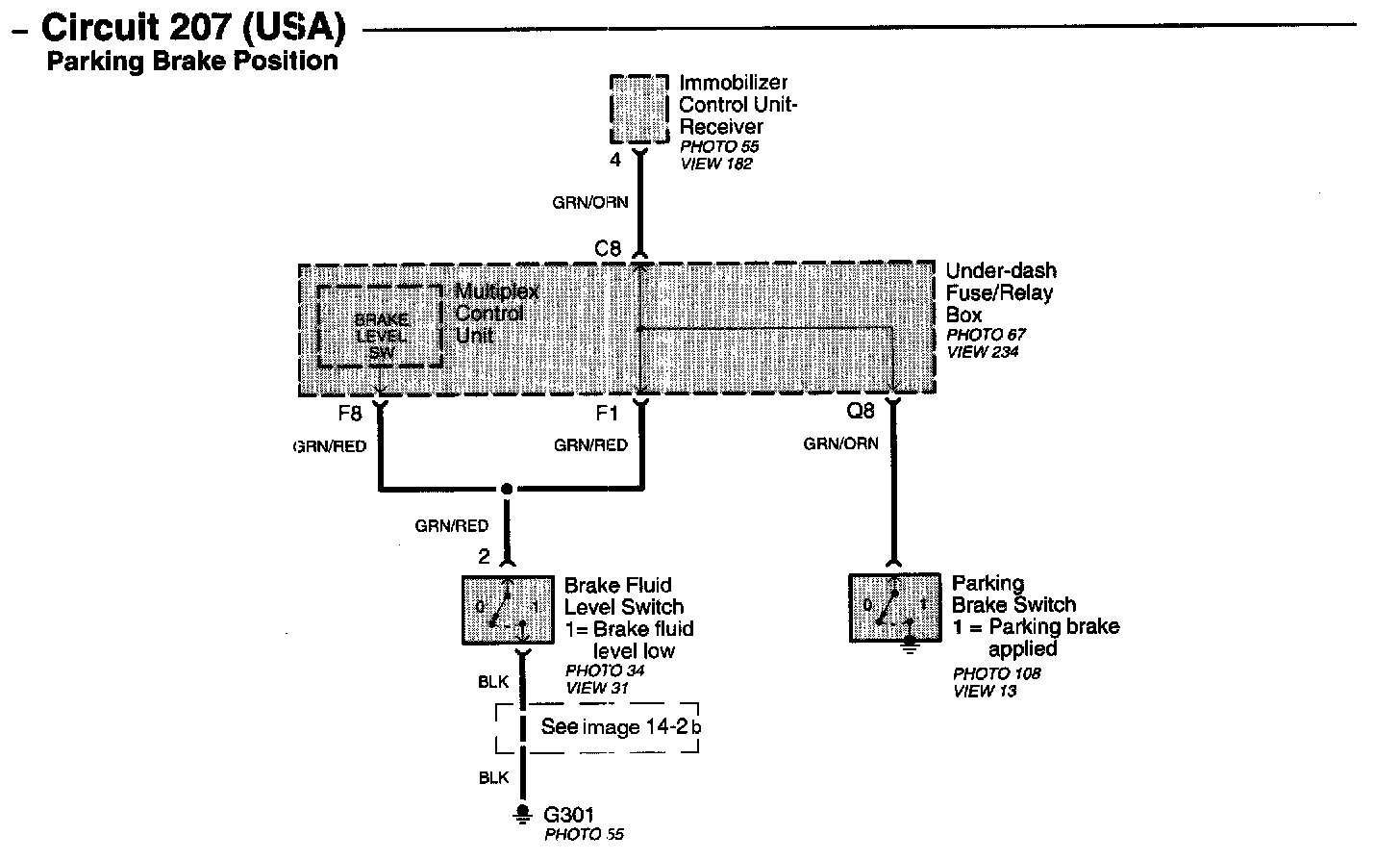

Circuit 207 (USA) - Parking Brake Position Image 15-5b:
