Brake Switch Signal Circuit Troubleshooting

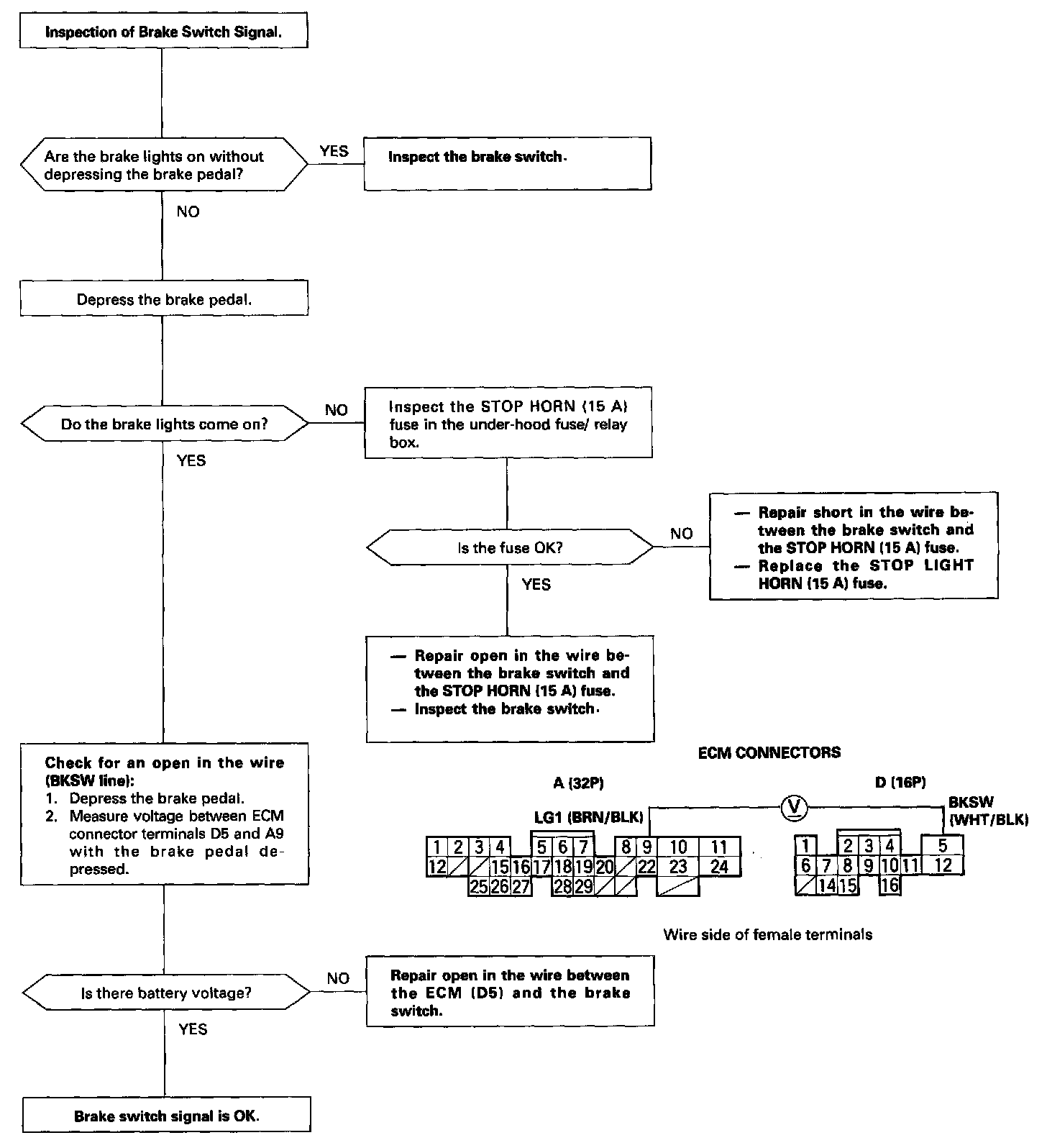

Brake Switch Signal Circuit Troubleshooting
This signals the
ECM
when the brake pedal is depressed.
