Transmission Disassembly

MANUAL TRANSMISSION OVERHAUL W/ RELATED COMPONENTS

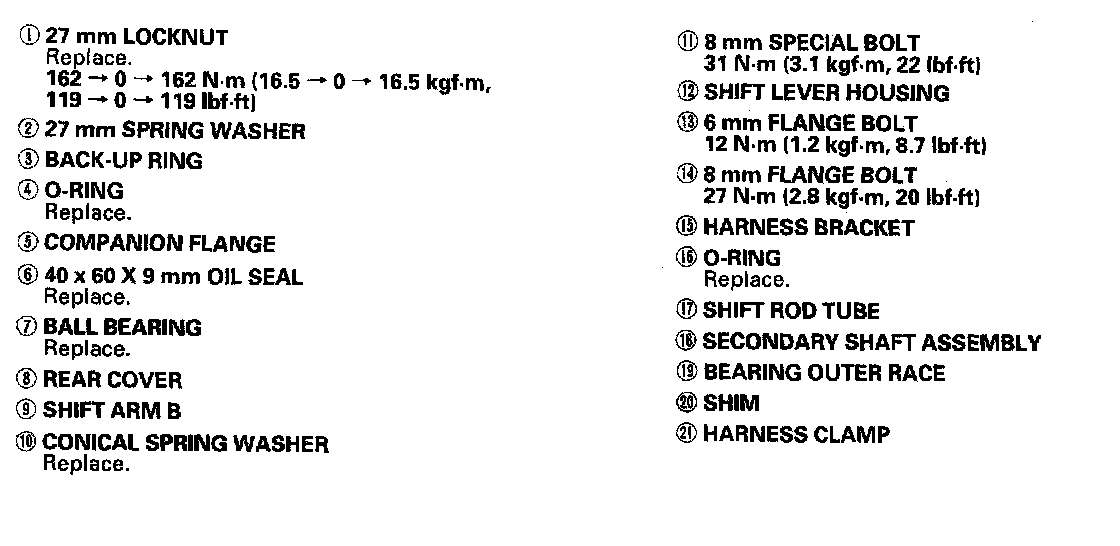

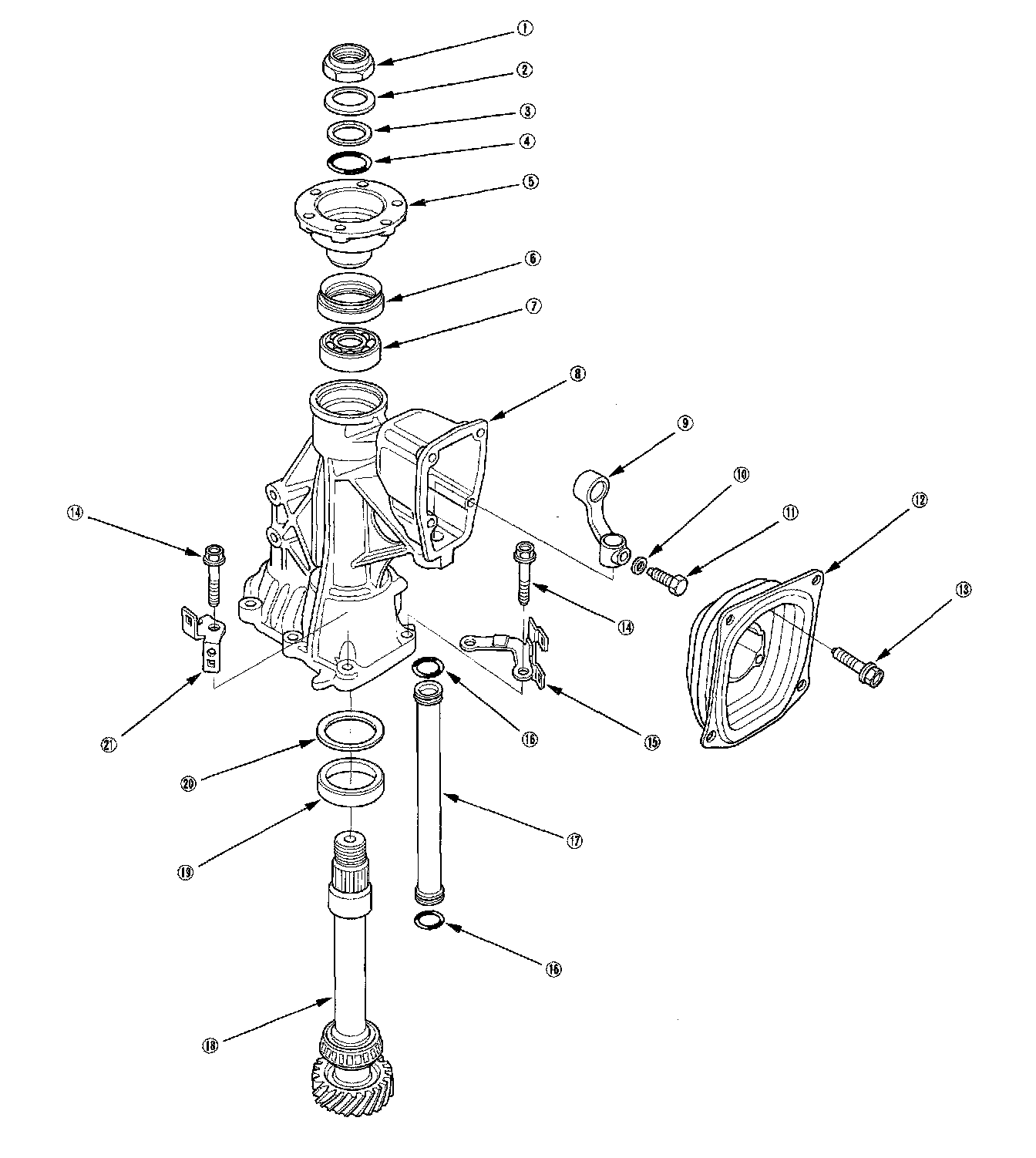

Rear Cover

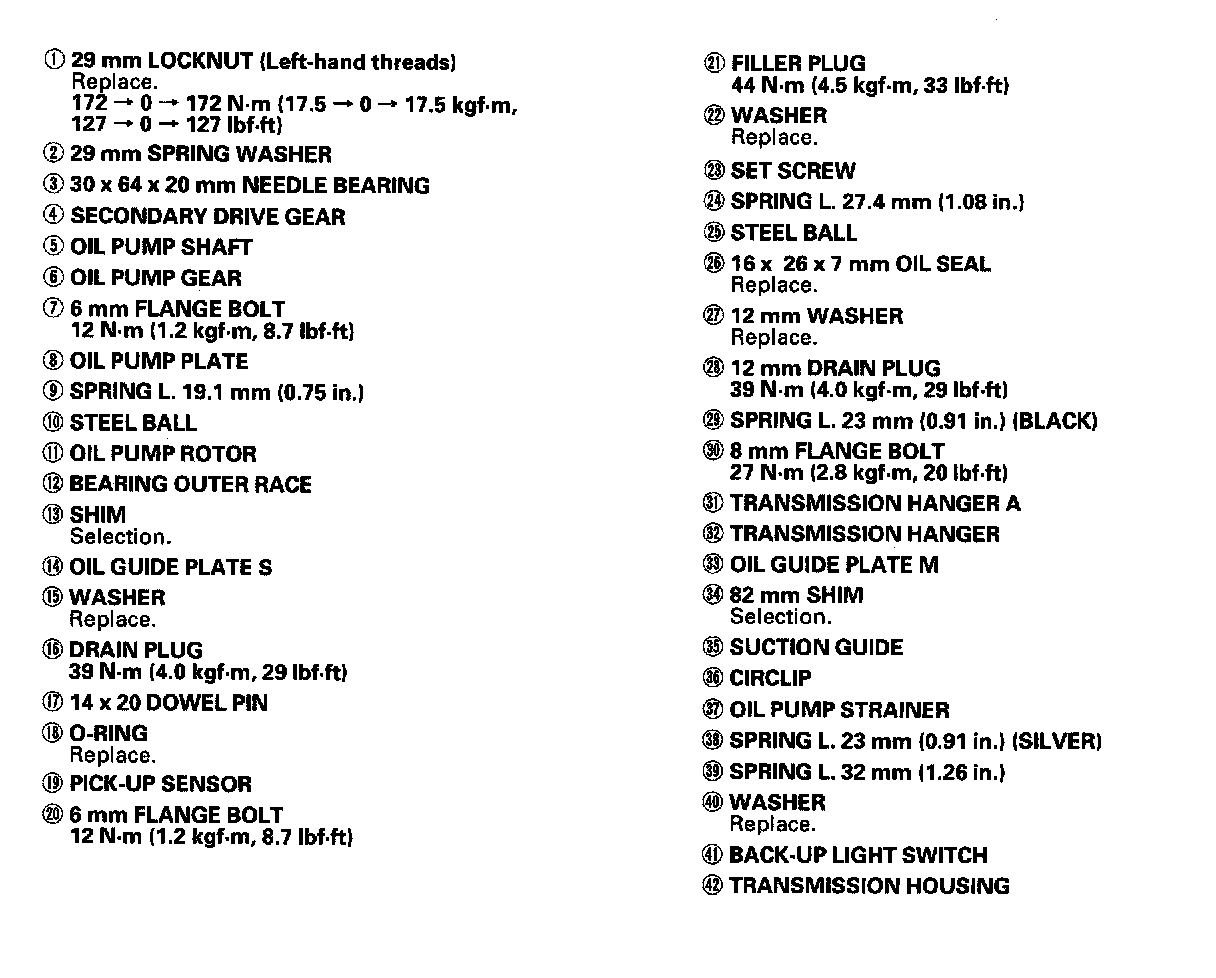

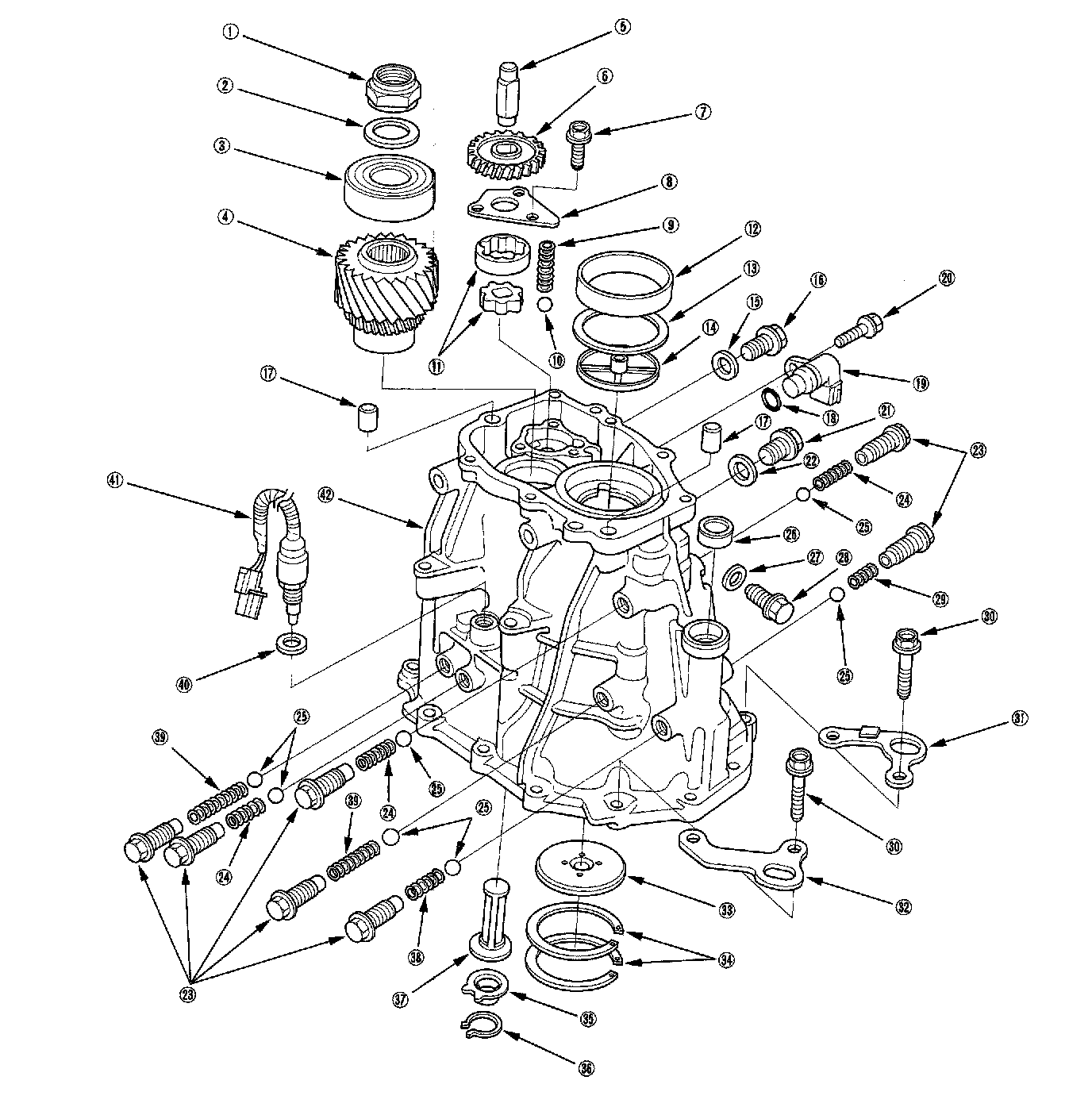

Transmission Housing

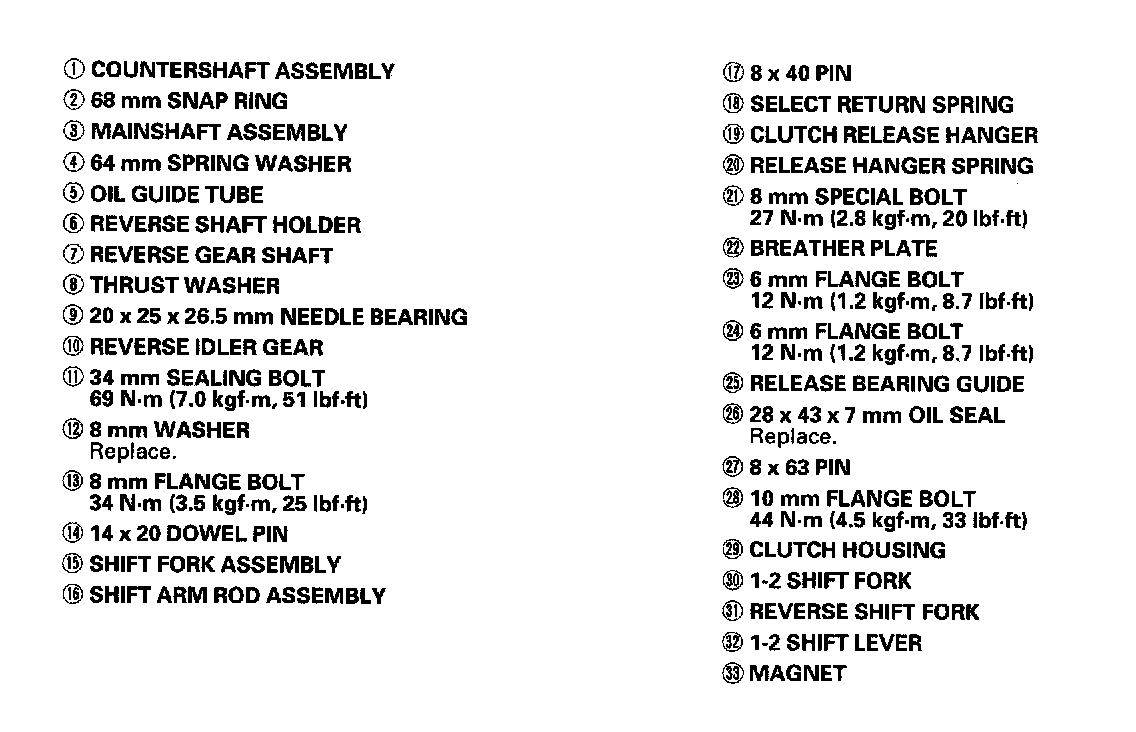

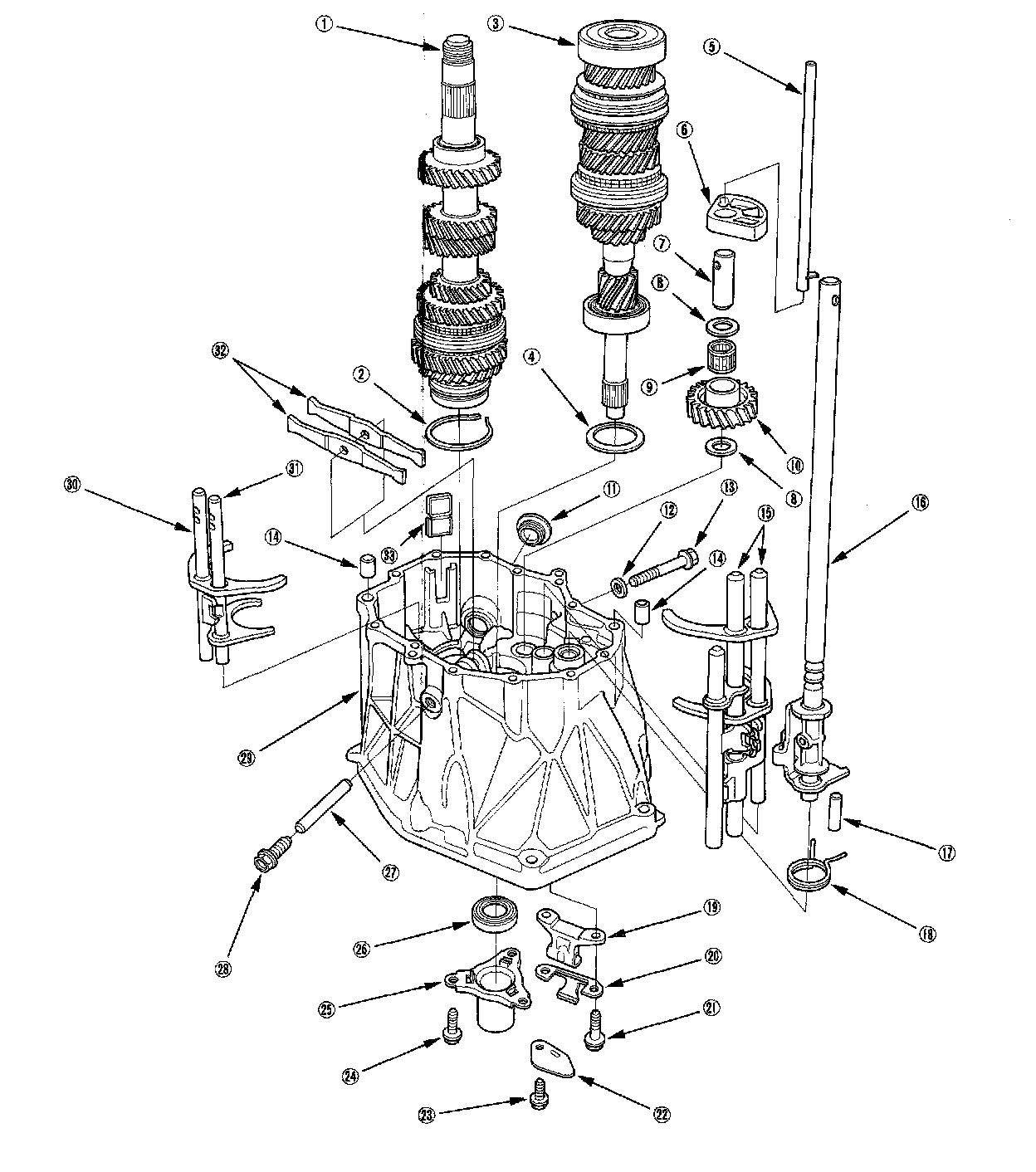

Clutch Housing
