Wheel Bearing: Specifications
Wheel Bearing
End Play
Front Wheel Bearing End Play:

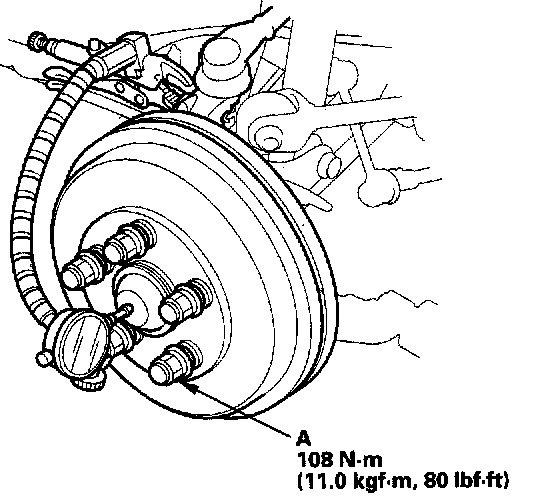

Rear Drum Wheel Bearing End Play:

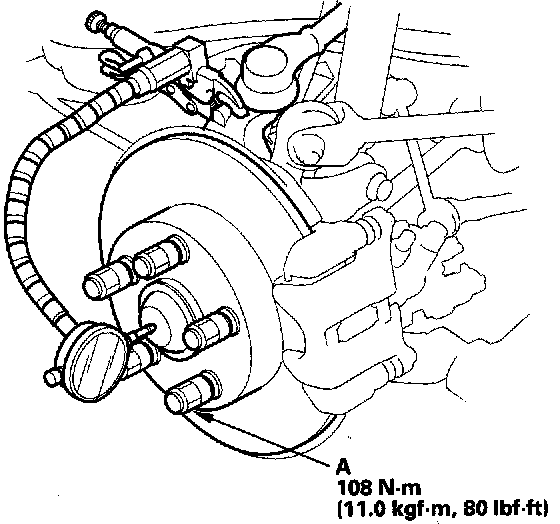

Rear Disc Wheel Bearing End Play:
Front
0-0.05 mm (0-0.002 in.)
Rear
0-0.05 mm (0-0.002 in.)
