Canister Purge Control Valve: Service and Repair

EVAP Canister Purge Valve Replacement

1. Remove the intake manifold.

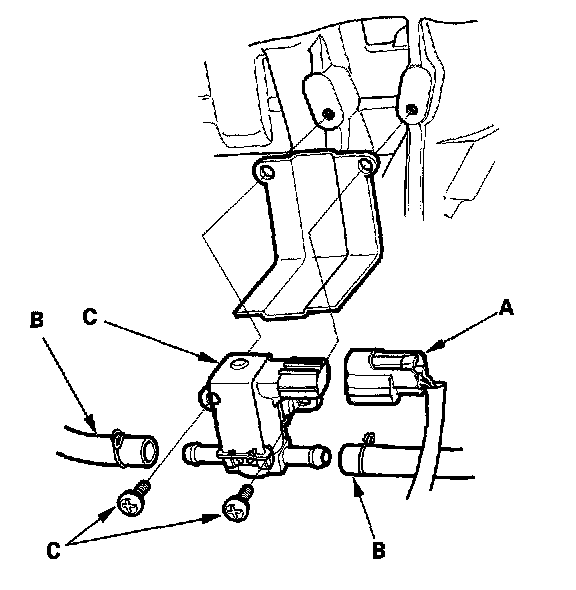

2. Disconnect the EVAP canister purge valve 2P connector (A) and vacuum hoses (B).
3. Remove the screws (C).
4. Install the valve in the reverse order of removal.
