Removal/Installation

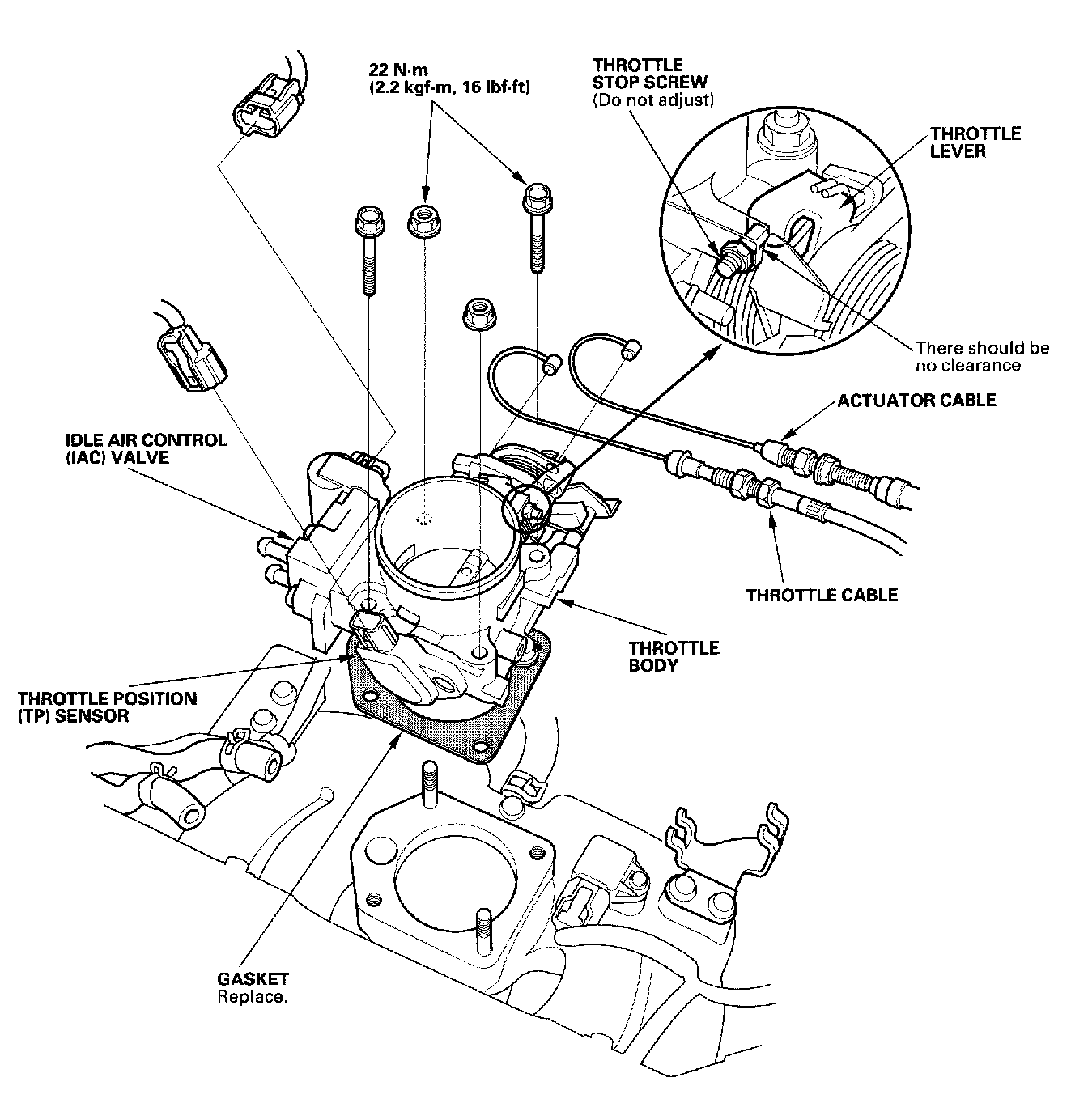

Throttle Body Removal/installation

NOTE:
- Do not adjust the throttle stop screw.
- After reassembly, adjust the actuator cable. Then adjust the throttle cable.
- The Throttle Position (TP) sensor is not removable.
