ECM Electrical Connections

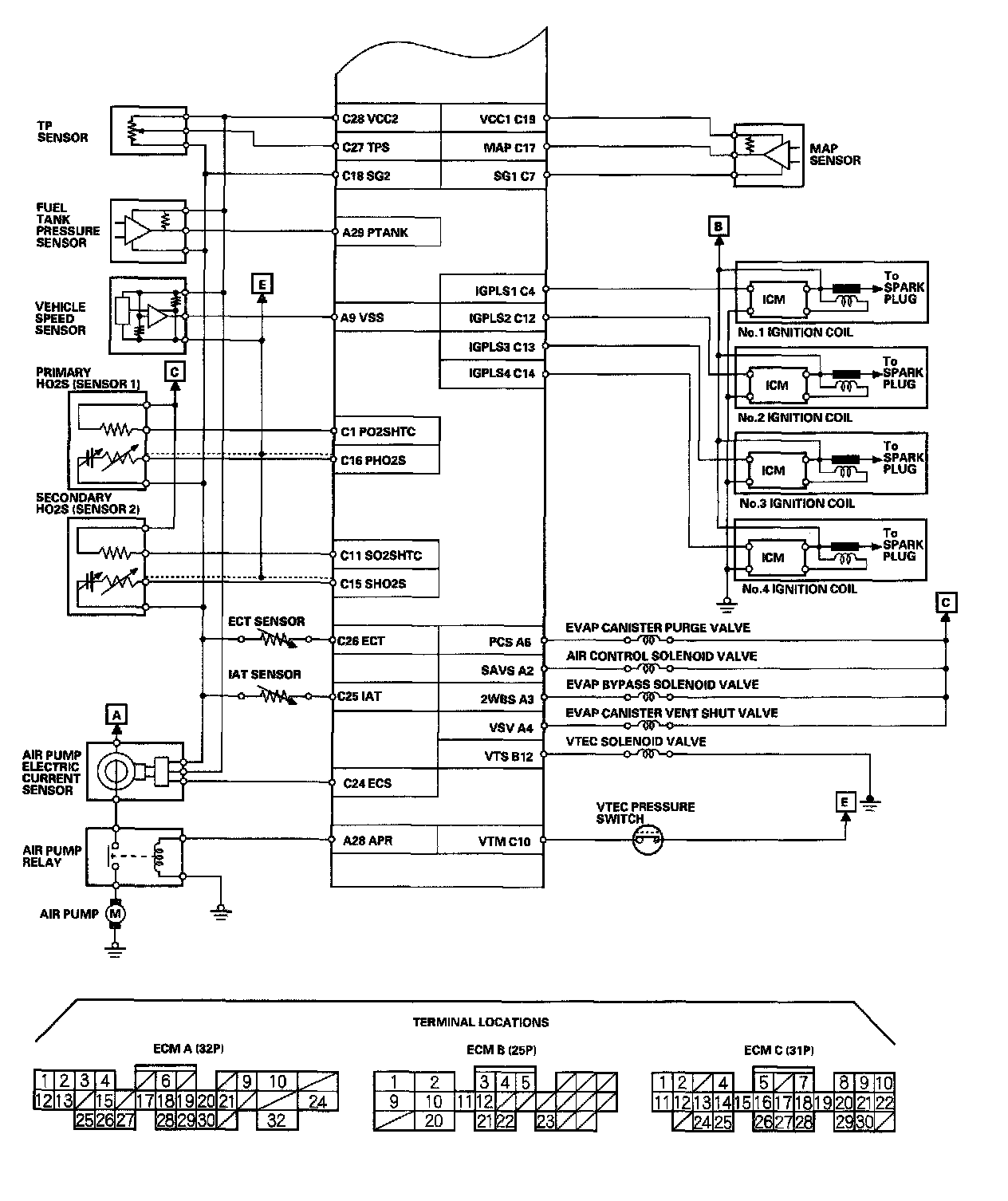

ECM Electrical Connections Diagram 11-13:

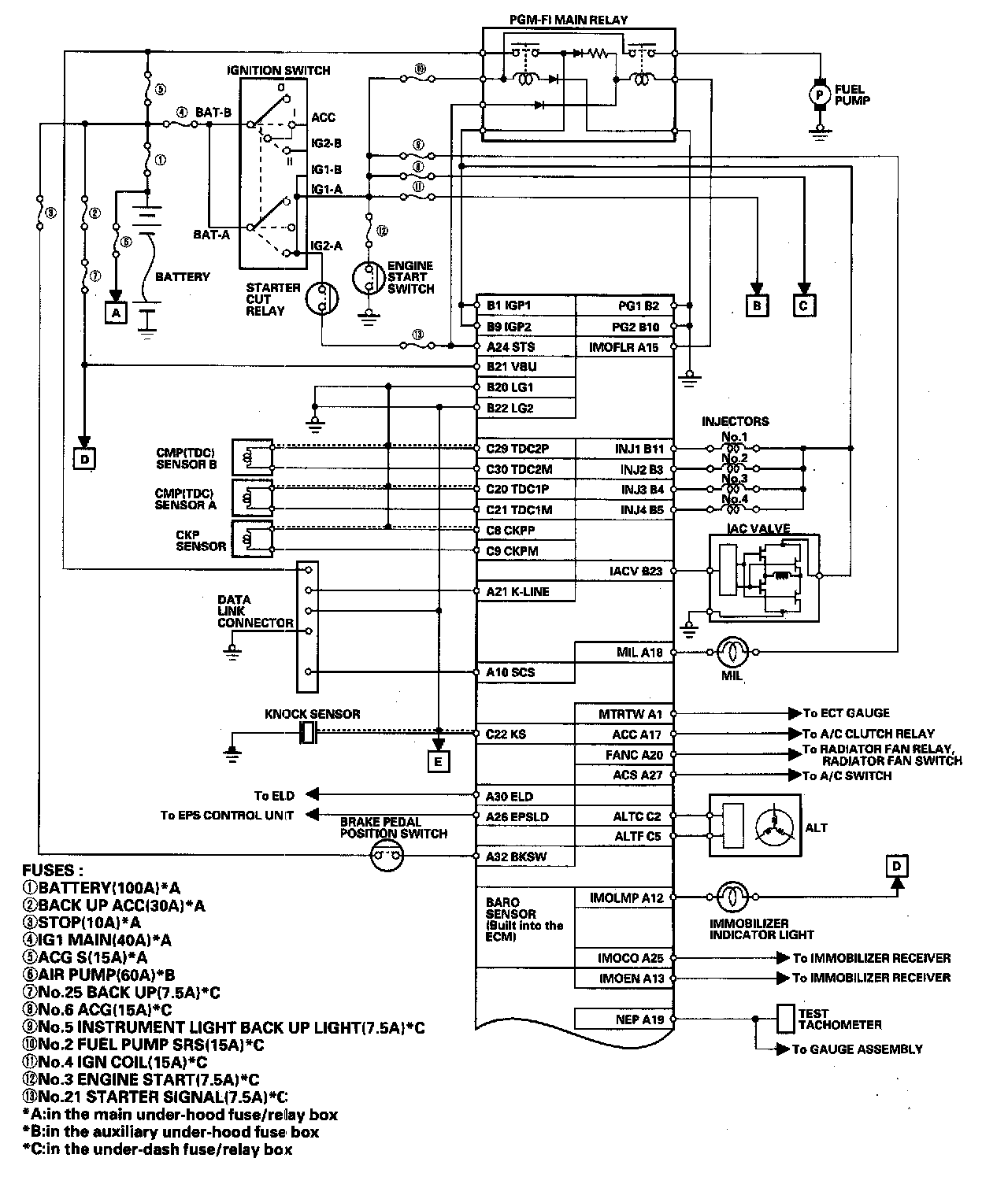

ECM Electrical Connections Diagram 11-14:
