Tweeter
Tweeter
Tweeter Replacement

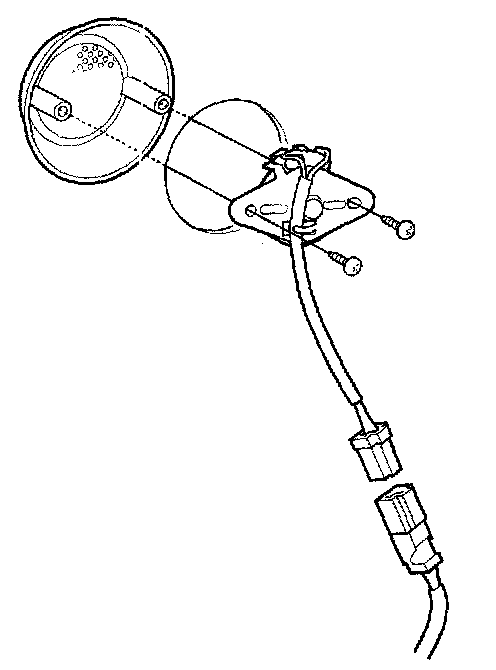

Tweeter ('02-04 models)
1.
Remove the door panel.
2.
Remove the two screws.
3.
Disconnect the 2P connector from the tweeter.
