View 276-300: 278

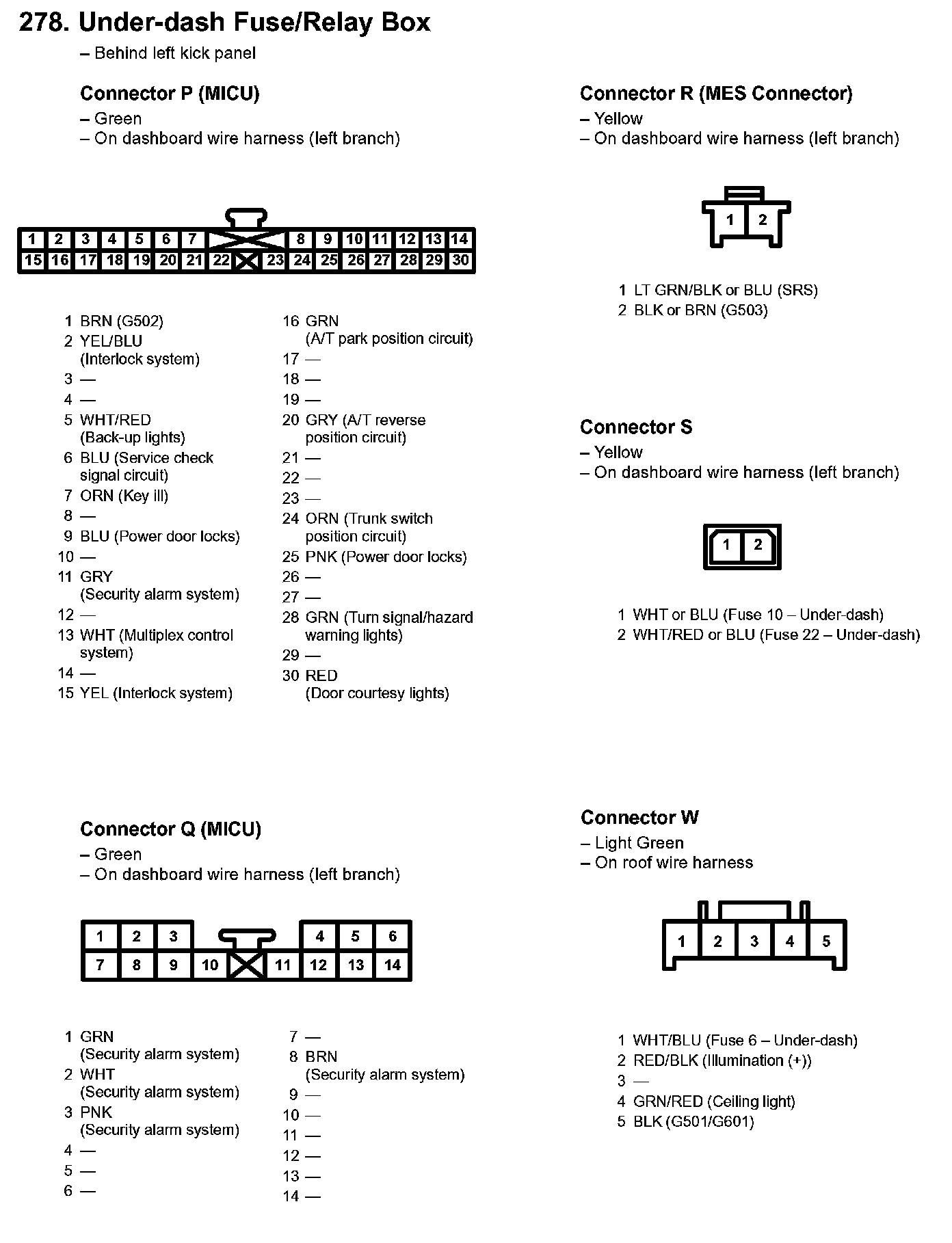

278. Under-dash Fuse/Relay Box:

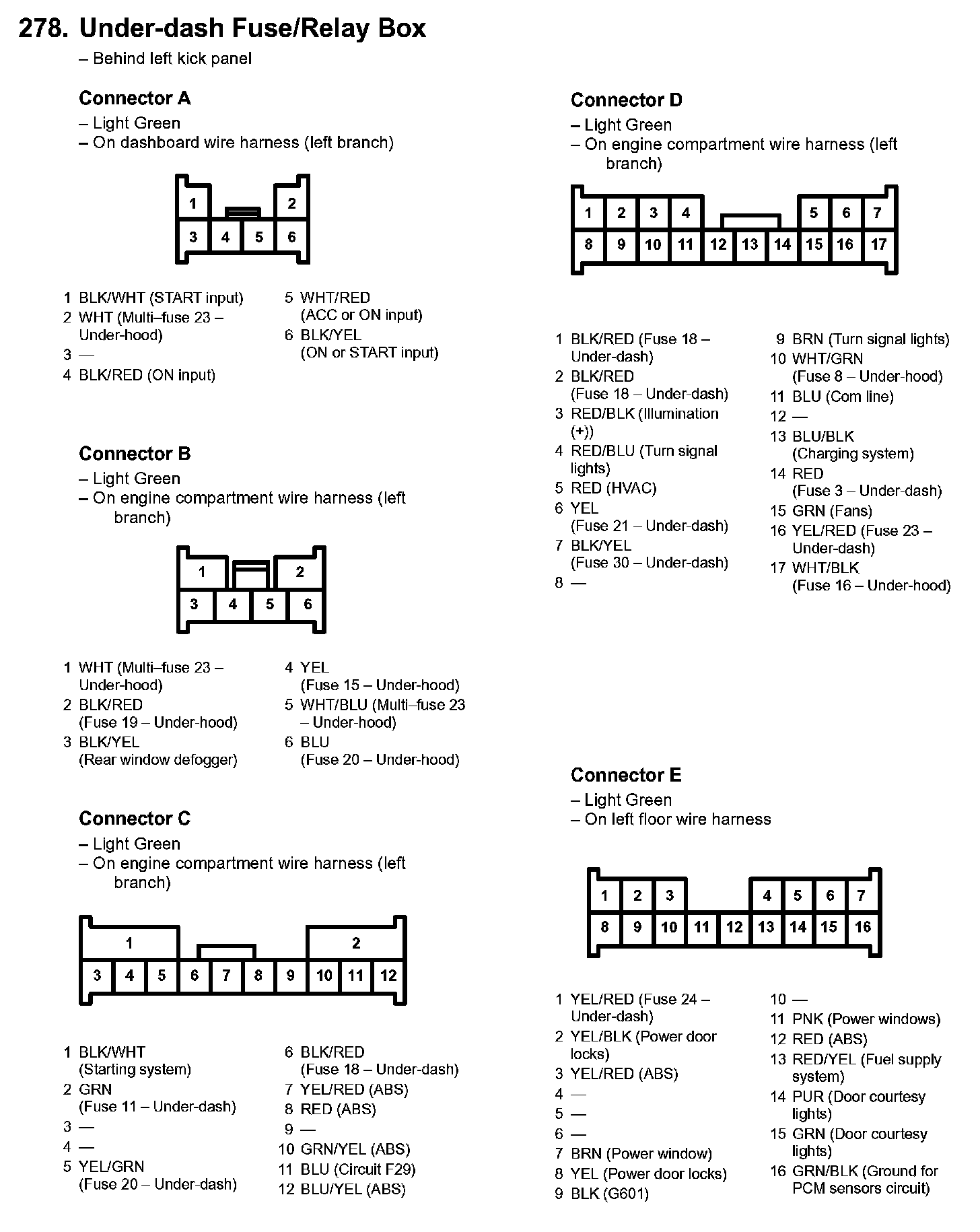

278. Under-dash Fuse/Relay Box:

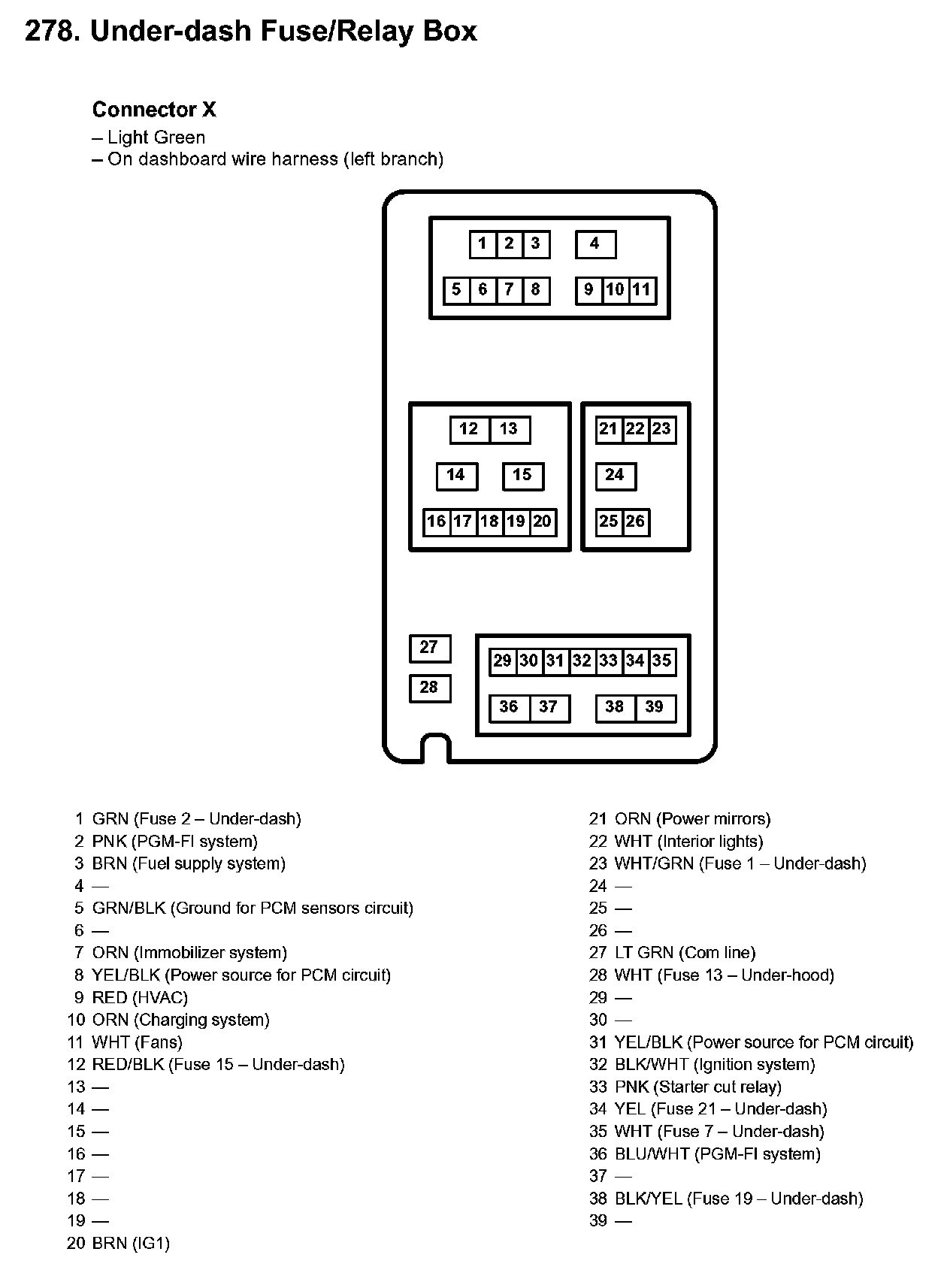

278. Under-dash Fuse/Relay Box:

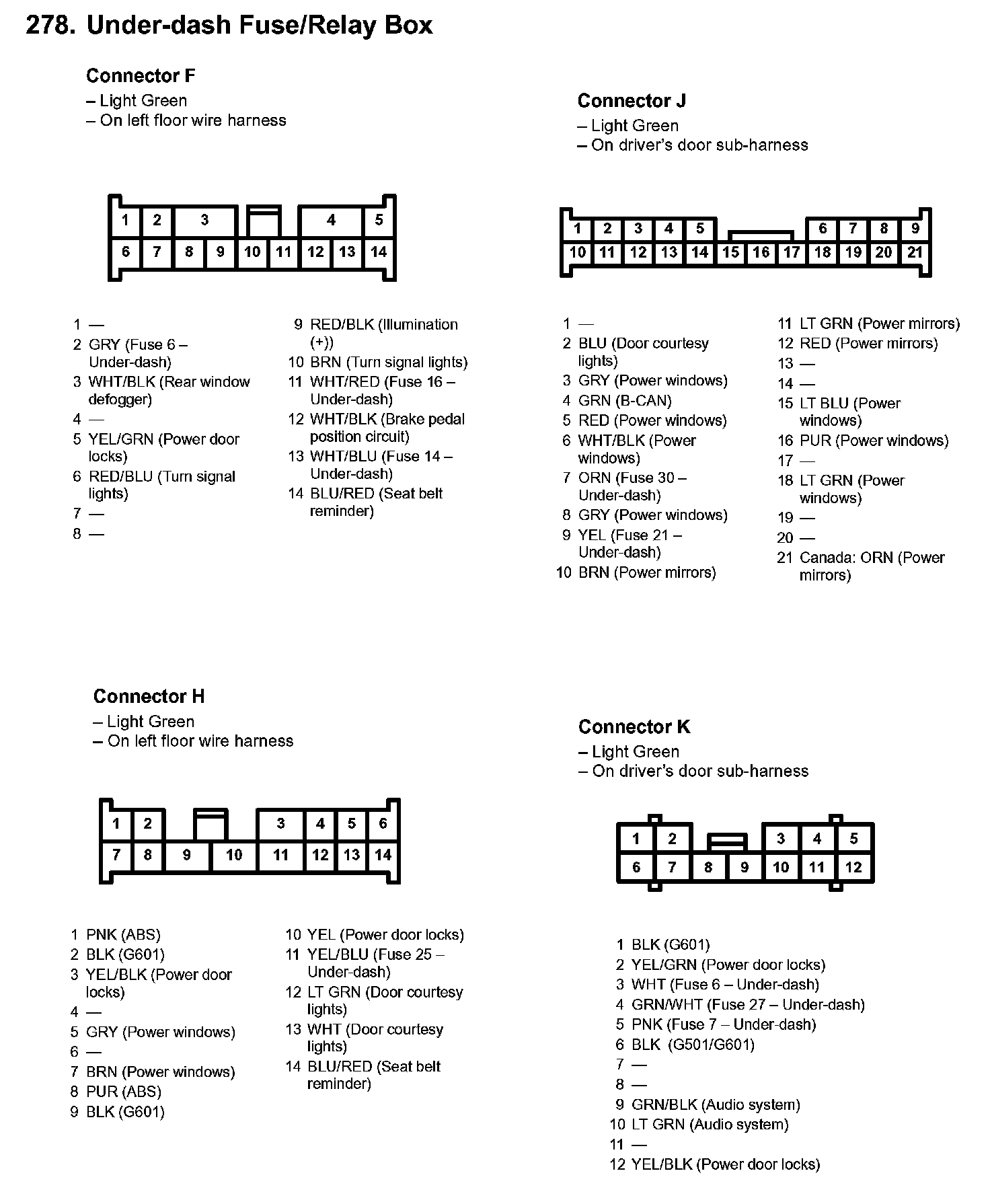

278. Under-dash Fuse/Relay Box:

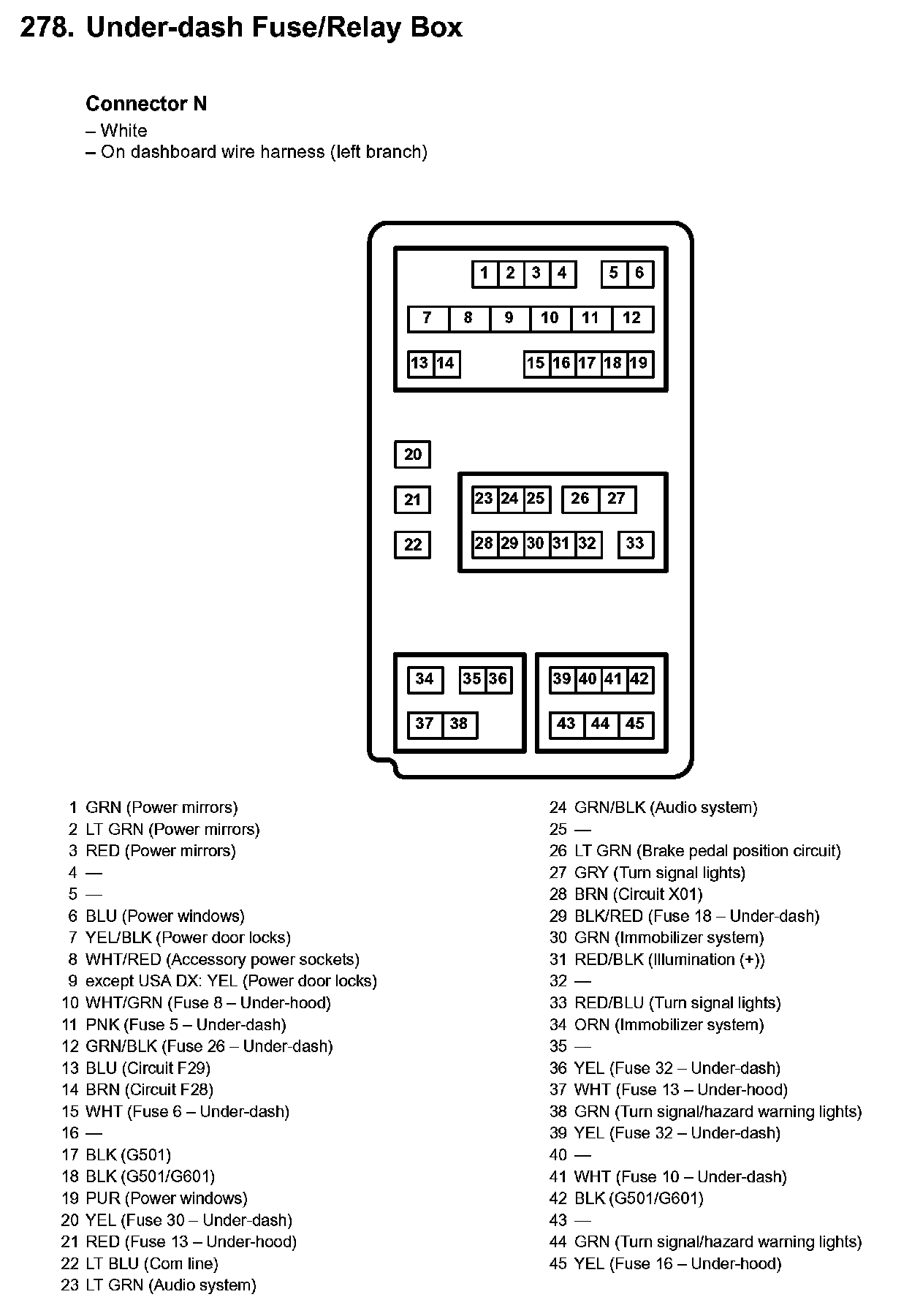

278. Under-dash Fuse/Relay Box:
