Shift Solenoid, A/T

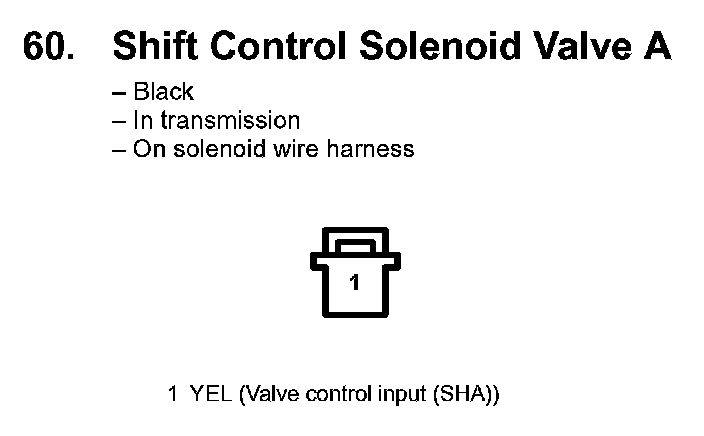

60. Shift Control Solenoid Valve A:

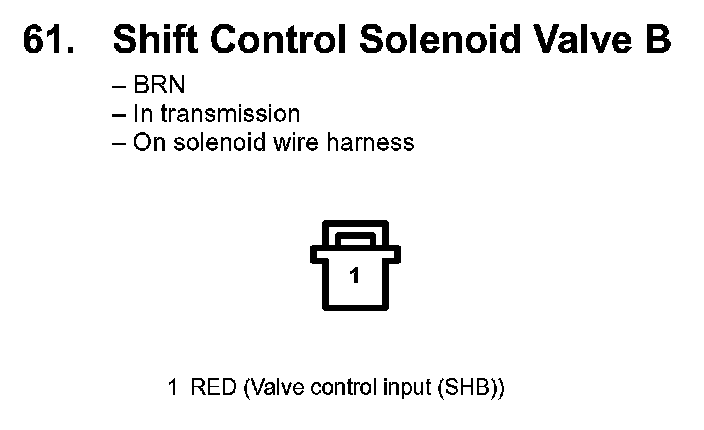

61. Shift Control Solenoid Valve B:

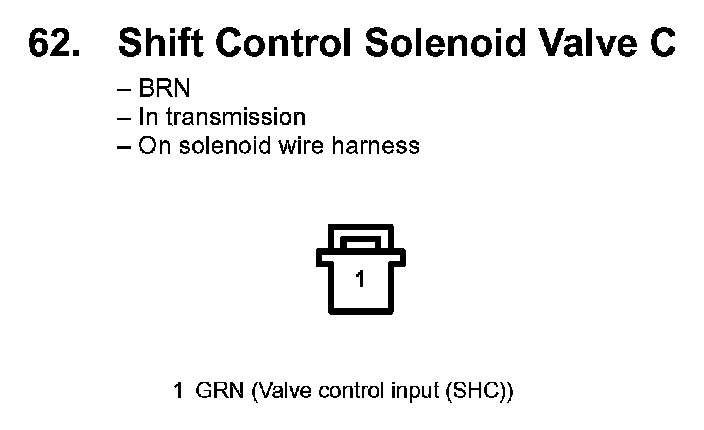

62. Shift Control Solenoid Valve C:

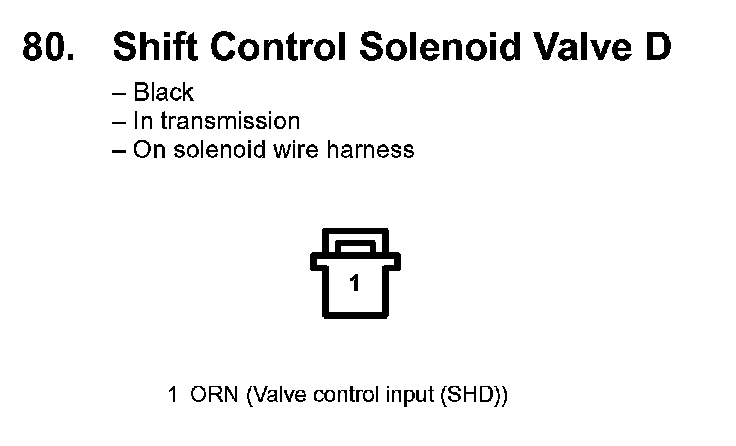

80. Shift Control Solenoid Valve D:
