Home >> Honda >> 2005 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> C554-C853 >> C558

C558

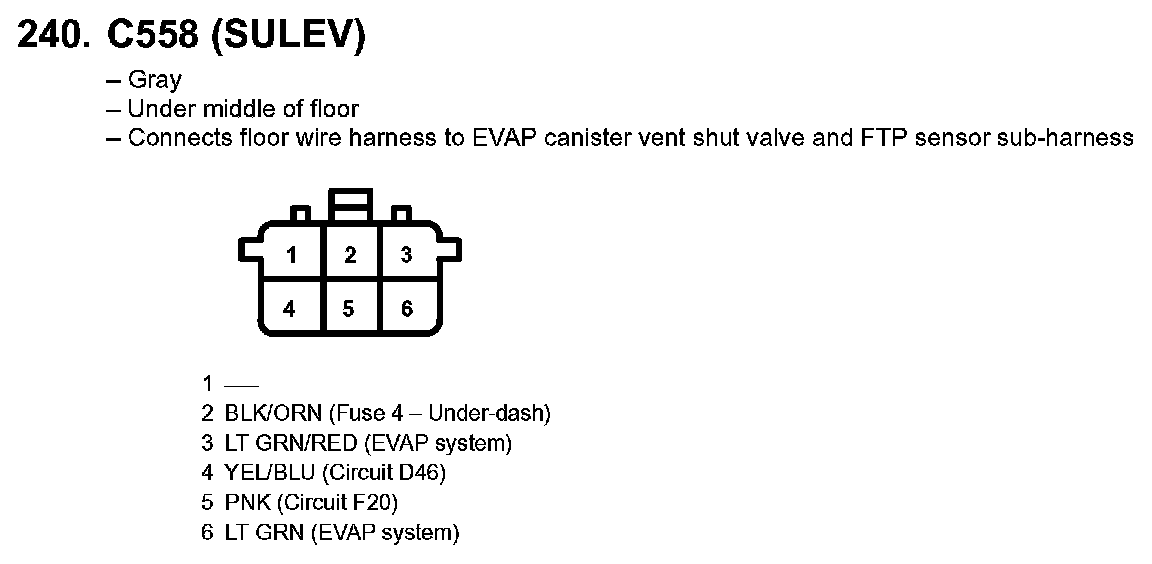

240. C558 (SULEV):
