Home
>>
Honda
>>
2005
>>
Insight L3-1.0L Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Diagrams
>>

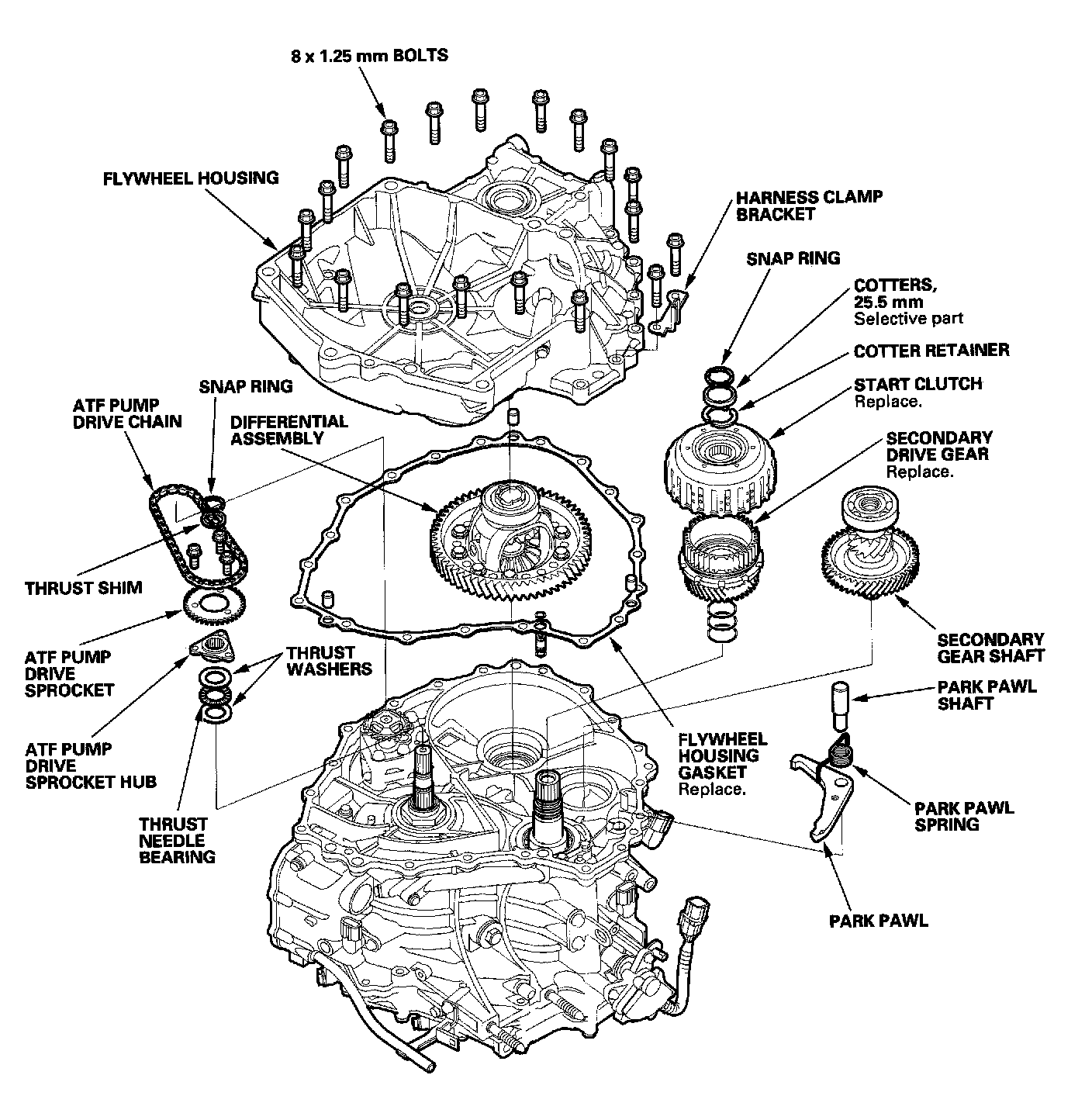

Exploded Views
>>
Transmission Housing/Flywheel Housing
Transmission Housing/Flywheel Housing
