Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 151-175 >> 163

View 151-175: 163

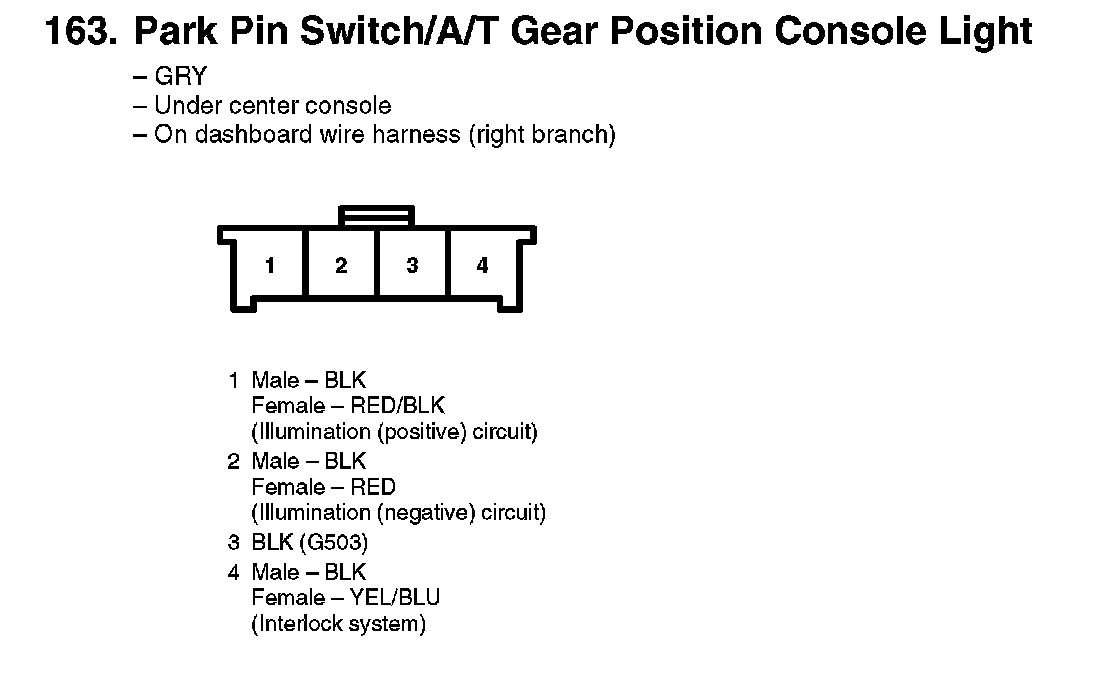

163. Park Pin Switch/A/T Gear Position Console Light:
