Home >> Honda >> 2006 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 226-250 >> 248

View 226-250: 248

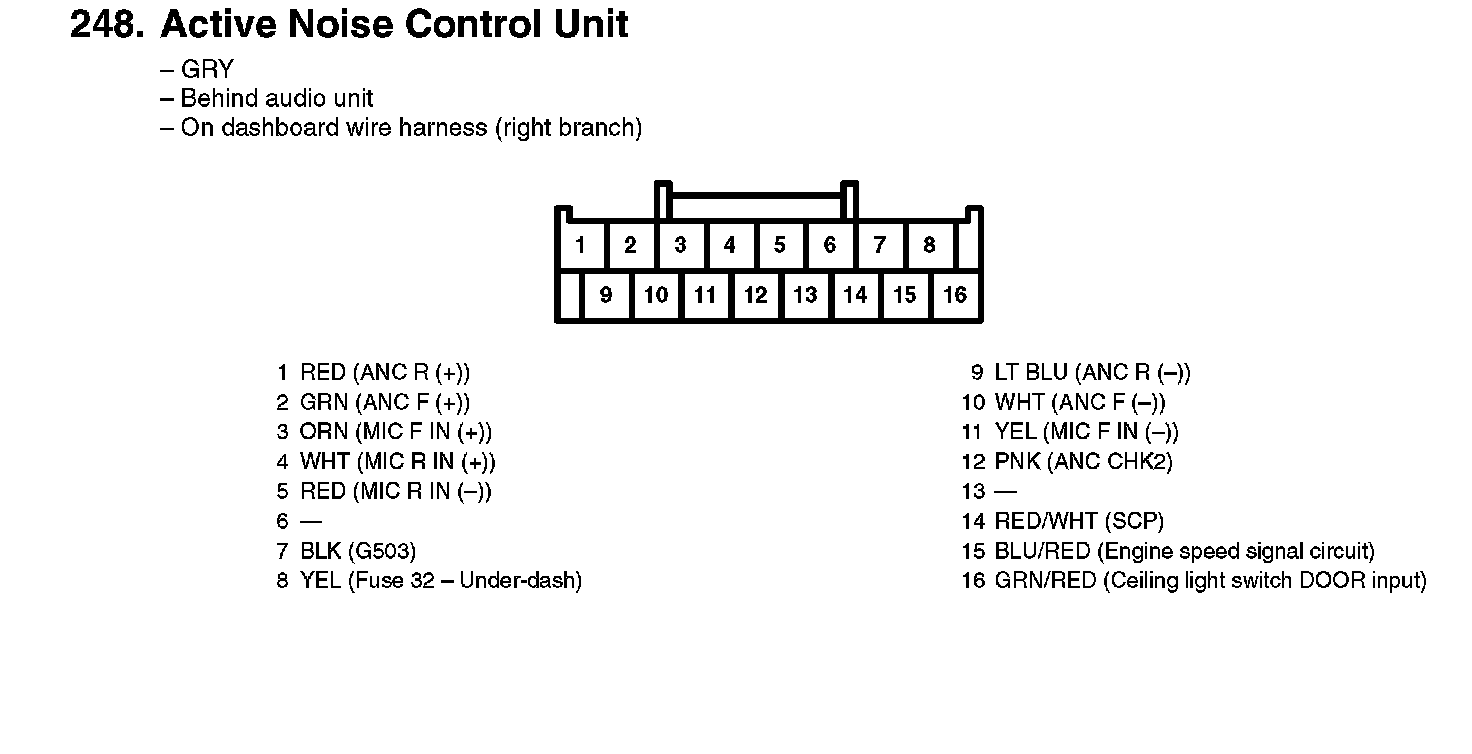

248. Active Noise Control Unit:
