Home >> Honda >> 2007 >> Accord V6-3.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Mount Control Solenoid Valve Sub-harness

Engine Mount Control Solenoid Valve Sub-harness

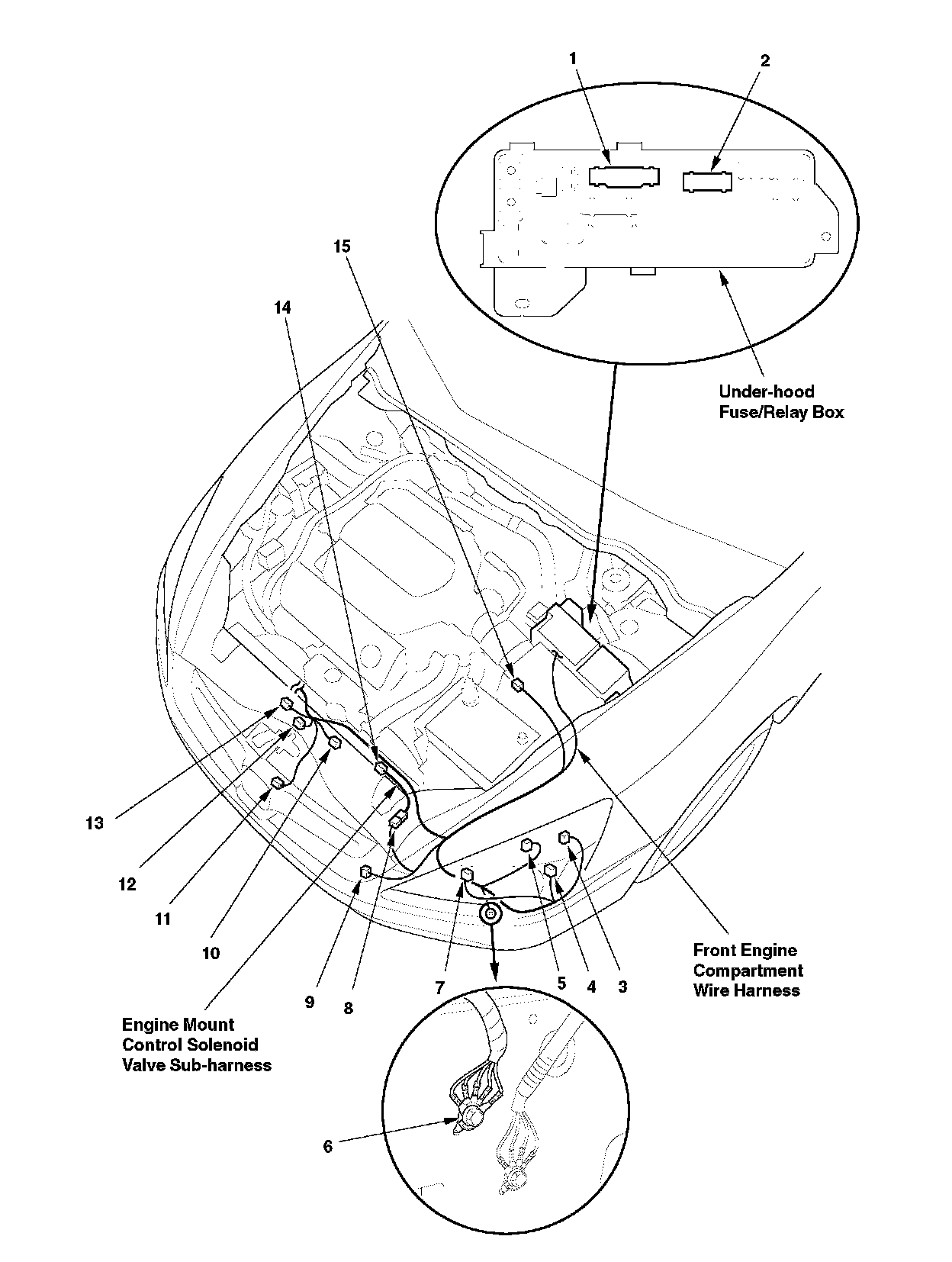

Harness Location View:

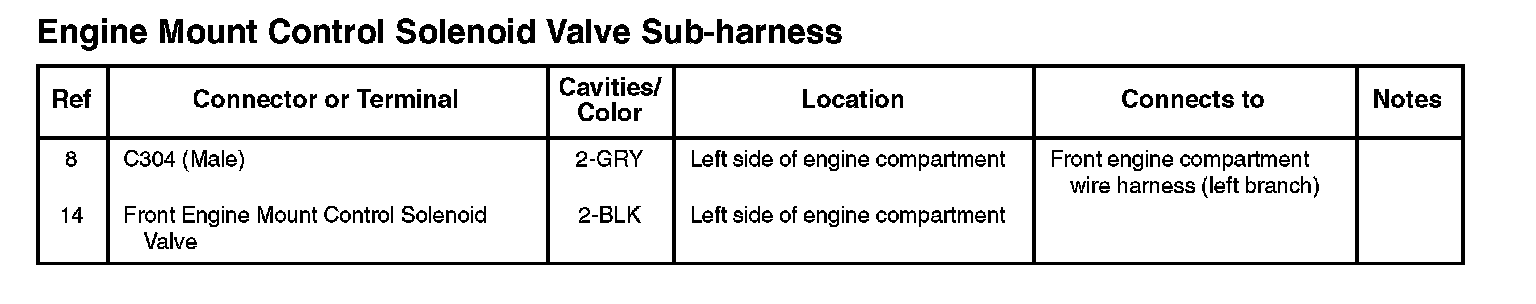

Engine Mount Control Solenoid Valve Sub-harness:
