Fail Safe Solenoid Valve: Service and Repair

Inhibitor Solenoid Replacement
1. Remove the lower valve body.

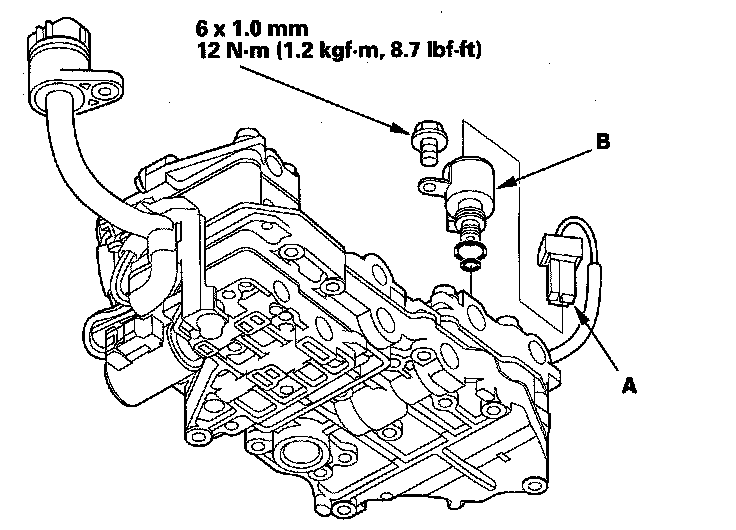

2. Disconnect the inhibitor solenoid connector (A).





3. Remove the inhibitor solenoid (B).
4. Install the new inhibitor solenoid on the CVT pulley pressure control valve.
5. Connect the inhibitor solenoid connector.
6. Install the lower valve body.
