Front Grille Replacement

Front Grille Replacement

'09 Model

NOTE: Take care not to scratch the bumper and grille.

1. Remove the front bumper. Service and Repair

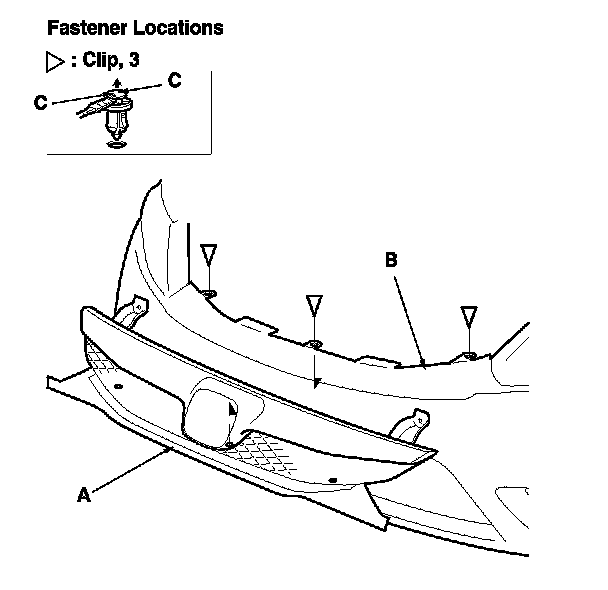

2. Remove the clips, then remove the front grille (A) from the front bumper (B).
NOTE: To release the clips, pry up on the center pin at the notch (C).

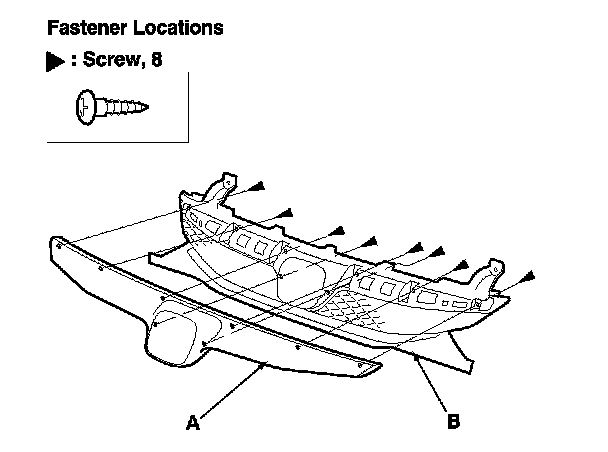

3. Remove the screws, then separate the front grille molding (A) and the front grille base (B).

4. Replace the emblem, if necessary. Service and Repair

5. Install the grille in the reverse order of removal.
