Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

1. Remove the right inner fender. Front Inner Fender Replacement

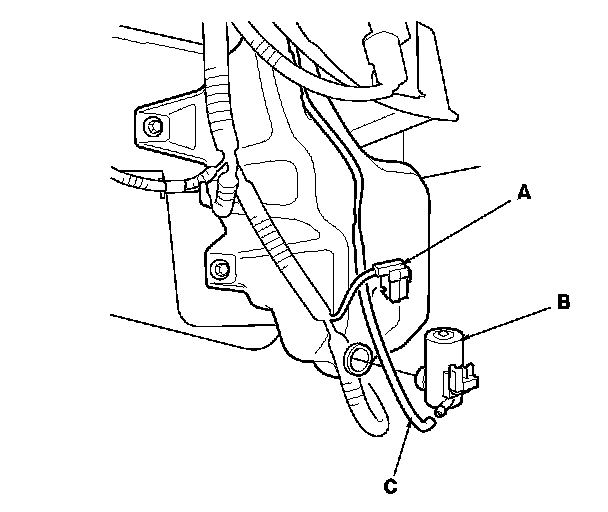

2. Disconnect the 2P connector(s) (A) from the windshield washer motor (B) and the washer fluid level switch*.
*: Canada models

3. Disconnect the windshield washer tube (C) from the washer motor.

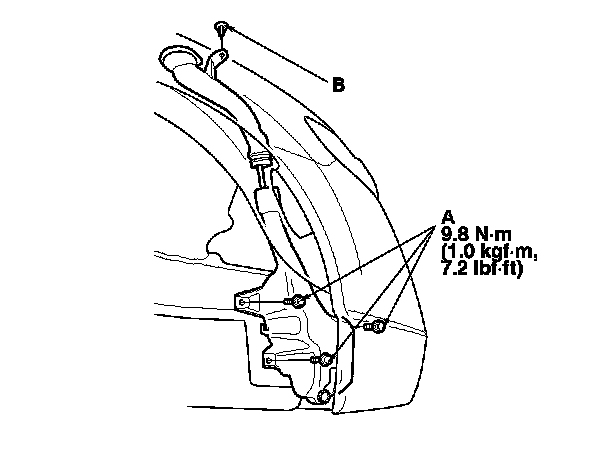

4. Remove the bolts (A) and the clip (B), then remove the washer reservoir.





5. Install the washer reservoir in the reverse order of removal.
