Differential Vent Box: Service and Repair

Rear Differential Breather Box and Hose Replacement

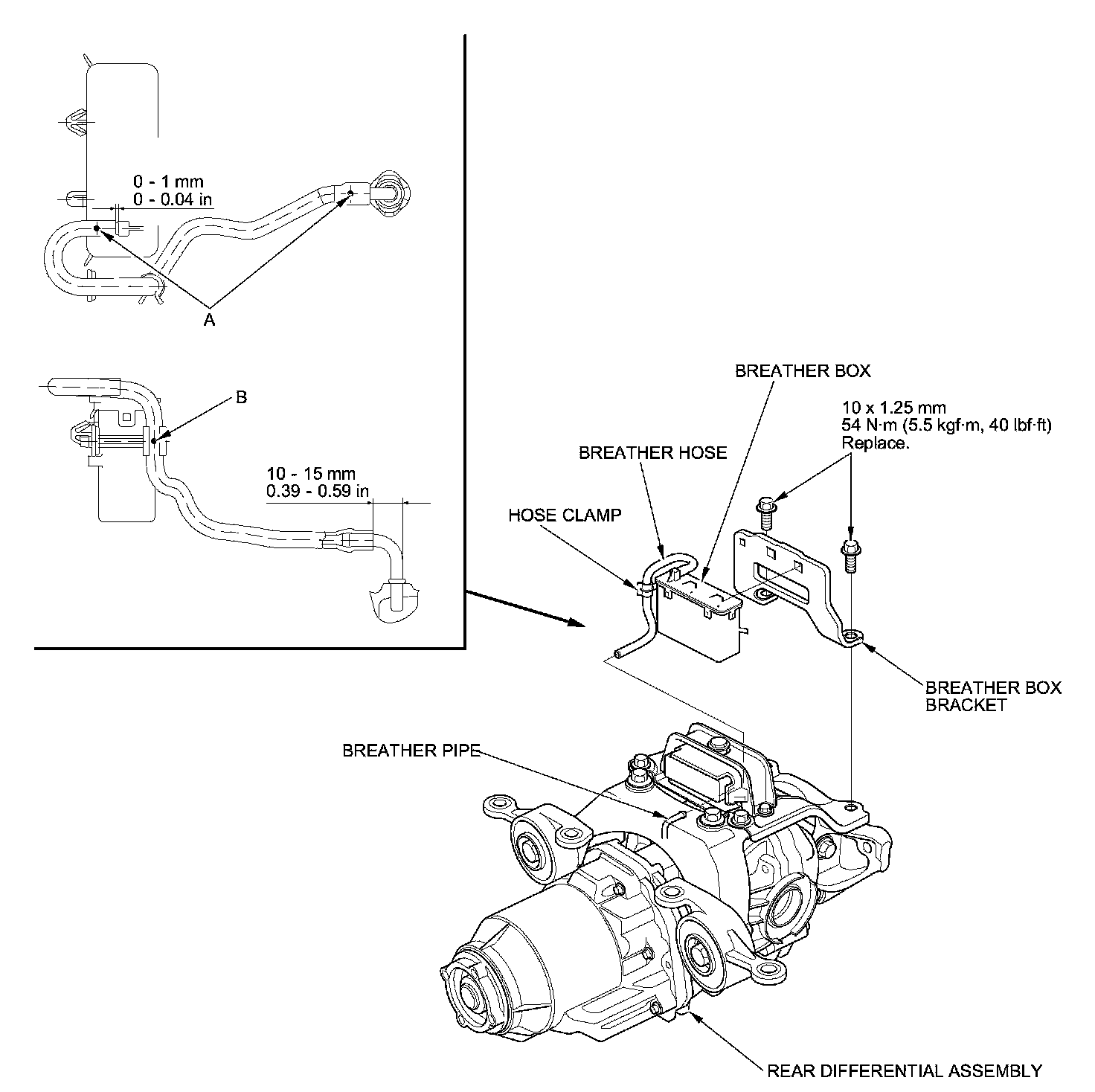

Exploded View





NOTE:

- When installing the breather hose, align the dot marks (A) to the upper side marking sure the hose is not twisted or pinched.
- Secure the breather hose on its clamp, and align the dot mark (B) to the passenger's side.
