Driver's Door Wire Harness
Driver's Door Wire Harness

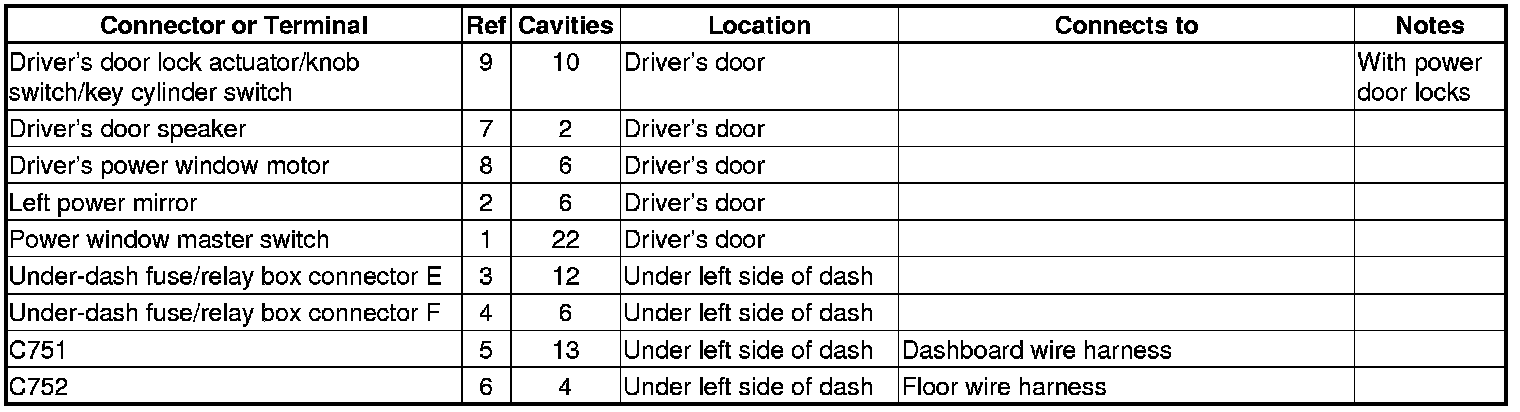

Connector and Harness Locations
Driver's Door Wire Harness

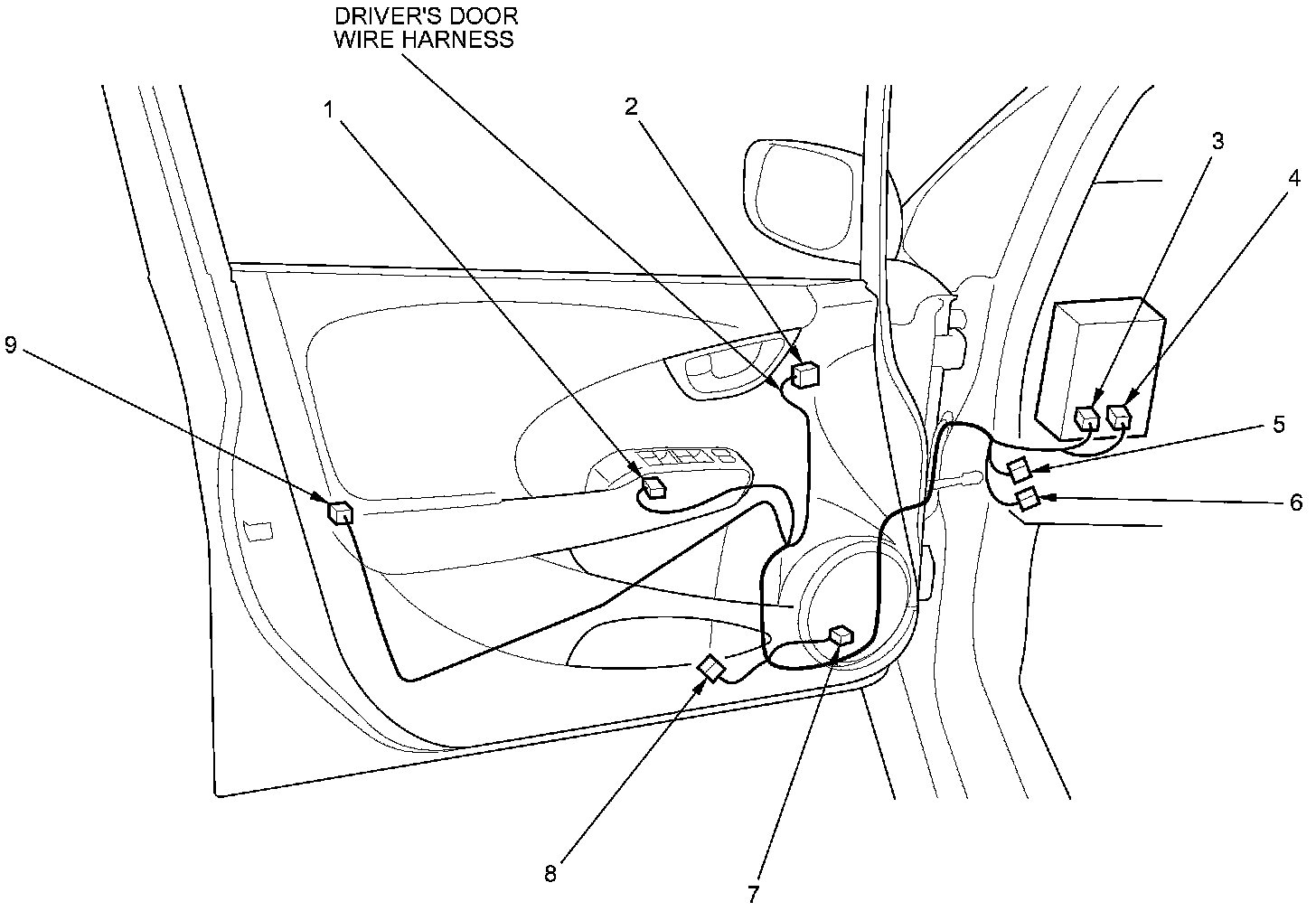

Harness View
